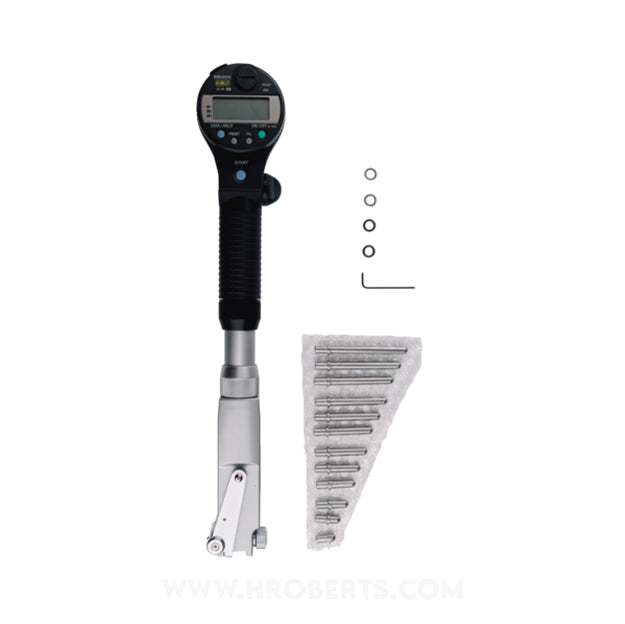

Mitutoyo 511-522 Digimatic Digital Bore Gauge, Range 4-6.5" / 101.6-165.1mm, Resolution 0.0005" / 0.001mm Probe Depth 6" / 150mm with Absolute and SPC Data Output
SKU:Code: 511-522
Sale
Sold out
Regular price
£1,162.50
Save: 25%
Sold out
Sale price
£1,162.50
Regular price
£1,550.00
Excl. VAT
A cylinder bore gauge is a precision measuring instrument used to measure the inner diameter or bore of a cylindrical hole, typically in an engine cylinder or other machinery where precise measurements of internal diameters are critical.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Cylinder Bore Gauges
- range 4-6.5" / 101.6-165.1mm
- display type Digital
- graduations 0.0005" / 0.001mm
- accuracy 3 μm / 0.00012"
- data output Yes
- measuring force 5 N or less
- measuring units Imperial / Metric
- probe depth 6" / 150mm
- repeatability 2 μm / 0.00008"
- dial indicator -
- anvil 13
- brand Mitutoyo
description
description
A Mitutoyo ABSOLUTE Digimatic bore gauge designed exclusively for ID measurement. A minimum value holding function provides easy measurement of hole diameter. Up to three sets of master value and upper/lower tolerance values can be memorized and recalled at the push of a button. An analog bar indicator is integrated to enhance ease of reading, especially for GO/å±NG judgement. Measurements can be made inside very deep holes by using up to four extension rods
