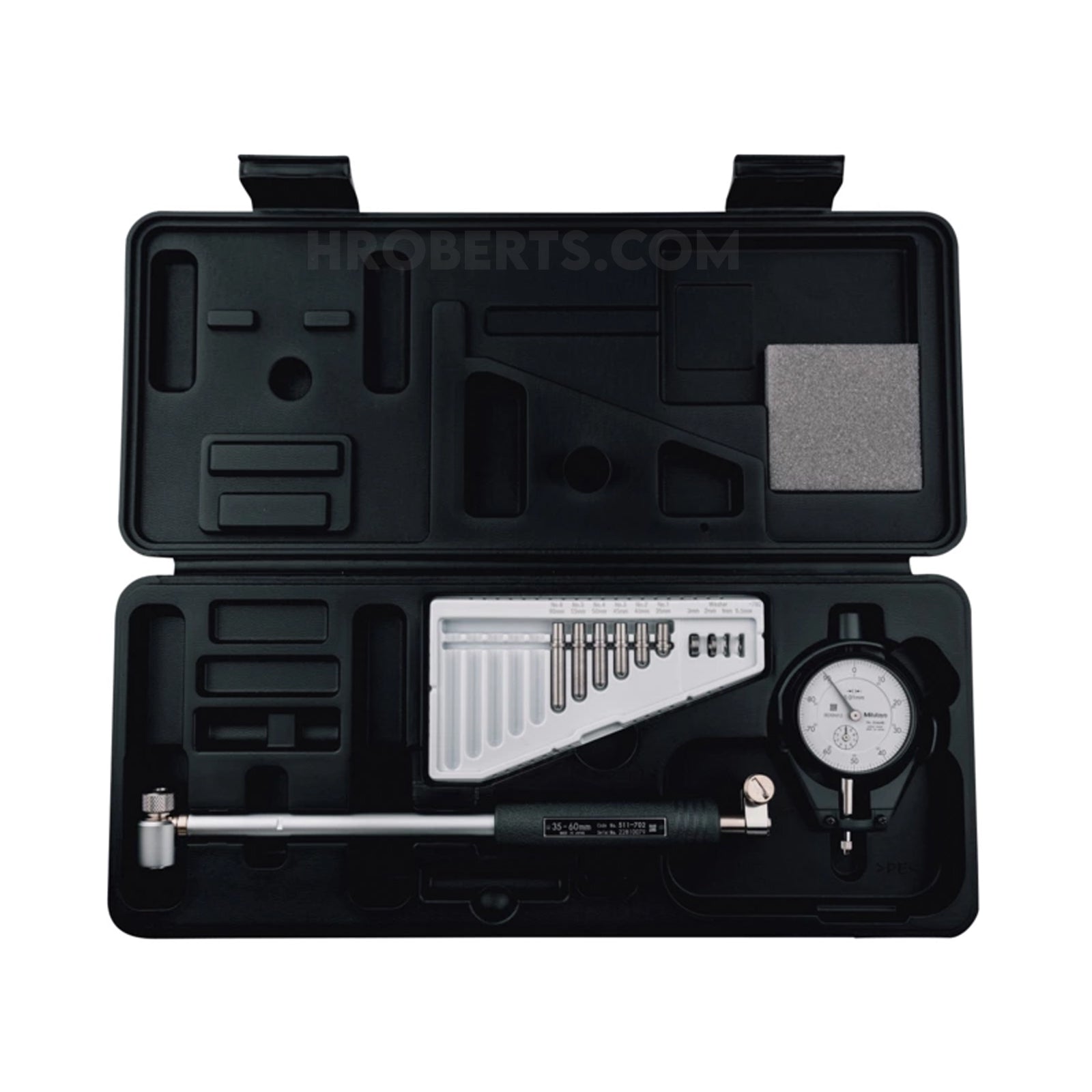

511-712-20 Bore Gauge, Range 35-60mm, Graduation 0.01mm, Probe Depth 150mm
SKU:Code: 511-712-20
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Cylinder Bore Gauges
- range 35-60mm
- display type Non-Digital
- graduations 0.01mm
- measuring force 4 N or less
- measuring units Metric
- probe depth 150mm
- dial indicator 2046AB
- anvil 6
Now offers a longer plunger stroke while maintaining original accuracy. Carbide is used for the contact point ensuring high durability and wear resistance. This model reduces the influence of heat from the operator's hand by 50% by increasing the grip size
and making the grip hollow-structured, thereby retaining high-accuracy measurement. Interchangeable washers 0.5 mm thick are supplied as standard accessories to enable setting in small steps. Optional extension rods can be attached for measuring deep holes
An optional inside-length standard, such as a setting ring or Inside Micro Checker is required for accurately setting the gauge before measurement.
