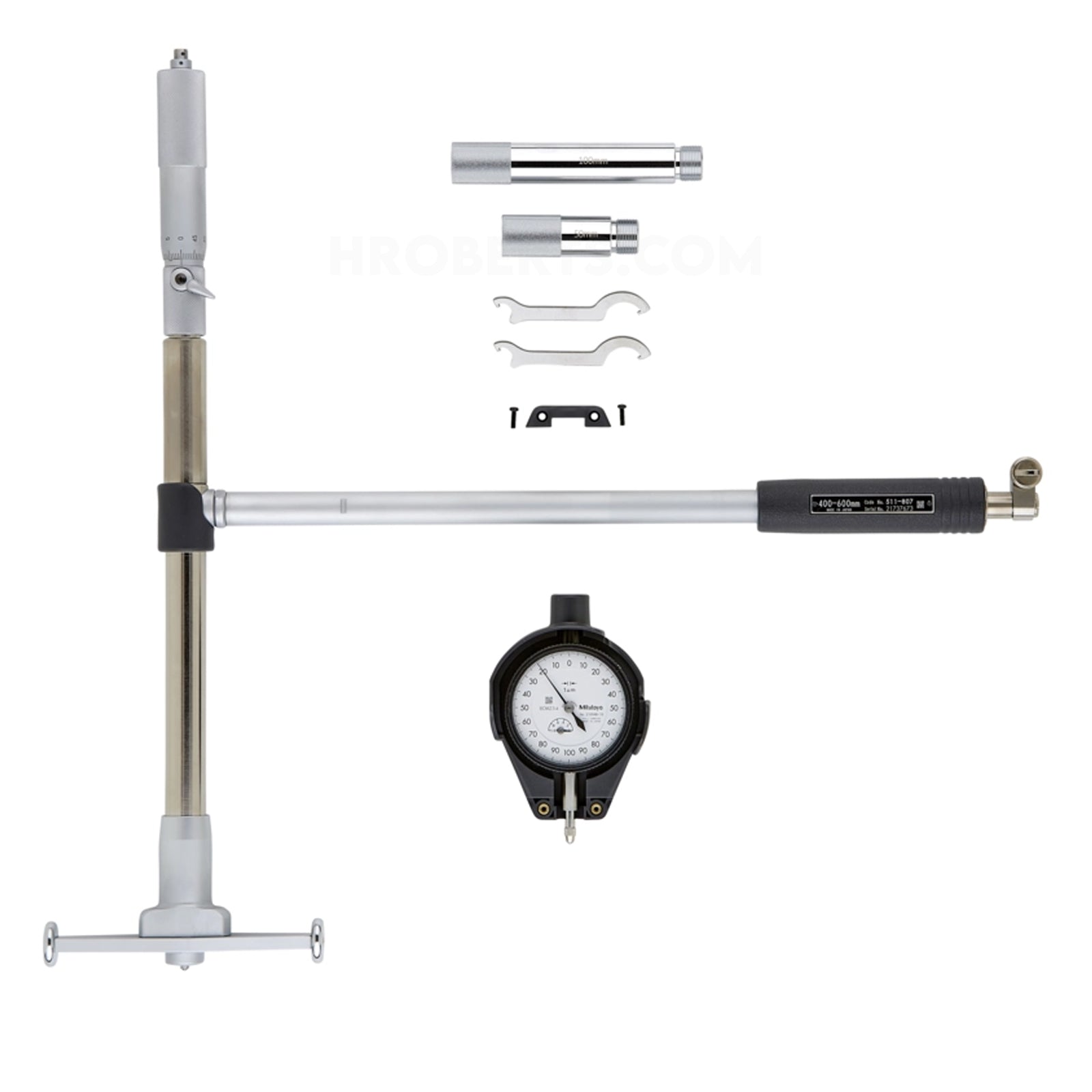

Mitutoyo 511-827-20 Micrometer Head Bore Gauge, Range 400-600mm, Graduation 0.001mm, Probe Depth 250mm
SKU:Code: 511-827-20
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Cylinder Bore Gauges
- range 400-600mm
- display type Non-Digital
- graduations 0.001mm
- measuring force 6 N or less
- measuring units Metric
- probe depth 250mm
- dial indicator 2109AB-10
- anvil Sub Anvils = 2
- brand Mitutoyo
Micrometer head is attached to the anvil for convenient and accurate dimensional setting. Now offers a longer plunger stroke while maintaining original accuracy. Carbide is used for the contact point ensuring high durability and wear resistance. High-accuracy measurement is aided by a large grip with a sponge-like structure that reduces heat transfer from the operator’s hand by 50%. Wide measuring range with sub-anvils. Optional extension rods can be attached for measuring deep holes. An optional inside-length standard, such as a setting ring or Inside Micro Checker is required for accurately setting the gauge before measurement.
