Mitutoyo

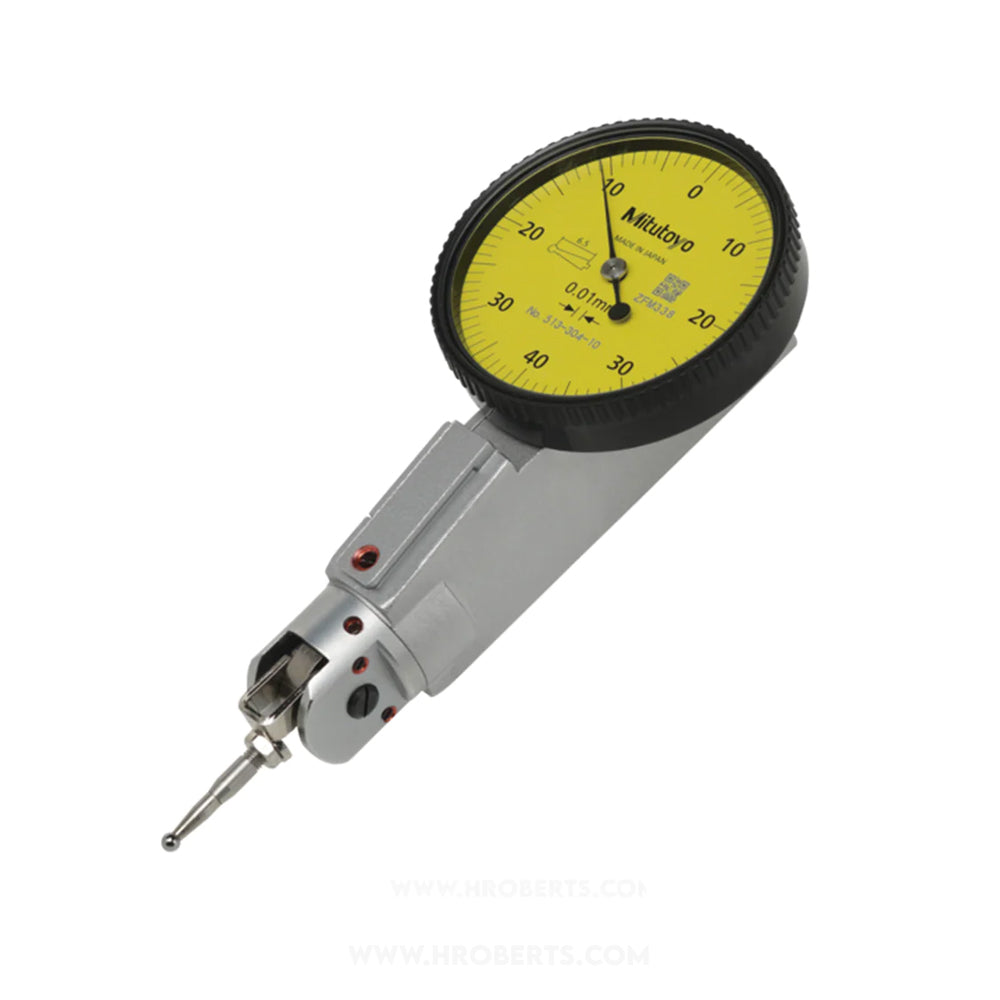

513-304-10T Lever Dial Indicator Universal Type, Graduation 0.01mm, Range 0.8mm, Scale 0-40-0, Stylus Length 6.5mm, Bezel Diameter 40mm
SKU:Code: 513-304-10T
Sale
Sold out
Regular price
£330.00
Save: 25%
Sold out
Sale price
£330.00
Regular price
£440.00
Excl. VAT
Full Set: Supplied with box, 902804 8mm, 902802 4mm dia stem, 102824 1mm, 102825 2mm, 102826 3mm dia stylus, 900321 swivel clamp, Spanner 102037 and 900209 holding bar
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Horizontal Type
- range 0.8mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 40mm
- measuring force 0.3 N or Less
- measuring units Metric
- scale 0-40-0
- contact point thread M1.4x0.30
- repeatability limit 3 µm
description
description
Universal application to all directions. (Not only the direction of the contact point, but also the direction of measurement itself can be adjusted 360 degrees without moving the indicator.)
