Mitutoyo

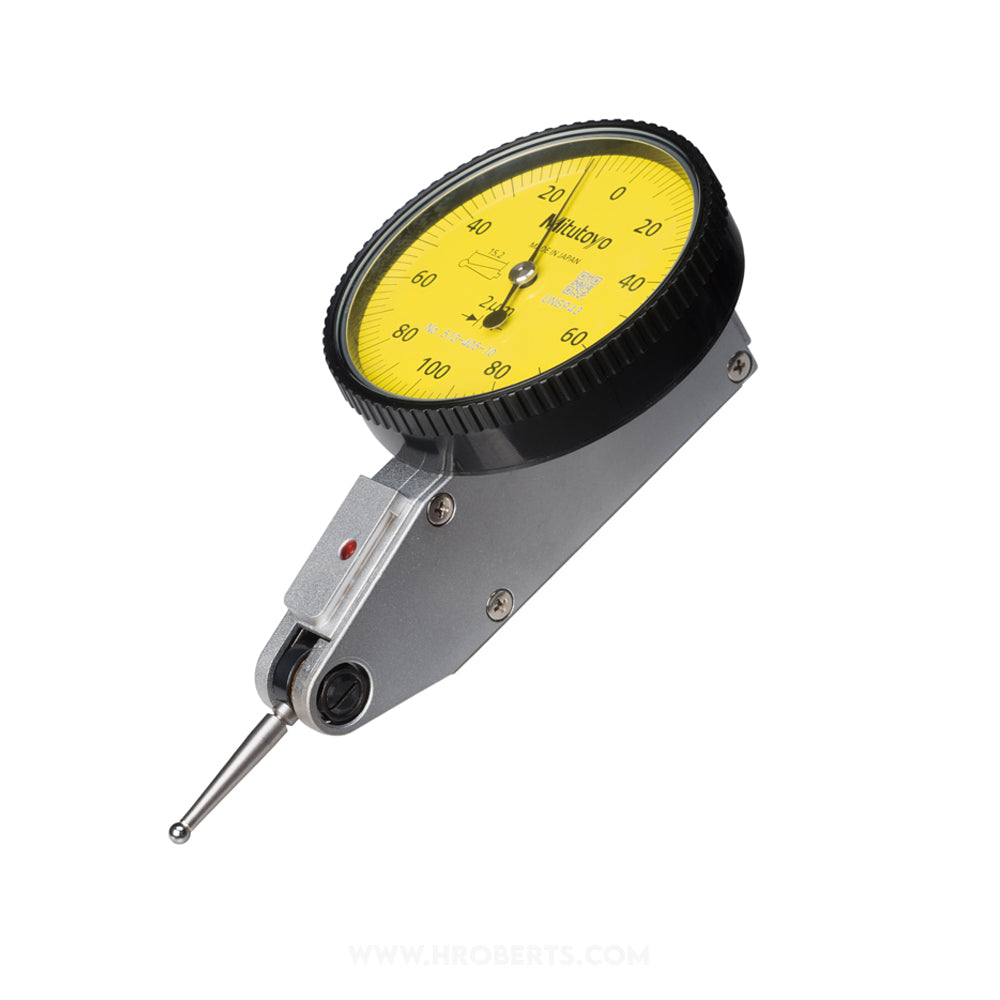

513-405-10T Lever Dial Indicator Horizontal Type, Graduation 0.002mm, Range 0.2mm, Scale 0-100-0, Stylus Length 15.2mm, Bezel Diameter 40mm
SKU:Code: 513-405-10T
Sale
Sold out
Regular price
£113.25
Save: 25%
Sold out
Sale price
£113.25
Regular price
£151.00
Excl. VAT
Full Set: Supplied with box, 902804 8mm, 902802 4mm dia stem, 131314 1mm, 103011 2mm, 131315 3mm dia stylus, 900321 swivel clamp and 900209 holding bar
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Horizontal Type
- range 0.2mm
- display type Non-Digital
- graduations 0.002mm
- bezel dia 40mm
- measuring force 0.3 N or Less
- measuring units Metric
- scale 0-100-0
- contact point thread M1.7x0.35
description
description
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.
