Mitutoyo

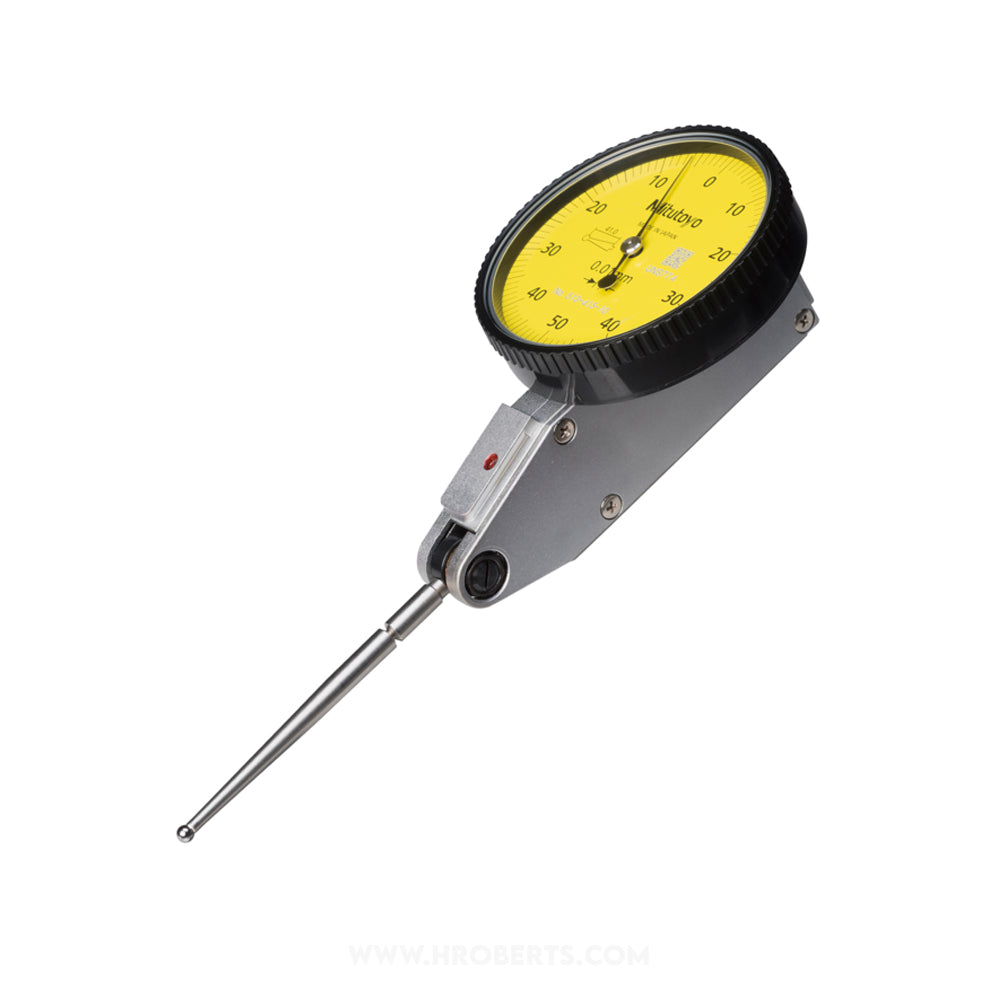

513-415-10E Lever Dial Indicator Horizontal Type, Graduation 0.01mm, Range 1mm, Scale 0-50-0, Stylus Length 41mm, Bezel Diameter 40mm
SKU:Code: 513-415-10E
Sale
Sold out
Regular price
£96.00
Save: 25%
Sold out
Sale price
£96.00
Regular price
£128.00
Excl. VAT
Basic Set: Supplied with box, 902804 8mm dia stem and 136013 stylus 2mm dia
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Horizontal Type
- range 1.0mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 40mm
- measuring force 0.2 N or Less
- measuring units Metric
- scale 0-50-0
- contact point thread M1.7x0.35
description
description
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

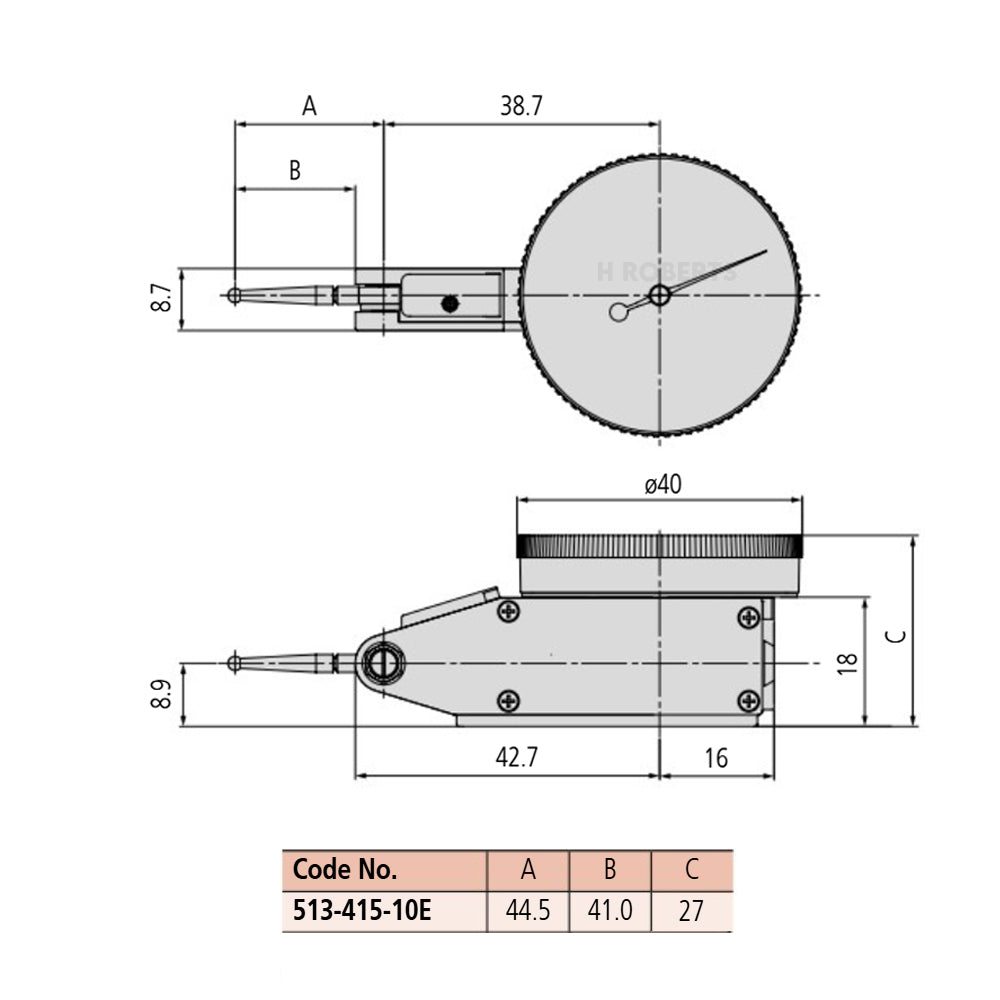

technical drawings
