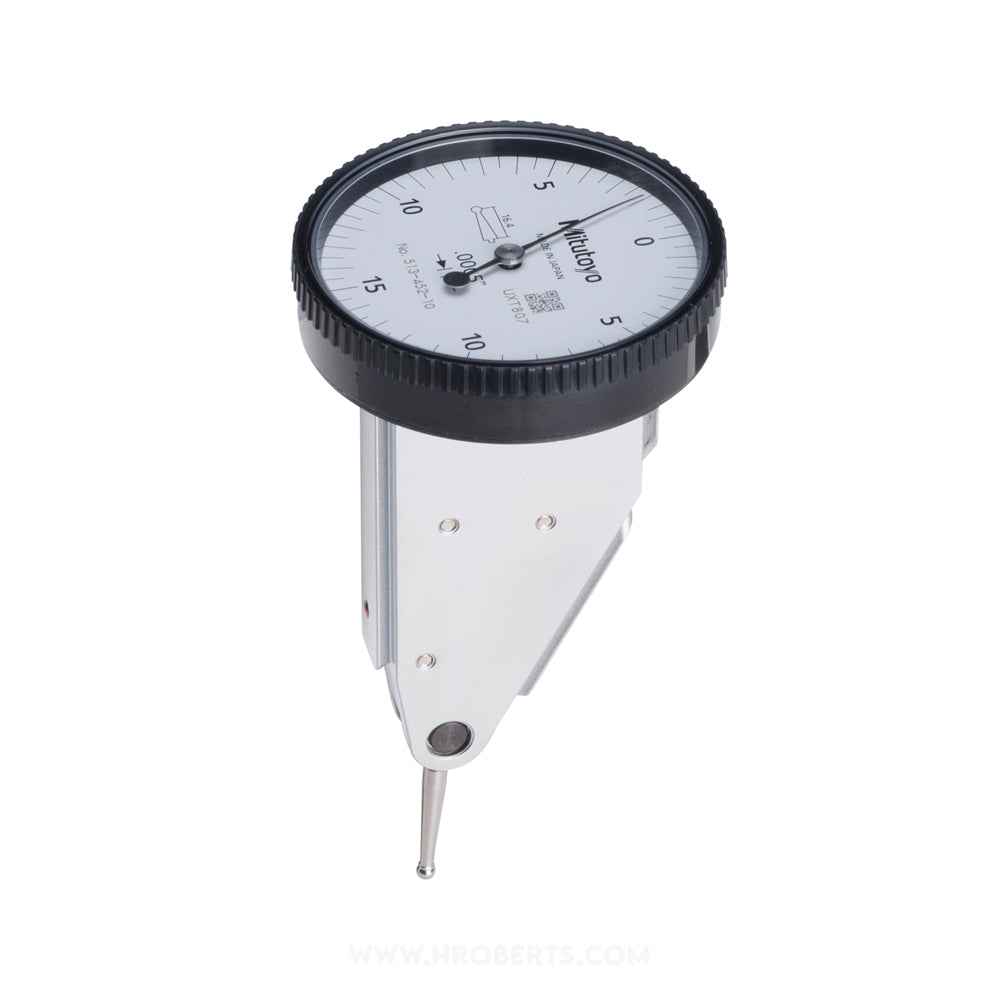

Mitutoyo 513-452-10E Lever Dial Indicator Vertical Type, Graduation 0.0005", Range 0.03", Scale 0-15-0, Stylus Length 16.4mm, Bezel Diameter 40mm
SKU:Code: 513-452-10E
Sale
Sold out
Regular price
£93.00
Save: 25%
Sold out
Sale price
£93.00
Regular price
£124.00
Excl. VAT
Basic Set: Supplied with box, 902805 3/8" dia stem and 133195 stylus 0.08" dia
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Vertical Type
- range 0.030"
- display type Non-Digital
- graduations 0.0005"
- bezel dia 40mm
- measuring force 0.3 N or Less
- measuring units Imperial
- scale 0-15-0
- contact point thread M1.7x0.35
- brand Mitutoyo
description
description
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
