Images are for illustration purposes only - Products may differ.

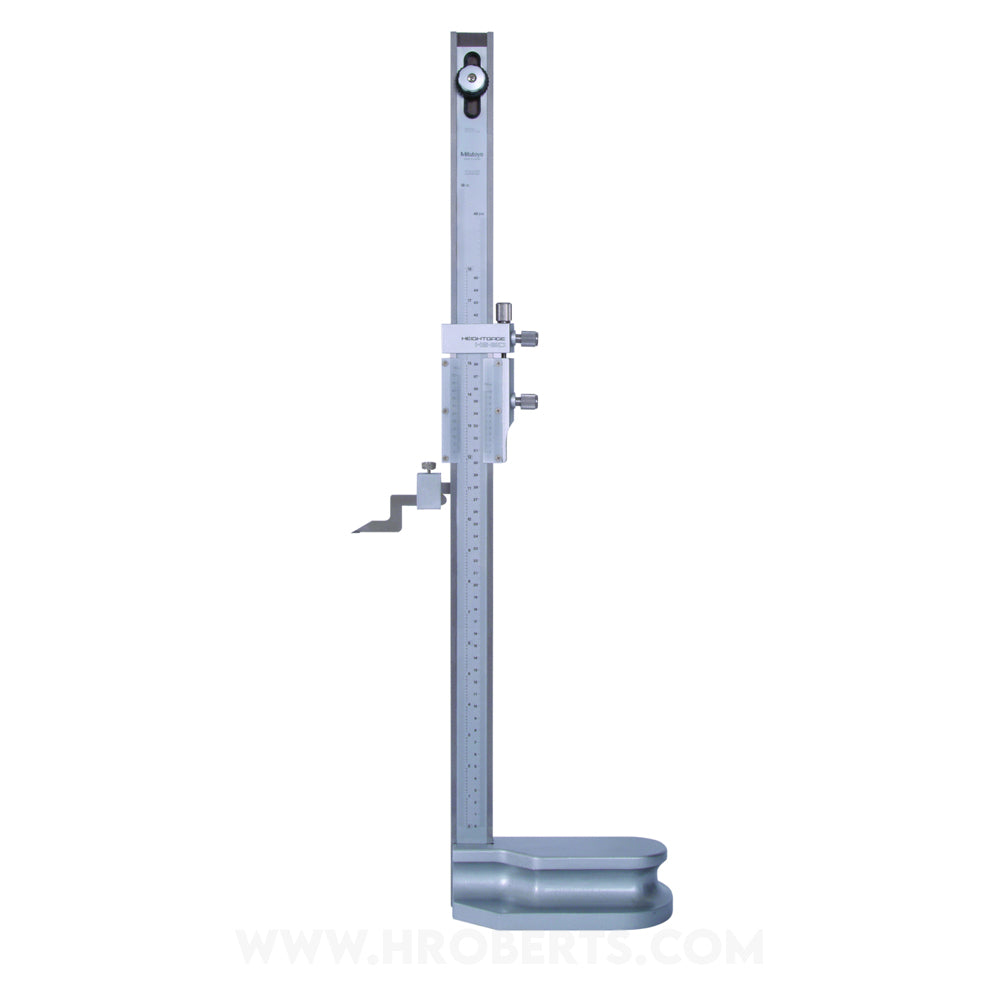

Mitutoyo 514-105 Vernier Height Gauge, Range 0-450mm / 0-18", Graduation 0.02mm / 0.001" with Adjustable Main Scale
SKU:Code: 514-105
Sale
Sold out
Regular price
£624.75
Save: 25%
Sold out
Sale price
£624.75
Regular price
£833.00
Excl. VAT
A Mitutoyo vernier height gauge with a dual unit, adjustable main scale. Stainless steel construction with easy-to-read, satin-chromed scales
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Scribing
- range 0-450mm / 0-18"
- display type Non-Digital
- graduations 0.02mm / 0.001"
- measuring units Metric / Imperial
- remarks Fine feed 4mm (0.16")
- max permissible errors Empe ±0.05 mm (±0.002")
- scale adjustment 15mm (0.6")
- brand Mitutoyo
description
description
Fits comfortably in the hand and moves easily on the surface plate. The main scale slides and clamps within the column for quick and convenient zero-setting. Large locking screws are used both for the slider and fine adjustment clamps to make clamping easy
and secure. Operability of slider has been improved. Large mainscale engraving for fatigue-free working.
