Mitutoyo

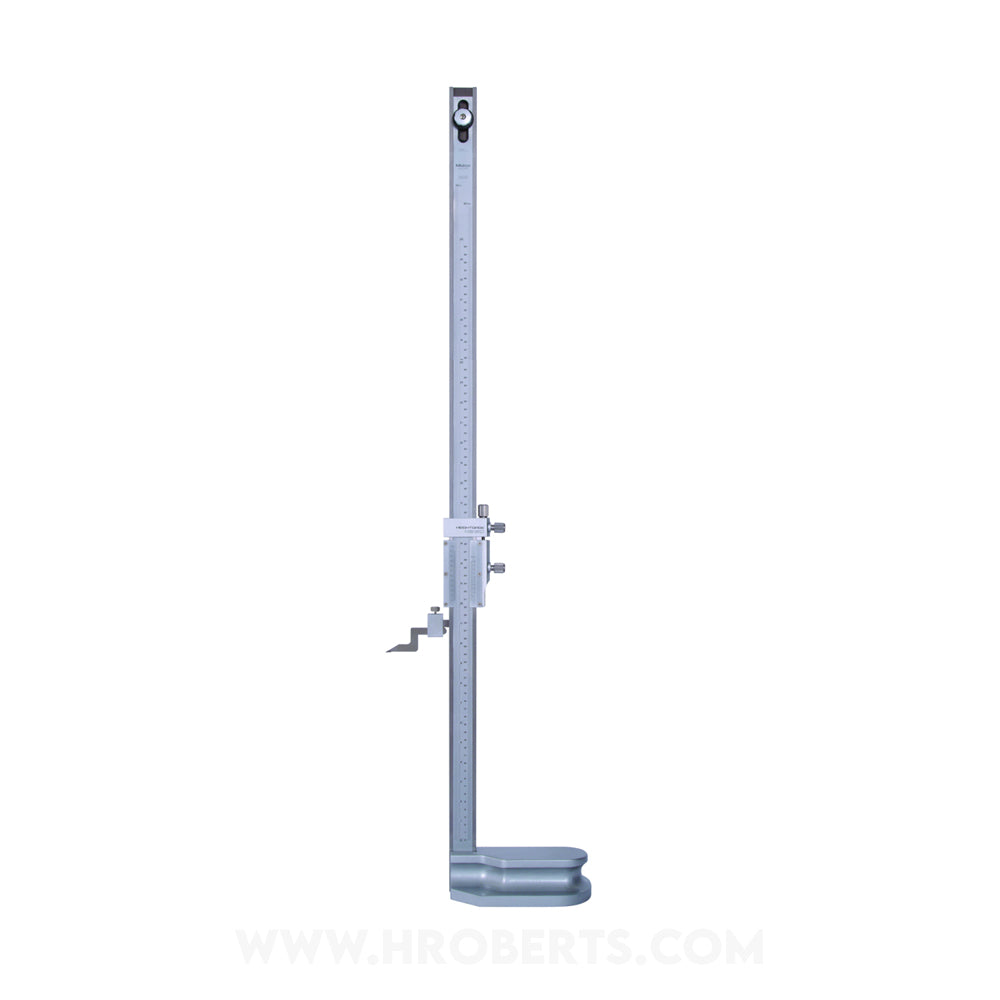

514-109 Vernier Height Gauge, Range 0-1000mm / 0-40", Graduation 0.02mm / 0.001" with Adjustable Main Scale
SKU:Code: 514-109
Sale
Sold out
Regular price
£1,830.00
Save: 25%
Sold out
Sale price
£1,830.00
Regular price
£2,440.00
Excl. VAT
A Mitutoyo vernier height gauge with a dual unit, adjustable main scale. Stainless steel construction with easy-to-read, satin-chromed scales
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Scribing
- range 0-1000mm / 0-40"
- display type Non-Digital
- graduations 0.02mm / 0.001"
- measuring units Metric / Imperial
- remarks Fine feed 6mm (0.24")
- max permissible errors Empe ±0.07 mm (±0.004")
- scale adjustment 25mm (1")
description
description
Fits comfortably in the hand and moves easily on the surface plate. The main scale slides and clamps within the column for quick and convenient zero-setting. Large locking screws are used both for the slider and fine adjustment clamps to make clamping easy
and secure. Operability of slider has been improved. Large mainscale engraving for fatigue-free working.
