Mitutoyo

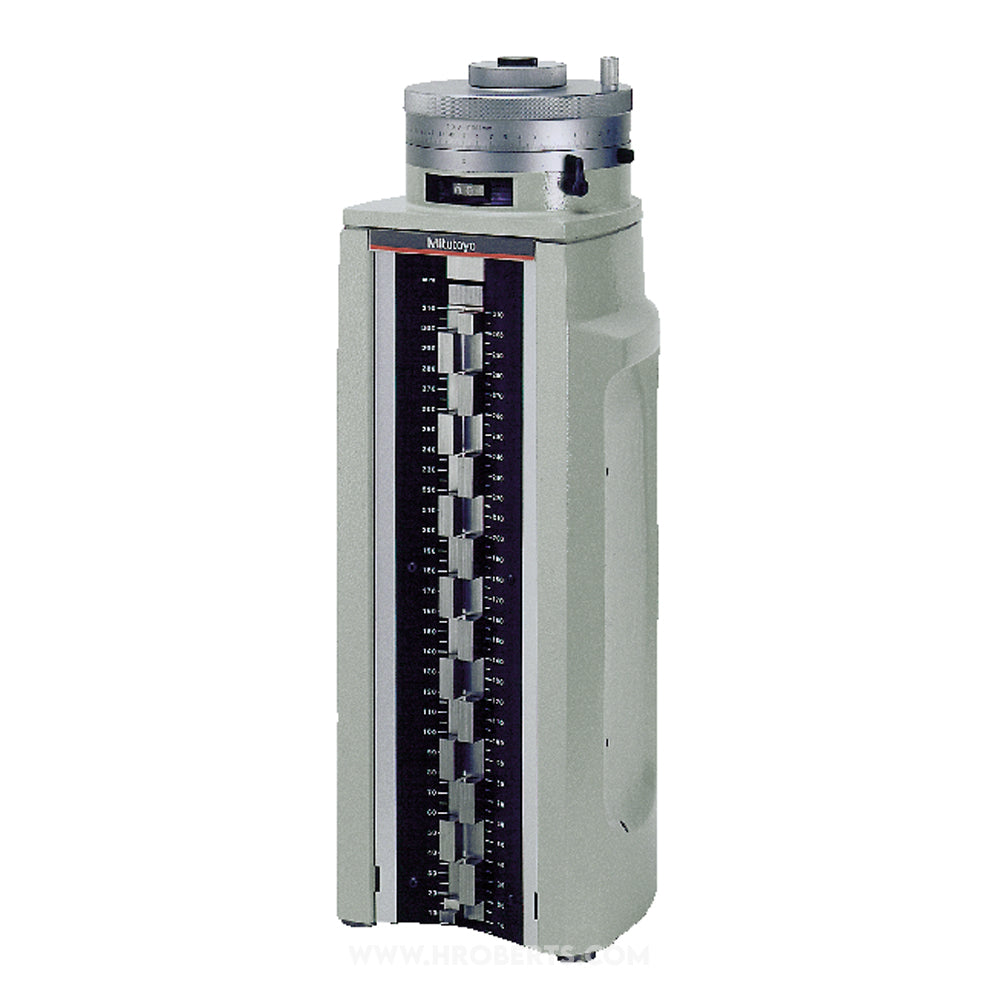

515-322 Universal Height Master, Range 5 - 310mm, Resolution 0.001mm, Block Step 20mm Staggered
SKU:Code: 515-322
Sale
Sold out
Regular price
£2,889.00
Save: 10%
Sold out
Sale price
£2,889.00
Regular price
£3,210.00
Excl. VAT
For calibrating and setting height gauges.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 10-310mm
- display type Digital
- accuracy Block Pitch ± 1.5 µm
- mass 9.5Kg
description
description
For calibrating and setting height gauges. A double gauge block height micrometer with integrated counter that makes reading faster, easier and error-free. The gauge blocks in the Height Master are arranged in two parallel rows, with a block step of 20 mm
or 1" depending on model. The Digimatic models are equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
