Images are for illustration purposes only - Products may differ.

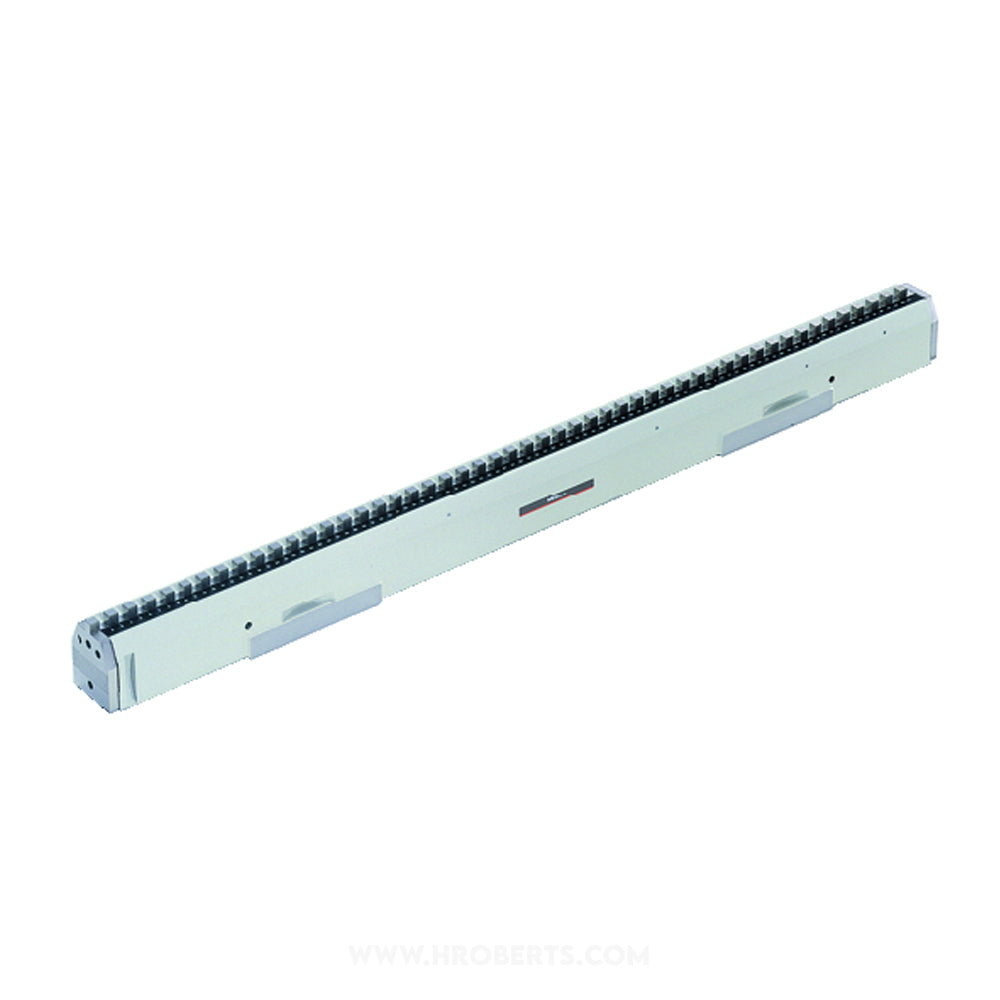

Mitutoyo 515-723 Check Master, Range ( H ) 1000mm
SKU:Code: 515-723
Sale
Sold out
Regular price
£5,391.00
Save: 10%
Sold out
Sale price
£5,391.00
Regular price
£5,990.00
Excl. VAT
This calibration fixture is designed for calibrating the X-, Y- and Z-coordinate axes of precision machine tools and coordinate measuring machines. Rigidly clamped 10 mm gauge blocks provide a step of 20 mm.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 1000mm
- accuracy Block Pitch ≤ 310 mm= ±2.5 µm / 310 < range ≤ 610 mm= ±3.5 µm / 610 < range ≤ 1010 mm= ±5.0 µm
- mass 22Kg
- brand Mitutoyo
