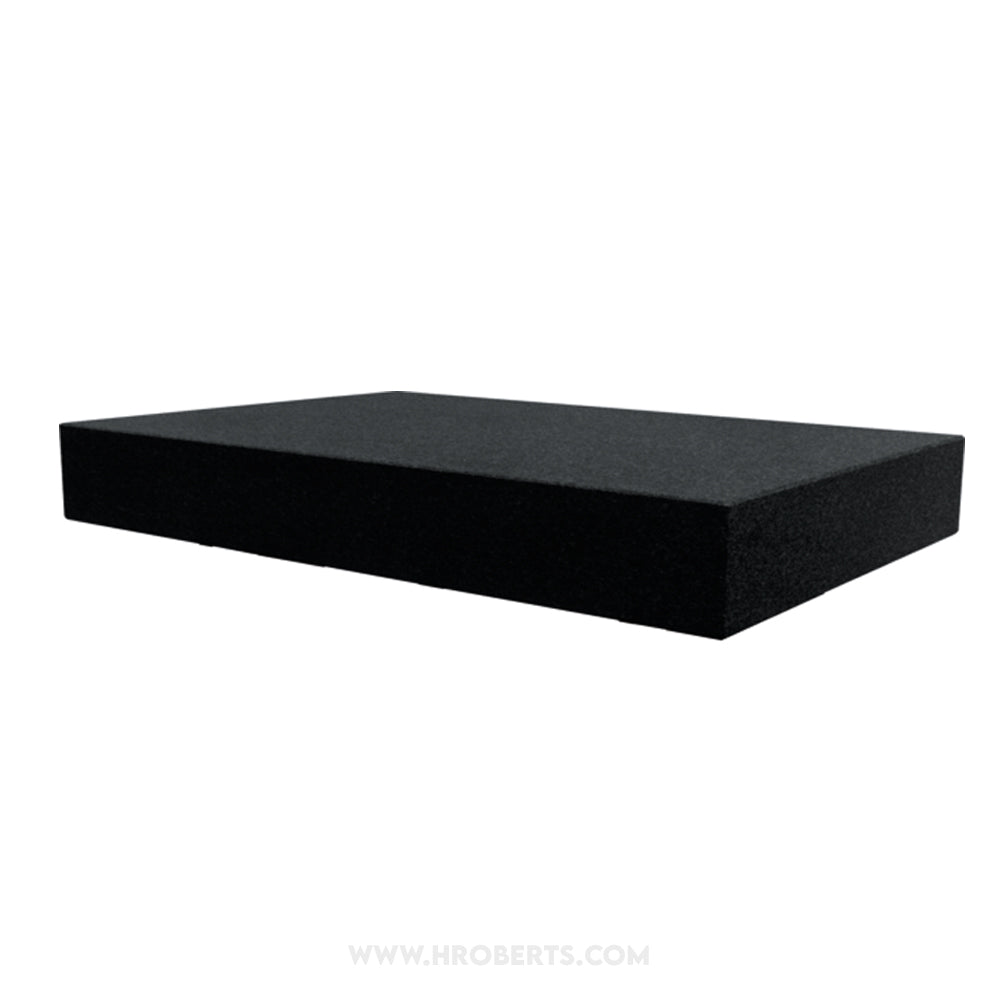

Mitutoyo 517-908-0 Black Granite Surface Plate Grade 0 Dimension 900 x 600 x 100mm ( L x W x H )

Code: 517-908-0

Sale Sold out £844.20
Save: 10% Sold out £844.20 £938.00
Excl. VAT
A Mitutoyo surface plate made from fine-grained black granite. This material has many advantages compared to cast iron in this application, such as being non-magnetic, rustless, twice as hard, non-burr-forming and not prone to stickiness

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • type Granite Plate (Without Stand)
  • size 900 x 600 x 100mm
  • grade Grade 0
  • brand Mitutoyo
description

Natural granite is free from deterioration or dimensional change over time.Granite surface plates have significant advantages over cast iron surface plates: twice as hard as cast iron; non-magnetic; low thermal expansion. Free from burrs or protrusions because of the fine grain structure and insignificant stickiness; this ensures a high degree of flatness over a long service life and causes no damage to workpieces or instruments. Free from wringing, so there is no interruption of work. Use these plates in a stable temperature environment. Since flatness error occurs when there is a temperature difference between the working surface and the underside, avoid working in direct sunlight. Also, do not place a plate in the vicinity of an air conditioner, etc. (Recommended environment: temperature 20±1°C, humidity 58±2%.)
