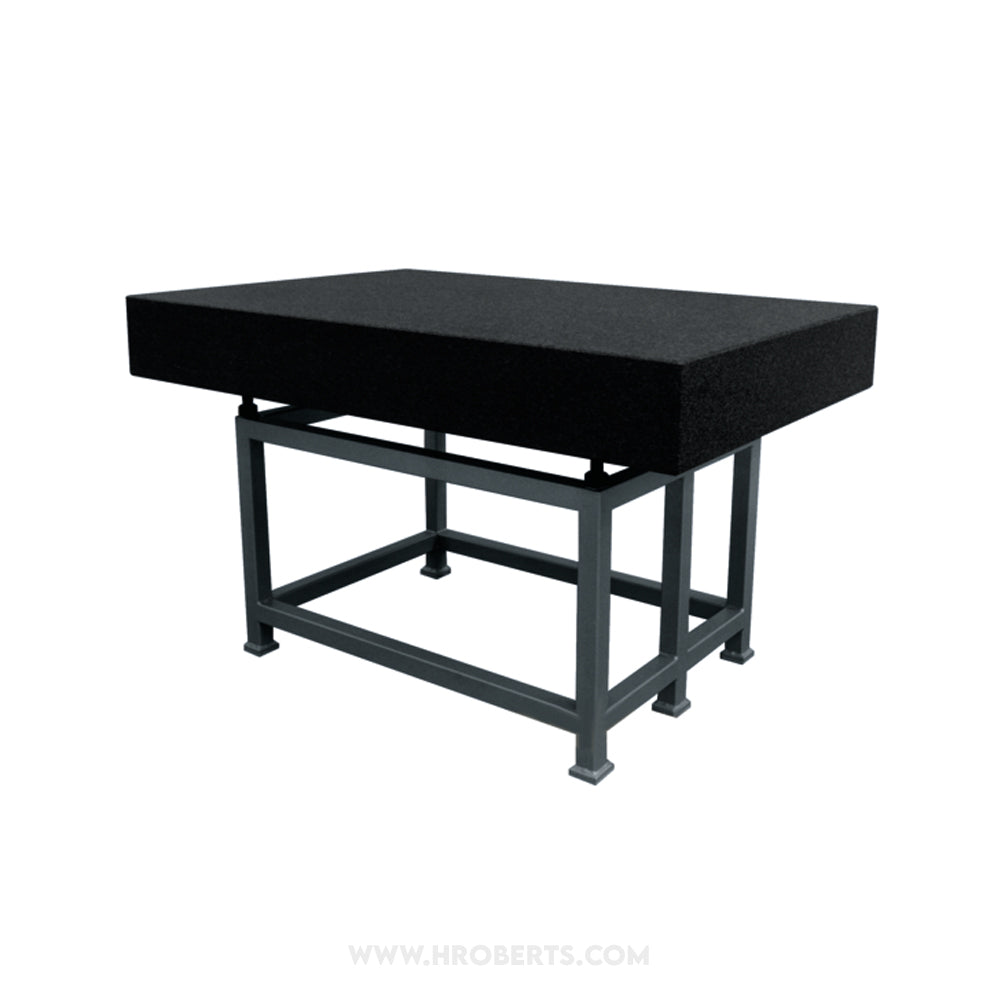

Mitutoyo 517-910-1 Black Granite Surface Plate Grade 1 with Stand, Dimension 900 x 900 x 125mm ( L x W x H )
SKU:Code: 517-910-1
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Granite Table (With Stand)
- size 900 x 900 x 125mm
- remarks Height to underside of Granite Surface Plate - 730mm (+/- 20mm)
- grade Grade 1
- brand Mitutoyo
Natural granite is free from deterioration or dimensional change over time.Granite surface plates have significant advantages over cast iron surface plates: twice as hard as cast iron; non-magnetic; low thermal expansion. Free from burrs or protrusions because of the fine grain structure and insignificant stickiness; this ensures a high degree of flatness over a long service life and causes no damage to workpieces or instruments. Free from wringing, so there is no interruption of work. Use these plates in a stable temperature environment. Since flatness error occurs when there is a temperature difference between the working surface and the underside, avoid working in direct sunlight. Also, do not place a plate in the vicinity of an air conditioner, etc. (Recommended environment: temperature 20±1°C, humidity 58±2%.)
