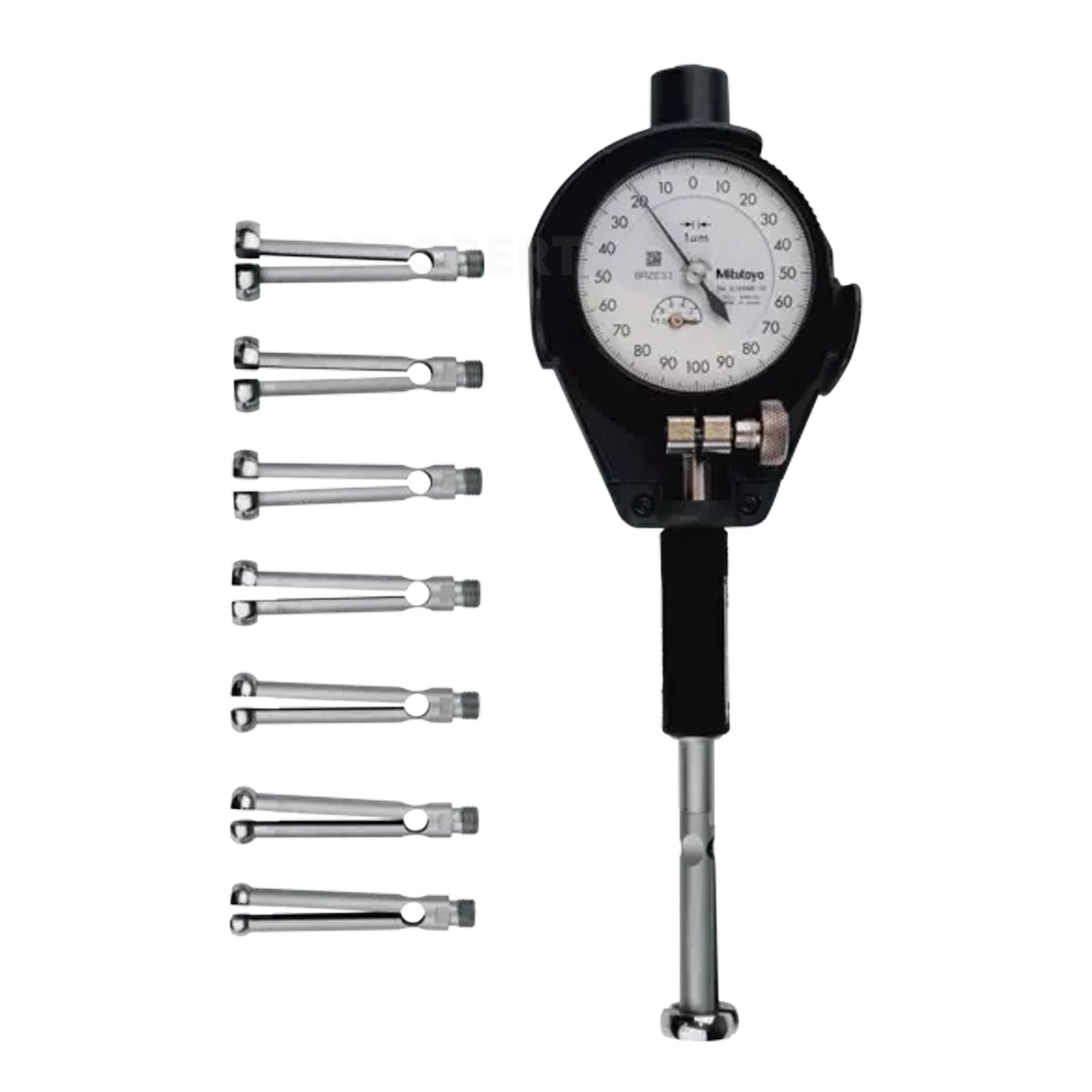

Mitutoyo 526-162-20 Small Hole Bore Gauge, Range 1.50-4.00mm, Graduation 0.001mm, Probe Depth 17.5 / 22.5mm
SKU:Code: 526-162-20
Sale
Sold out
Regular price
£2,122.50
Save: 25%
Sold out
Sale price
£2,122.50
Regular price
£2,830.00
Excl. VAT
A heatshield prevents accuracy degradation due to hand heat during prolonged use.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Small Hole Bore Gauges
- range 1.50-4.00mm
- display type Non-Digital
- graduations 0.001mm
- accuracy 4 μm
- measuring force -
- measuring units Metric
- probe depth 17.5 / 22.5mm
- repeatability 2 μm
- dial indicator 2109AB-10
- anvil 9
- brand Mitutoyo
description
description
This gauge is designed to measure the diameters of very small holes. The radial displacement of the split-ball anvil is converted to axial displacement of the measuring rod, which is shown on the dial indicator. An optional stand (215-120-10) is available for efficient measurement of multiple small holes.
