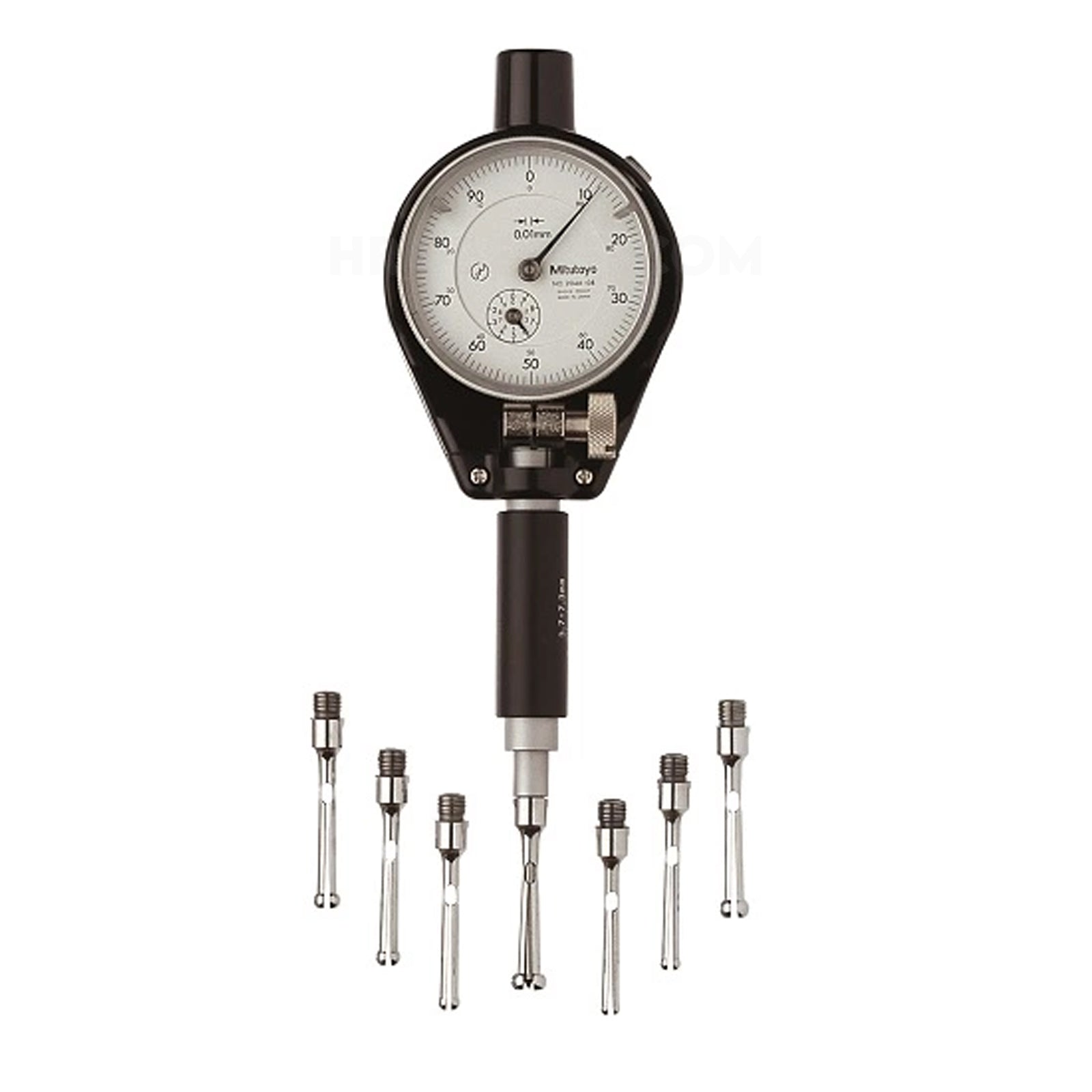

Mitutoyo 526-166-20 Small Hole Bore Gauge, Range 0.060-0.155", Graduation 0.0001", Probe Depth 0.68 / 0.88"
SKU:Code: 526-166-20
Sale
Sold out
Regular price
£2,227.50
Save: 25%
Sold out
Sale price
£2,227.50
Regular price
£2,970.00
Excl. VAT
A heatshield prevents accuracy degradation due to hand heat during prolonged use.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Small Hole Bore Gauges
- range 0.060-0.155"
- display type Non-Digital
- graduations 0.0001"
- accuracy 0.00016"
- measuring force -
- measuring units Imperial
- probe depth 0.68 / 0.88"
- repeatability 0.00008"
- dial indicator 2923AB-10
- anvil 9
- brand Mitutoyo
description
description
This gauge is designed to measure the diameters of very small holes. The radial displacement of the split-ball anvil is converted to axial displacement of the measuring rod, which is shown on the dial indicator. An optional stand (215-120-10) is available for efficient measurement of multiple small holes.
