Mitutoyo 530-118 Vernier Caliper, Range 0-200mm / 0-8", Graduation 0.02mm / 0.001"
SKU:Code: 530-118
Sale
Sold out
Regular price
£61.95
Save: 25%
Sold out
Sale price
£61.95
Regular price
£82.60
Excl. VAT
A Mitutoyo dual-scale, high accuracy/resolution vernier caliper equipped with standard outside and inside jaws. Hardened stainless steel construction with easy-to-read, satin-chromed scales.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-200mm / 0-8"
- display type Vernier
- graduations 0.02mm / 0.001"
- measuring units Metric / Imperial
- depth bar Flat Blade
- brand Mitutoyo
description
description
Stepped graduation face prevents dust ingress between the main scale and slider. The small vernier face angle (14°) provides easy reading. Can measure outside and inside dimensions, depth, and steps.

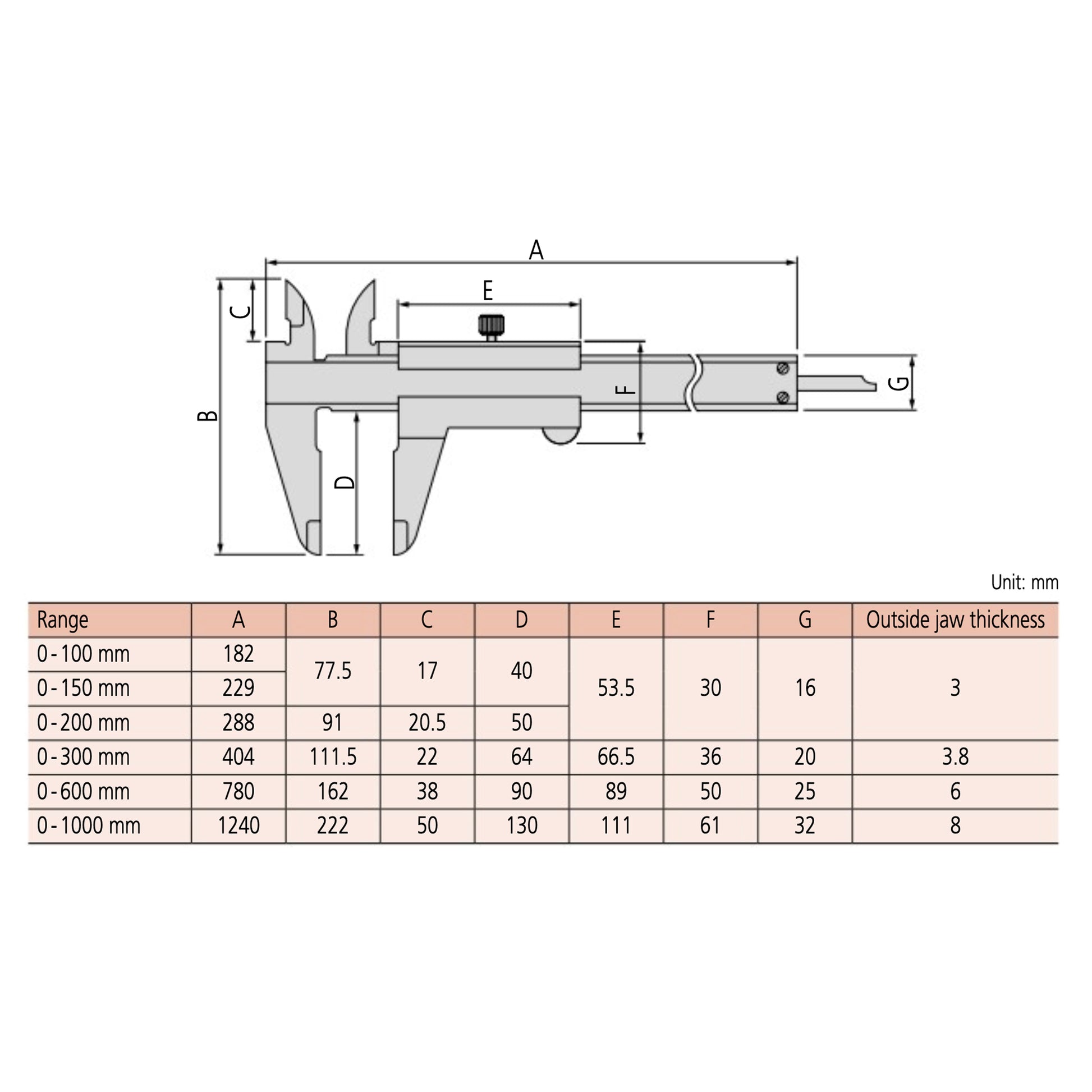

technical drawings
PDF downloads
accessories
