Mitutoyo
530-322 Vernier Caliper, Range 0-300mm, Graduation 0.05mm
SKU:Code: 530-322
Sale
Sold out
Regular price
£264.75
Save: 25%
Sold out
Sale price
£264.75
Regular price
£353.00
Excl. VAT
Can measure outside and inside dimensions, depth, and steps
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-300mm
- display type Vernier
- graduations 0.05mm
- measuring units Metric
- remarks Carbide-Tipped Jaws for Outside Measurement
- depth bar Flat Blade
description
description
Stepped graduation face prevents dust ingress between the main scale and slider. The small vernier face angle (14°) provides easy reading. Can measure outside and inside dimensions, depth, and steps.

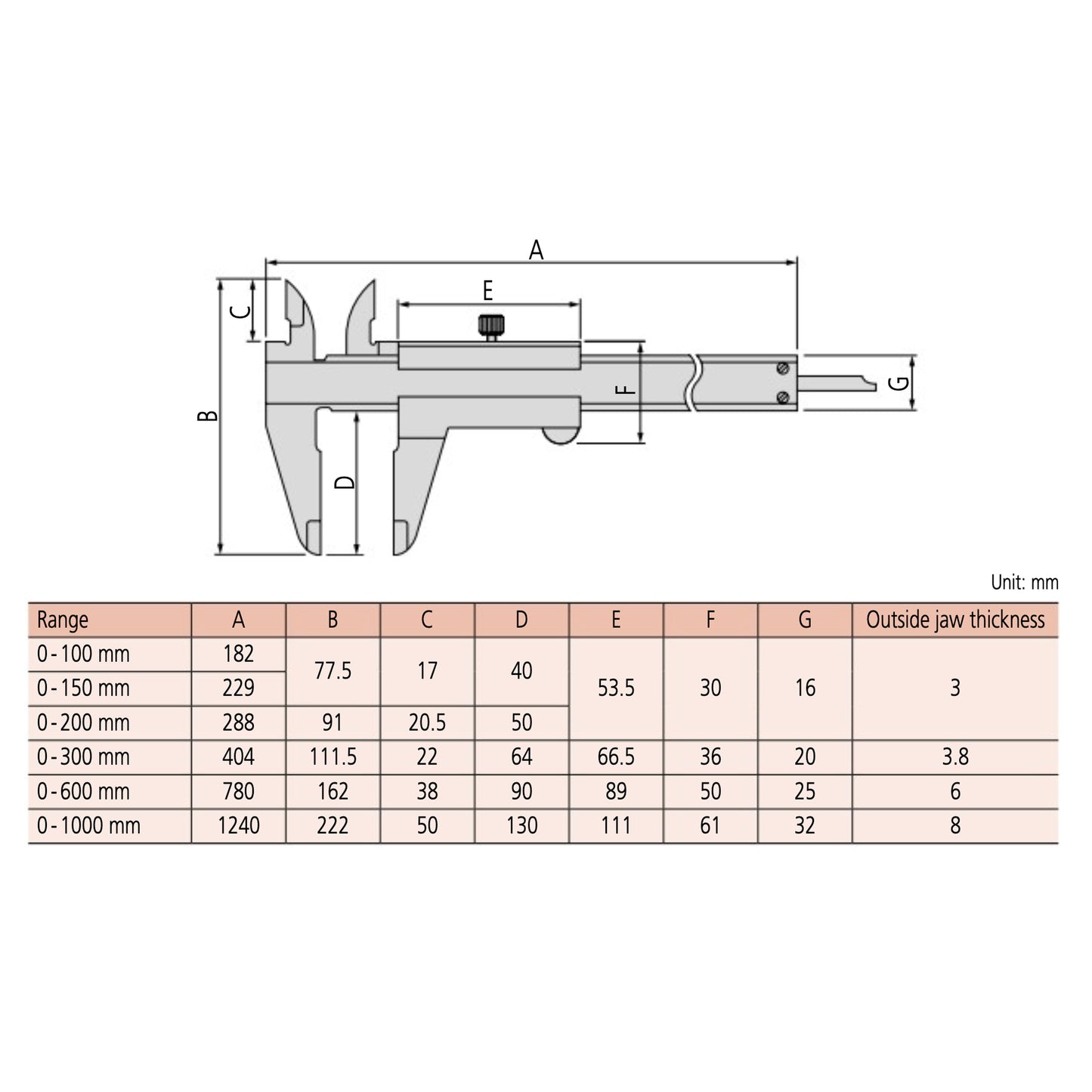

technical drawings
