Mitutoyo

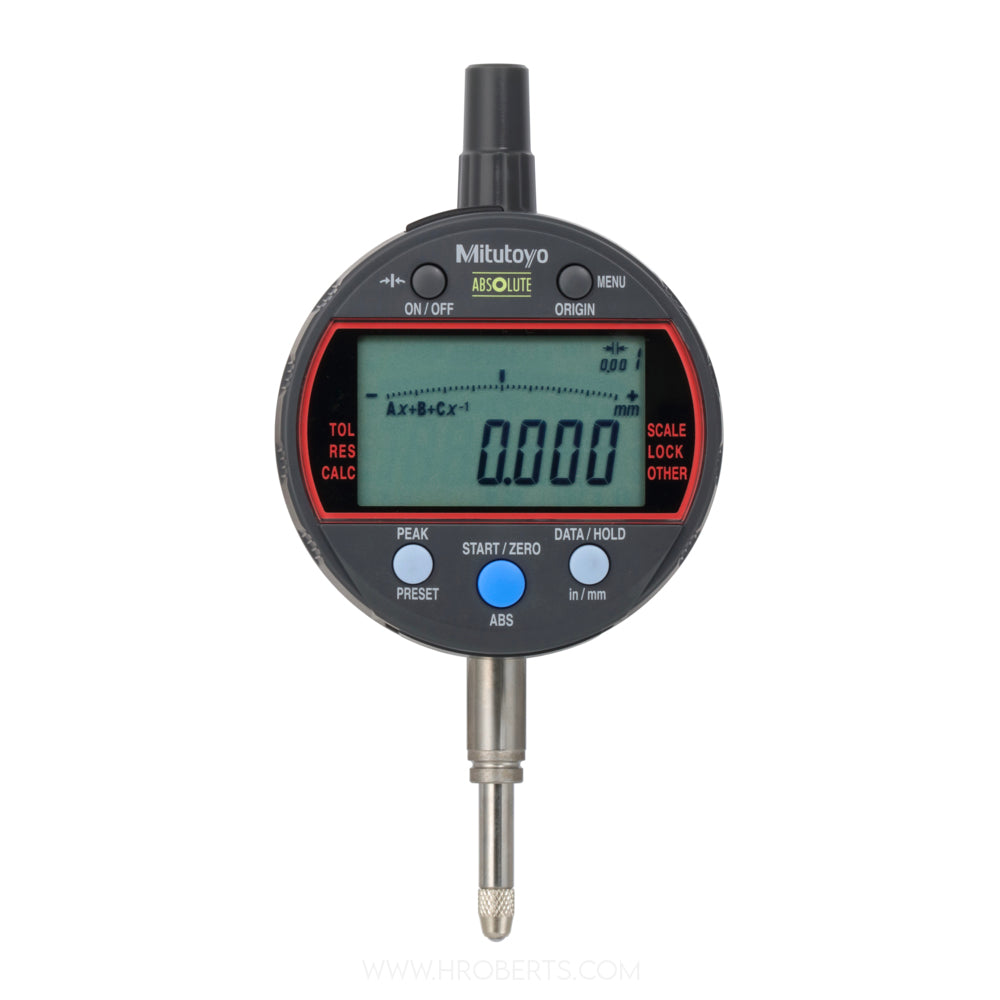

543-341B-10 Absolute Digimatic Digital Calculating Indicator ID-C, Range 0.5" / 12.7mm, Resolution 0.00001" - 0.05" / 0.002mm - 1mm ( 12 Steps ) ( Selectable )
SKU:Code: 543-341B-10
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range 0.5" / 12.7mm
- display type Digital
- data output Yes
- ip rating IP42
- measuring units Imperial / Metric
- stem dia 8mm
- contact point thread M2.5 x 0.45
- back Flatback
This indicator incorporates an internal calculation function that operates from plunger displacement. Using dedicated fixtures, measurements of outside and inside diameter and radius of curvature can easily be made without needing to use conversion tables or manual calculations, and requiring access to only one side of the component to be measured. The ABSOLUTE sensor restores the last origin position automatically when the indicator is turned on. The chance of over-speed error has been avoided thanks to the ABSOLUTE sensor. Tolerance judgement is available by presetting upper and lower limit values. Large, easy-to-read 7-digit LCD readout with a character height of 8 mm. Can be rotated up to 330º to achieve the optimum reading position. Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
