Mitutoyo

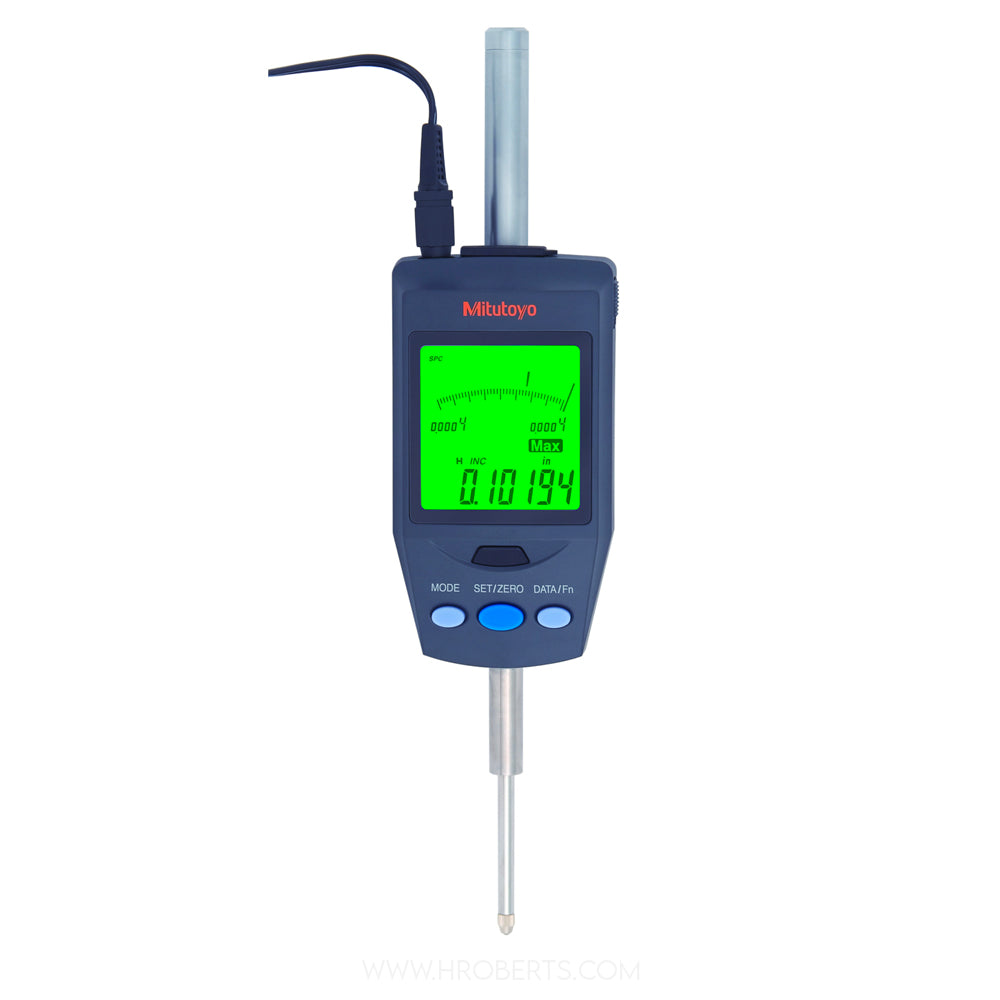

543-562E Digimatic Digital Indicator ID-H, Range 1.2" / 30.4mm, Resolution 0.00002", 0.00005", 0.0001" 0.0005" / 0.0005mm, 0.01mm
SKU:Code: 543-562E
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range 1.2" / 30.4mm
- display type Digital
- resolution 0.00002" / 0.00005"/ 0.0001" 0.0005" / 0.0005mm/ 0.01mm
- data output Yes
- measuring units Imperial / Metric
- stem dia 9.52mm
- contact point thread 4-48UNF
This new-generation digital indicator offers the excellent accuracy and functionality expected from the top class of indicator. Take advantage of its high accuracy backed up by 0.5 μm / .00002" resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analogue bar display. Functionality meets the needs of diverse measurement applications. Measuring maximum value, minimum value and runout (difference between a maximum and a
minimum value). GO/NO-GO judgement function: If a judgement result shows an out of tolerance condition the display backlighting changes from green to red. With the optional remote controller, operations such as zero-setting and presetting can be made without touching the indicator body, thereby avoiding disturbance to the set-up. An advanced, remote control system can be implemented with the built-in RS-232 interface and a PC. Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
