Images are for illustration purposes only - Products may differ.

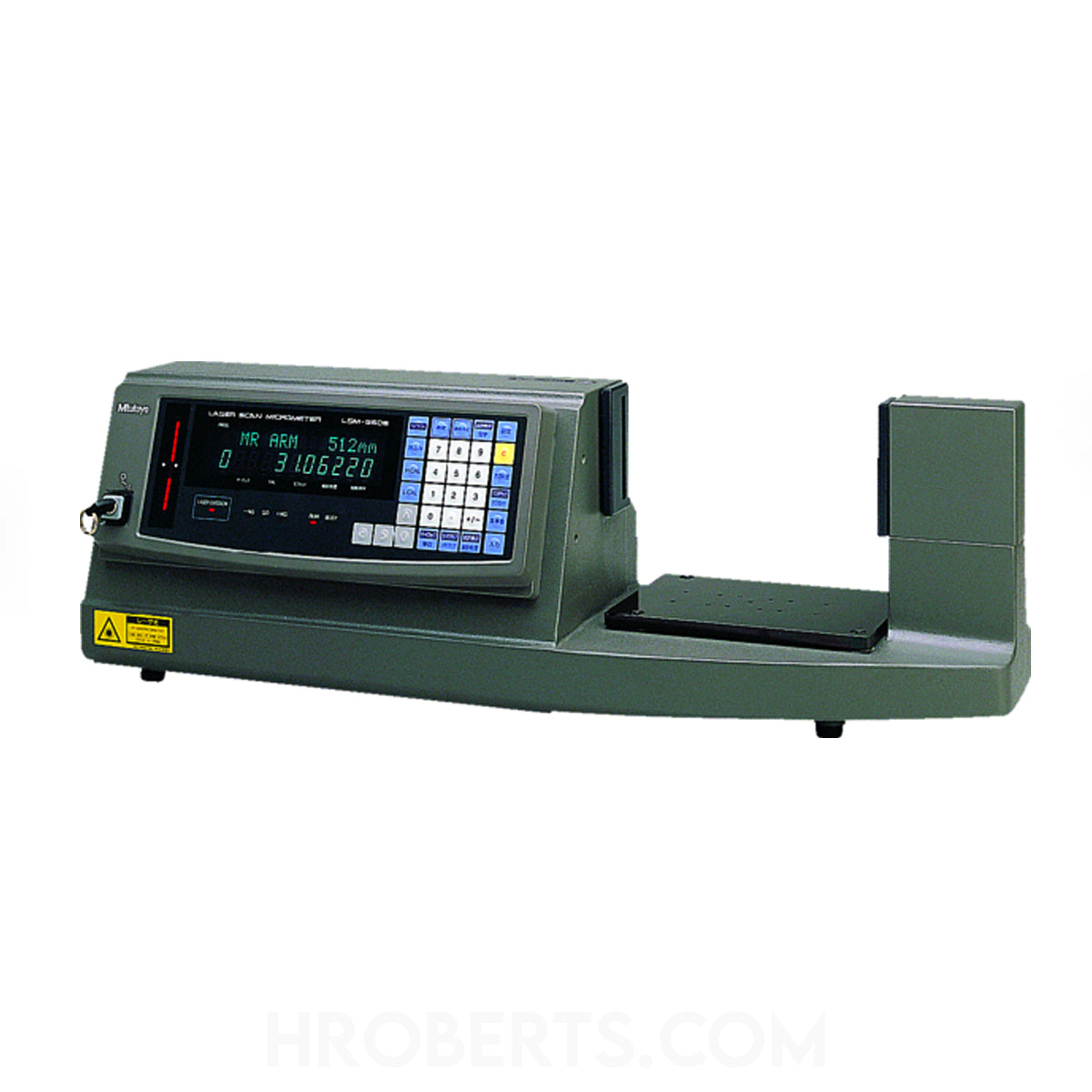

Mitutoyo 544-116E LSM-9506 High Accuracy Benchtop Non-Contact Measuring System, Laser Scan Micrometer, Range 0.5-60mm / 0.02-2.36", Resolution 0.00005-0.1mm / 0.000002-0.005"
SKU:Code: 544-116E
This item is no longer available or has been discontinued.
Measurement system and display integrated into a single unit for easy bench-top inspection. Provides high accuracy of ±2.5 μm over the entire measuring range. Excellent repeatability of 0.6 μm. A statistical calculation function is provided. RS-232C interface and SPC output interface included as standard.
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.5-60mm / 0.02-2.36"
- display type Digital
- graduations 0.00005-0.1mm / 0.000002-0.005"
- data output Yes
- measuring units Metric / Imperial
- measuring region 10 x 60 mm
- laser wavelength 650 nm visible
- scanning rate 1600 scans/s
- laser scanning speed 226 m/s
- brand Mitutoyo
description
description
Functions: Zero-setting, preset, GO/±NG judgement, multi-limit judgement, offset value setting, sample measurement, statistical calculation, group judgement, data output, workpiece position display, mm/inch switching, dual-gauge calibration, transparent object measurement, automatic measurement, abnormal data elimination.
