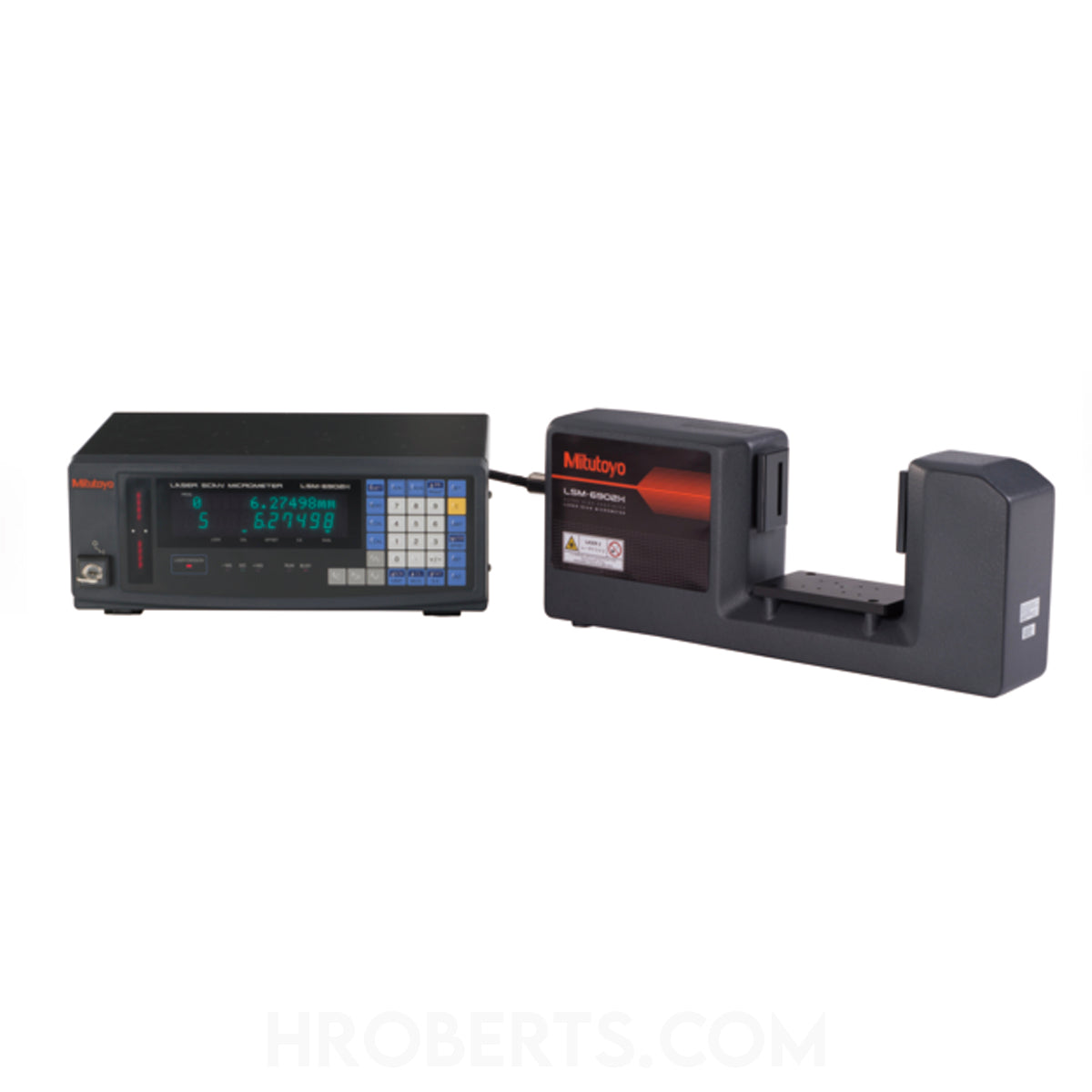

Mitutoyo 544-499-1E LSM-6902H Ultra-High Accuracy Non-Contact Measuring System, Laser Scan Micrometer, Range 0.1-25mm / 0.004-1", Resolution 0.00001-0.01mm / 0.000001-.0005"
SKU:Code: 544-499-1E
Sale
Sold out
Regular price
£9,210.00
Save:
Sold out
Sale price
£9,210.00
Regular price
£9,210.00
Excl. VAT
Suitable for pin and plug gauge measurements. Wide measuring range of ø0.1 to ø25 mm. Provides ultra-high accuracy of ±0.5 μm over the entire measuring range and even better in the narrow range. Ultra-high repeatability of 0.03 μm.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.1-25mm / 0.004-1"
- display type Digital
- graduations 0.00001-0.01mm / 0.000001-.0005"
- data output Yes
- measuring units Metric / Imperial
- measuring region 3 x 25 mm
- laser wavelength 650 nm visible
- scanning rate 1600 scans/s
- laser scanning speed 56 m/s
- brand Mitutoyo
description
description
Display Unit Functions: Zero-setting, preset, GO/±NG judgement, multi-limit judgement, offset value setting, sample measurement, statistical calculation, group judgement, data output, workpiece position display, mm/inch switching, dual-gauge calibration, transparent object measurement, dual-unit measurement (optional), automatic measurement, abnormal data elimination.
