Images are for illustration purposes only - Products may differ.
Mitutoyo

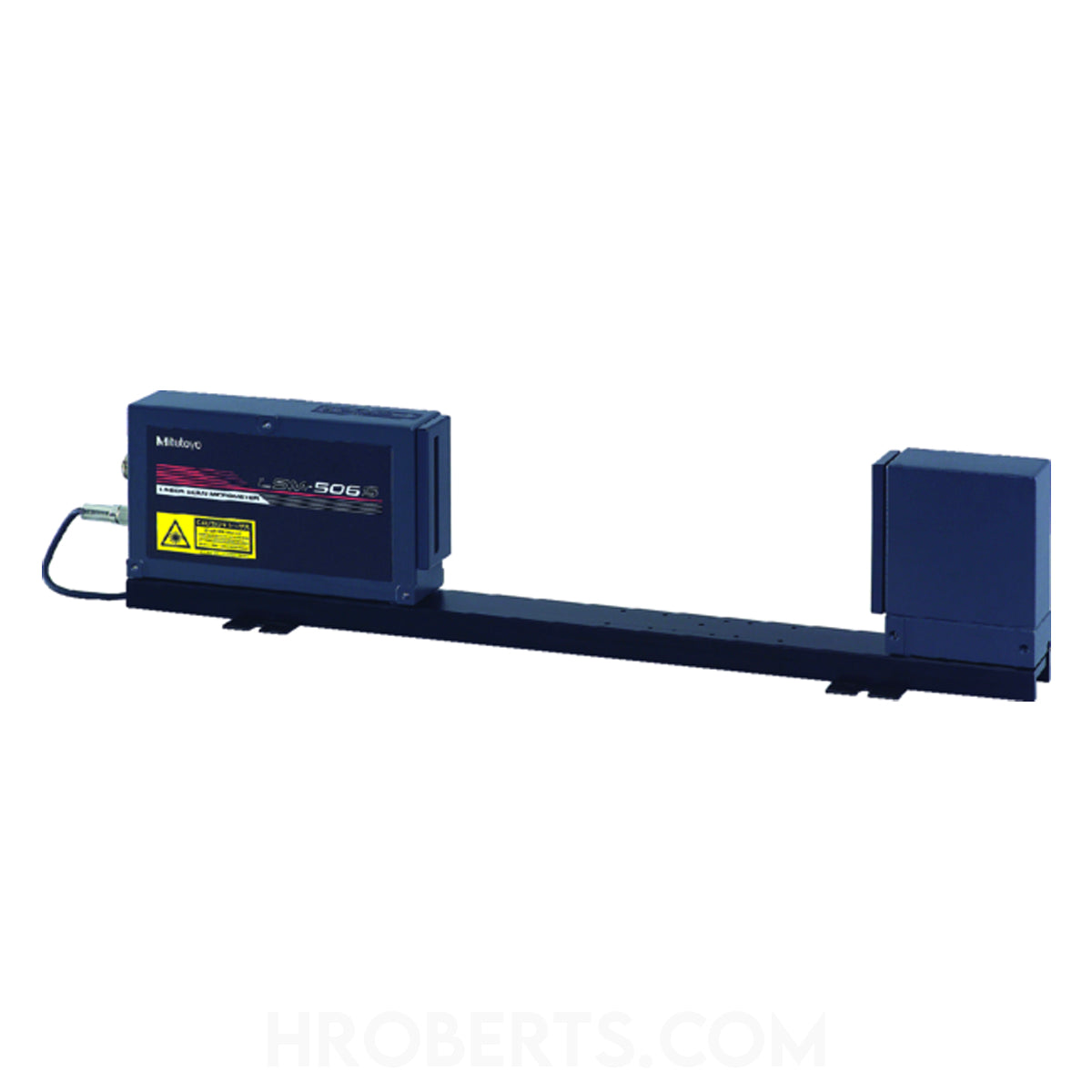

544-538 LSM-506S High Accuracy Non-Contact Measuring System, Laser Scan Micrometer, Range 1-60mm / 0.04-2.36", Resolution 0.00005-0.1mm 0.000002-0.005"
SKU:Code: 544-538
This item is no longer available or has been discontinued.
General-purpose type with a measuring range of 1 mm to 60 mm. Provides high accuracy of ±3.0 μm over the entire measuring range and even better in the narrow range. Excellent repeatability of 0.36 μm.
Need more information? Ask a question or contact us.
Specification
Specification
- range 1-60mm / 0.04-2.36"
- display type Digital
- graduations 0.00005-0.1mm 0.000002-0.005"
- measuring units Metric / Imperial
- measuring region 20 x 60 mm
- laser wavelength 650 nm visible
- scanning rate 3200 scans/s
- laser scanning speed 452 m/s
description
description
High Accuracy Non-contact Measuring System
General-purpose type with a measuring range of 1 mm to 60 mm.
Provides high accuracy with a linearity of ±3 µm over the entire measuring range and ±(1.5 + 0.5ΔD) µm in the narrow range.
Excellent repeatibility of ±0.36 µm.
High scanning rate of 3200 scans/s.
