Mitutoyo

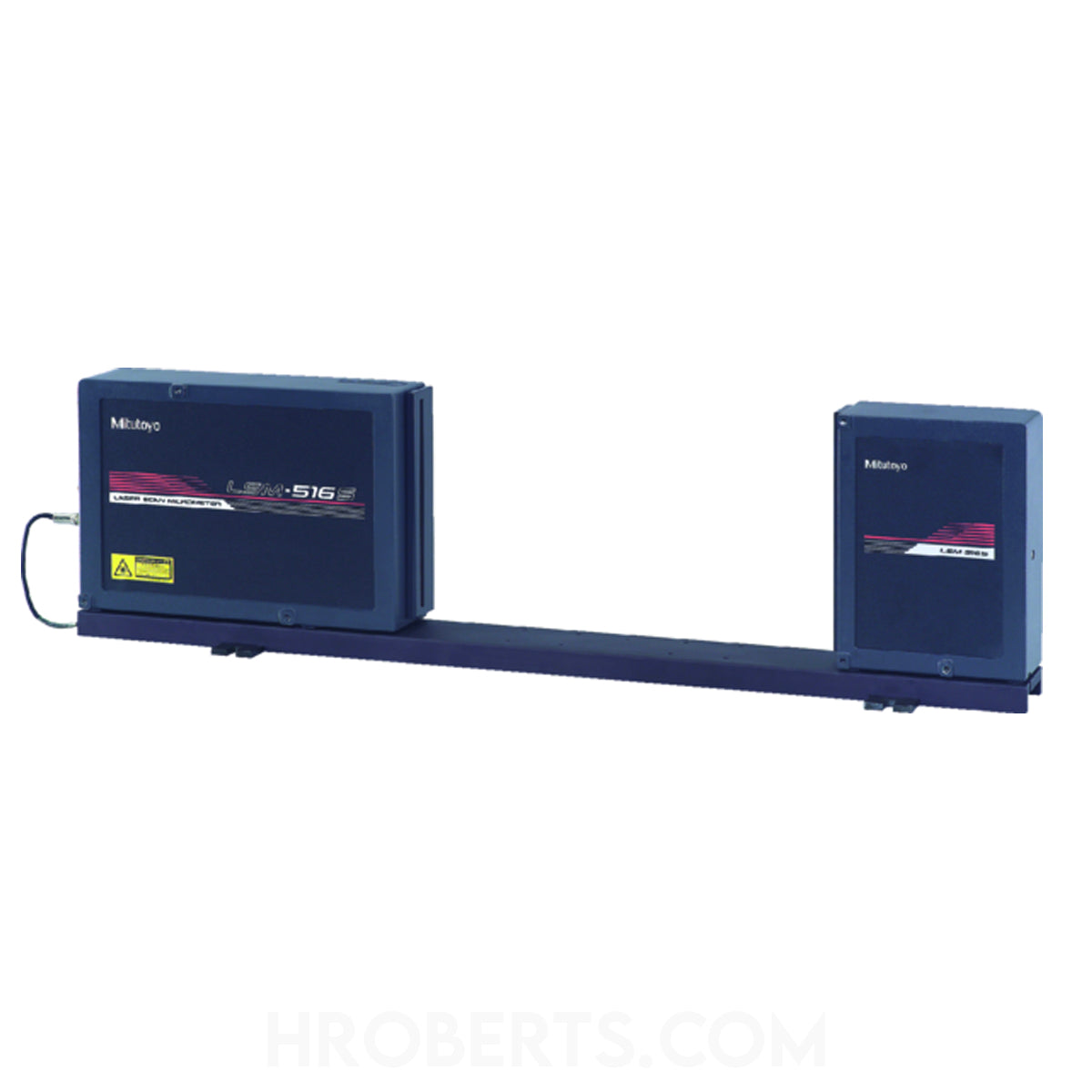

544-542 LSM-516S High Accuracy Non-Contact Measuring System, Laser Scan Micrometer, Range 1-160mm / 0.04-6.3", Resolution 0.0001-0.1mm / 0.000005-0.005"
SKU:Code: 544-542
This item is no longer available or has been discontinued.
General-purpose type with a measuring range of 1 mm to 160 mm. Provides high accuracy of ±7.0 μm over the entire measuring range and even better in the narrow range. Excellent repeatability of 1.4 μm.
Need more information? Ask a question or contact us.
Specification
Specification
- range 1-160mm / 0.04-6.3"
- display type Digital
- graduations 0.0001-0.1mm / 0.000005-0.005"
- data output Yes
- measuring units Metric / Imperial
- measuring region 40 x 160 mm
- laser wavelength 650 nm visible
- scanning rate 3200 scans/s
- laser scanning speed 1206 m/s
description
description
High Accuracy Non-contact measuring system
General-purpose type with a wide measureming range of 1 mm to 160 mm.
Provides high accuracy with a linearity of ±7 μm over the entire measuring range and ±(4,0+2ΔD) μm in the narrow range.
Excellent repeatability of ±1,4 μm.
High scanning rate of 3200 scans/s
