Mitutoyo

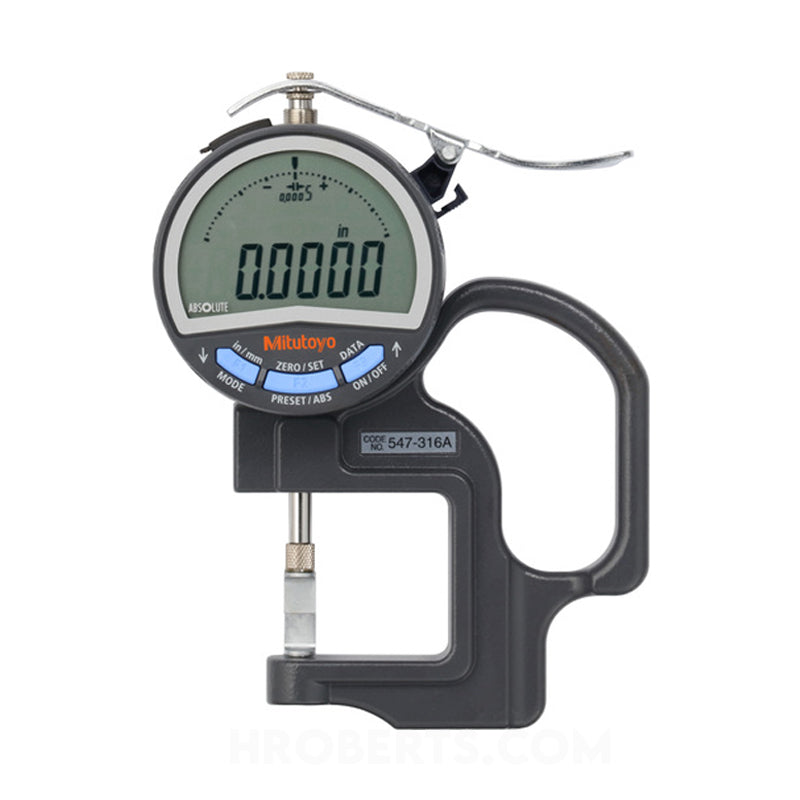

547-316A Digimatic Digital Thickness Gauge, Range 0-10mm / 0-0.4", Resolution 0.01mm / 0.0005"
SKU:Code: 547-316A
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Dial Thickness Gauges
- range 0-10mm / 0-0.4"
- display type Digital
- resolution 0.01mm / 0.0005"
- accuracy ±0.001" / ±20 μm

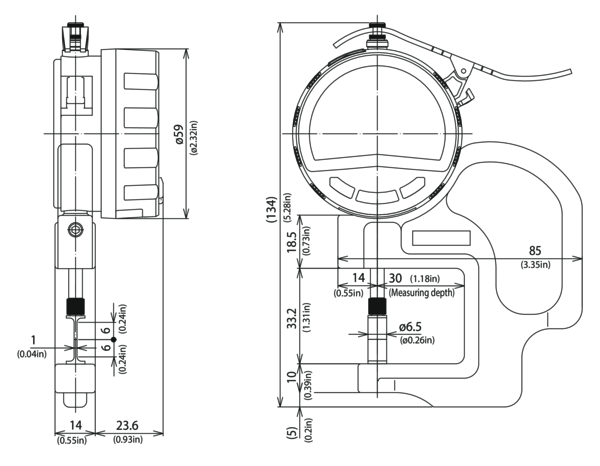

- bezel dia 59mm
- data output Yes
- measuring force 1.5 N or less
- measuring units Metric / Imperial
- stem dia 8mm
- throat depth 30mm / 1.18"
- remarks Groove depth
- contact point 1mm Blade
Dial thickness gauges can quickly measure the thickness of thin products such as paper and felt. Integrated moulding of the bezel and crystal ensures protection against water and oil penetration via the front face. Data output port that enables incorporation into measurement networking and statistical process control systems. Tube thickness measurement type Pipe wall thickness and the thickness of curved boards can be measured. Lens thickness measurement type Thickness of concave-convex lenses and surfaces can be measured. Anvils and contact points are interchangeable to enable concave surfaces to be measured. Provided with a ball point. Groove depth measurement type Suitable for measuring narrow grooves. Measuring face of the contact point and anvil are blade-shaped (thickness: 1 mm).
