Mitutoyo
568-474 Abolute Digmatic Digital Borematic Snap-Open Bore gauge, 3-Point Contact, Range 4-4.5" / 101.6-114.3mm, Resolution 0.00005" / 0.001mm with SPC Data Output
SKU:Code: 568-474
Sale
Sold out
Regular price
£1,312.50
Save: 25%
Sold out
Sale price
£1,312.50
Regular price
£1,750.00
Excl. VAT
Advantages of digital bore gauging include its speed, precision, and ease of use compared to traditional manual methods. It allows for efficient quality control and ensures that components meet the required specifications.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Lever Grip
- range 4-4.5" / 101.6-114.3mm
- display type Digital
- resolution 0.00005" / 0.001mm
- data output Yes
- max measuring depth 75mm
- measuring units Imperial / Metric
- remarks 3-Point Contact
- measuring face Titanium-coated measuring pins
- bore gauge heads 1
- digital display units 1
- with rings No
- blind bore measurement Yes
description
description

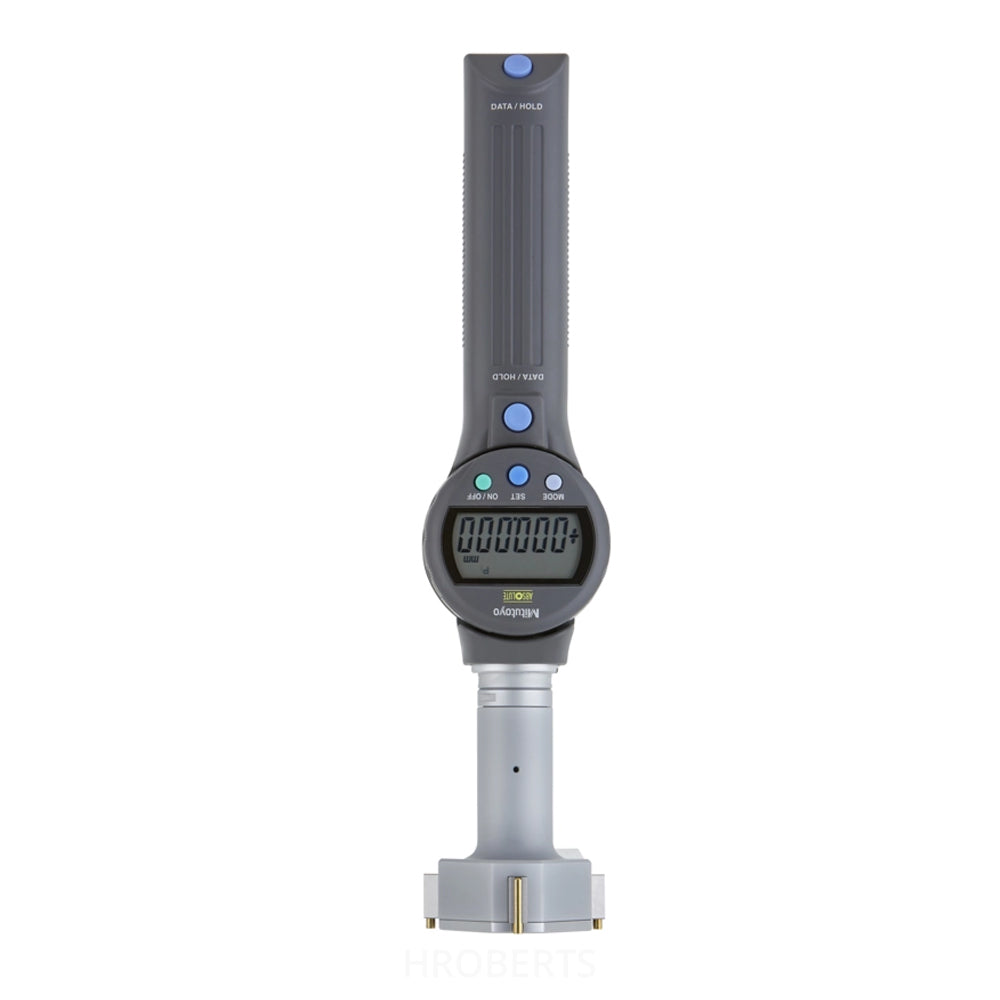

A unique, Mitutoyo digital bore gauge that enables measurements to be made more accurately and more quickly than ever before. Trigger-grip operation ensures fast, easy measurement and a constant measurement force for maximum repeatability on the shop floor. The Borematic ABSOLUTE scale retains the last setting for the life of the battery, therefore repeated setting is not necessary. Large-digit, rotatable LCD display aids convenient, error-free reading
