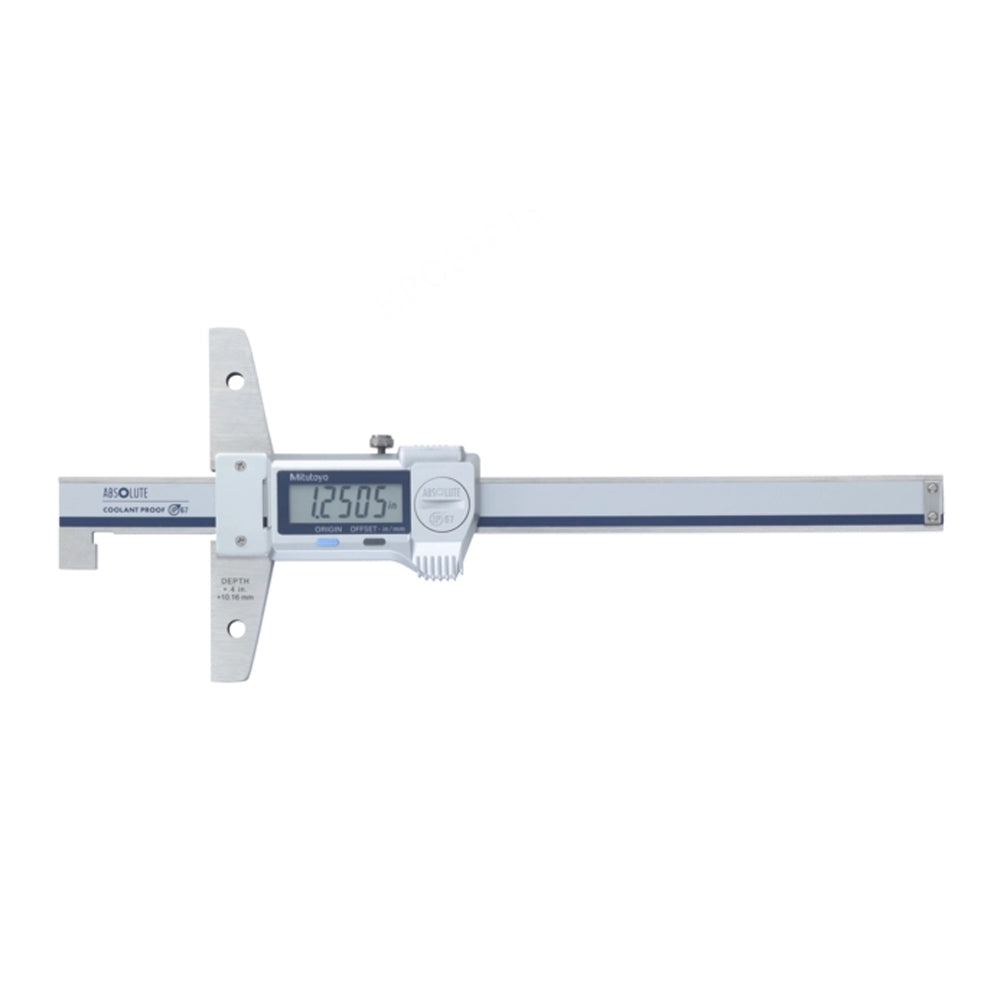

Mitutoyo 571-264-20 Absolute Digimatic Digital Coolant Proof Hook End Depth Gauge, Range 10-160mm / 0.4-6.4" Depth Reading, 0-150mm / 0-6" Hook Reading, Resolution 0.01mm / 0.0005", Base 100 x 6.3mm, IP67 with SPC Data Output
SKU:Code: 571-264-20
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Vernier Depth Gauges Hook End
- range 0-150mm / 0-6"
- display type Digital
- measuring units Metric / Imperial
- brand Mitutoyo
The end of the main beam is hook-shaped to allow depth and thickness measurements of a projected portion or lip in a hole, in addition to standard depth measurement. Enables stable depth measurement with a resolution of 0.01 mm / 0.0005", Features Mitutoyo's ABSOLUTE system with IP67 ingress protection. No need to reset the origin after switching on. Optional longer extension bases are available. The OFF button is used to switch between direct display of hook and depth readings. Slider operation is smooth and comfortable. Models with measurement data output connector may be integrated into statistical process control and measurement systems.
