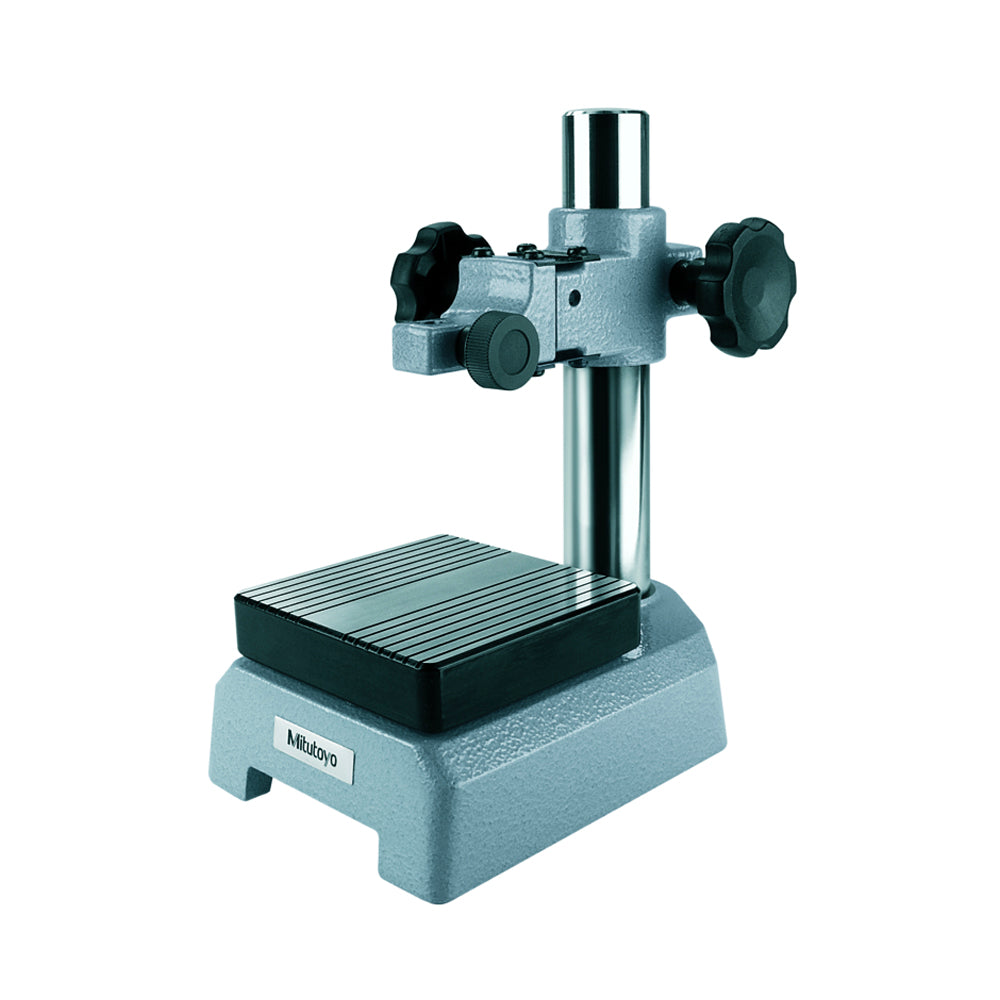

Mitutoyo 7007-10 Dial Gauge Stand, Column Travel 0-90mm
SKU:Code: 7007-10
Sale
Sold out
Regular price
£421.50
Save: 25%
Sold out
Sale price
£421.50
Regular price
£562.00
Excl. VAT
Dial gauge stands are designed for comparison measurements of size using a dial indicator or Digimatic indicator. Vertical fine adjustment is available with one-touch control thanks to the parallel spring suspension.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Indicator Stand
- remarks With Square Anvil 90mm Diameter
- column travel 0-90mm
- acceptable stem sizes Diameter 8mm 9.53mm 3/8"
- column style Plain
- column dia 30mm
- column length 160mm
- base flatness 1.3μm
- brand Mitutoyo
description
description
More to Follow…

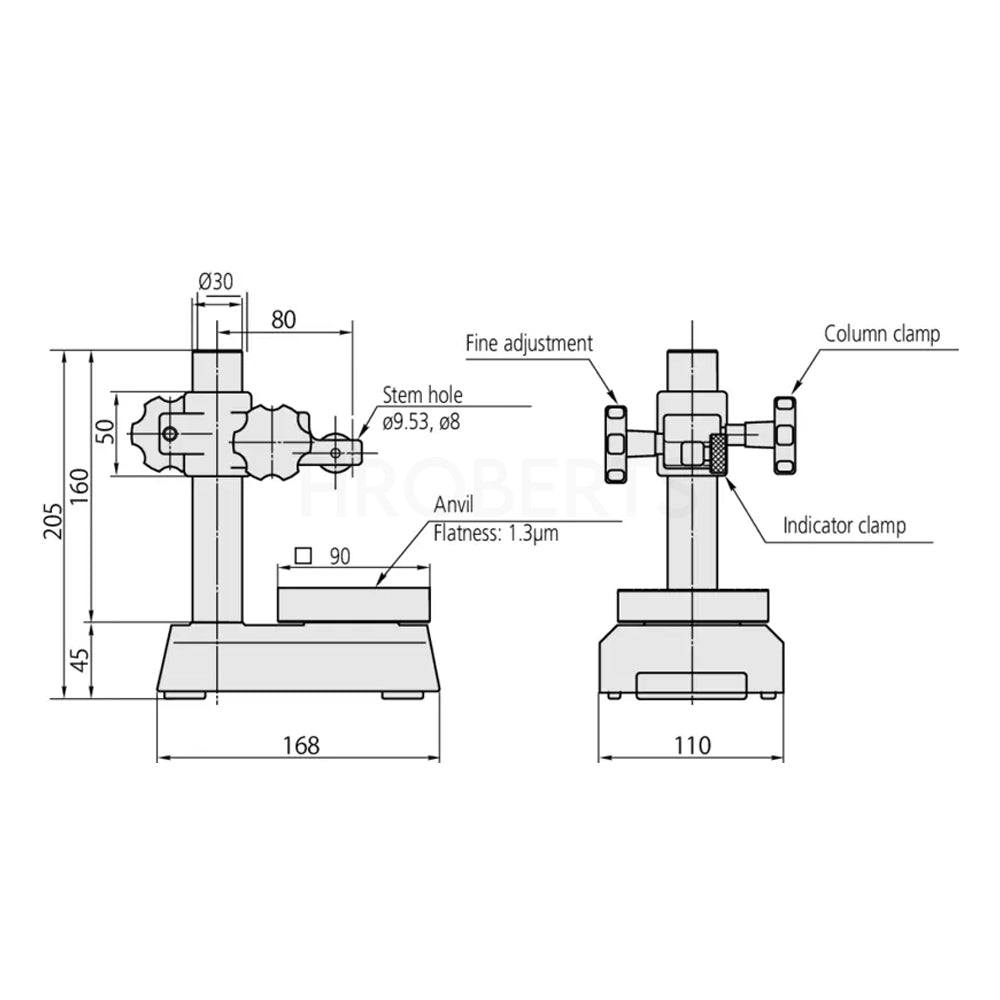

technical drawings
