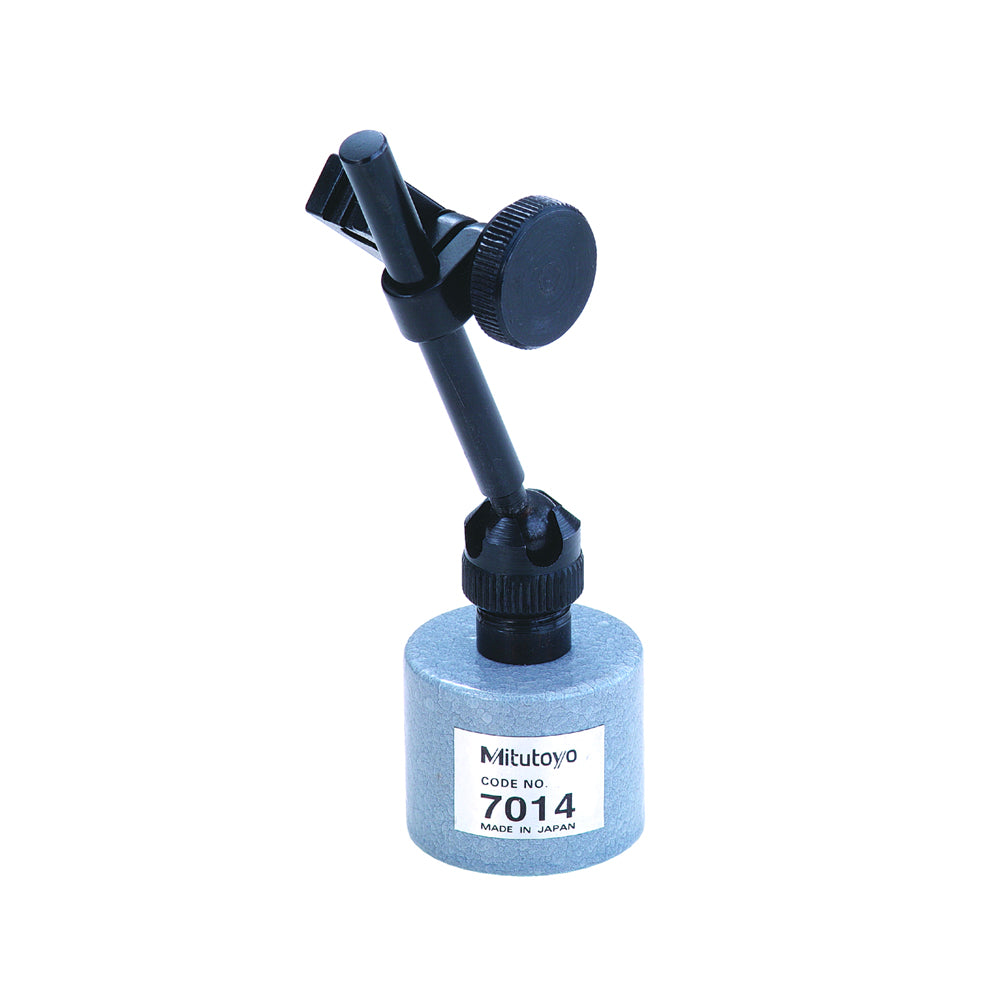

Mitutoyo 7014-10 Mini Magnetic Stand
SKU:Code: 7014-10
Sale
Sold out
Regular price
£56.55
Save: 25%
Sold out
Sale price
£56.55
Regular price
£75.40
Excl. VAT
Mitutoyo’s magnetic stands clamp to iron or steel surfaces with a strong force and are indispensable for temporarily mounting a dial test indicator (or dial indicator) onto a machine tool or fixture for general alignment applications.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Magnetic Stand
- remarks Without Magnet on / off
- acceptable stem sizes Diameter 6mm 8mm
- column length 81mm
- base magnetic force Approx 150 N
- working radius 68mm
- brand Mitutoyo
description
description
A small Mitutoyo stand that uses a permanent magnet to mount onto flat iron or steel surfaces. Useful for holding dial indicators or dial test indicators during alignment operations

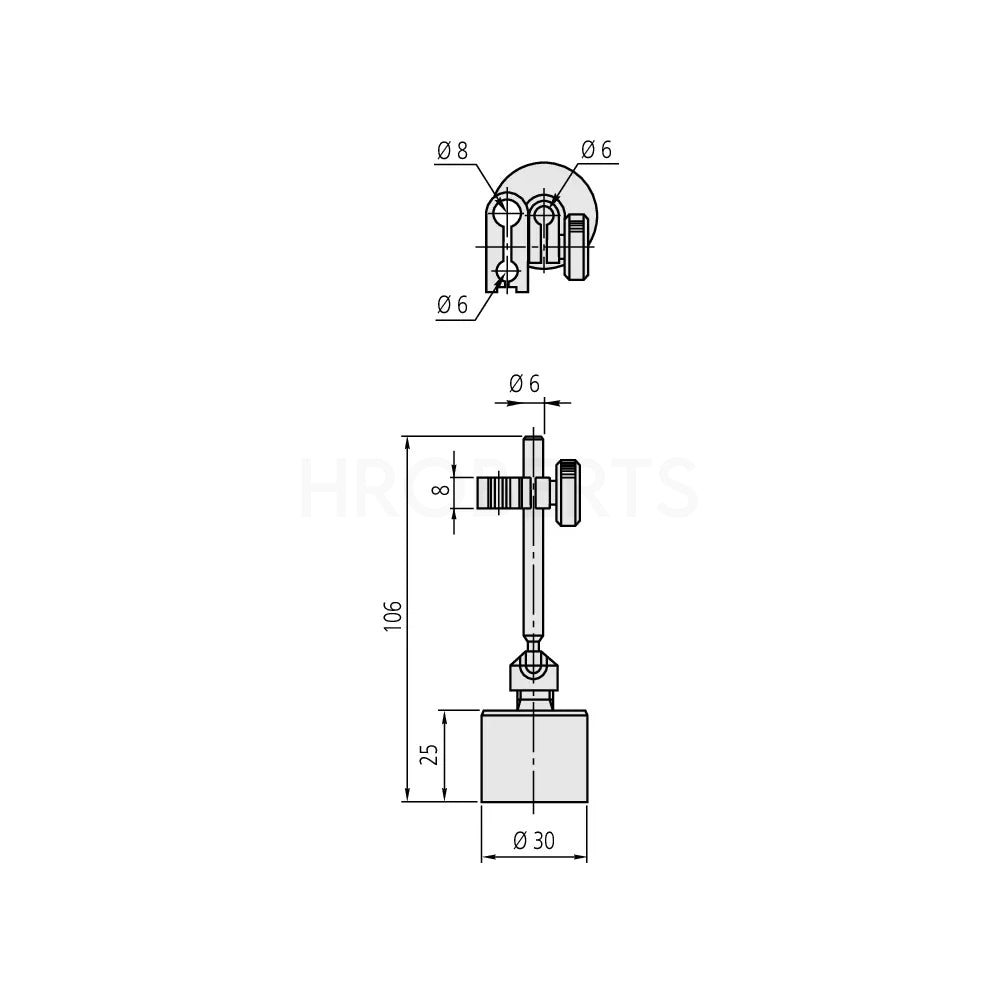

technical drawings
