Mitutoyo

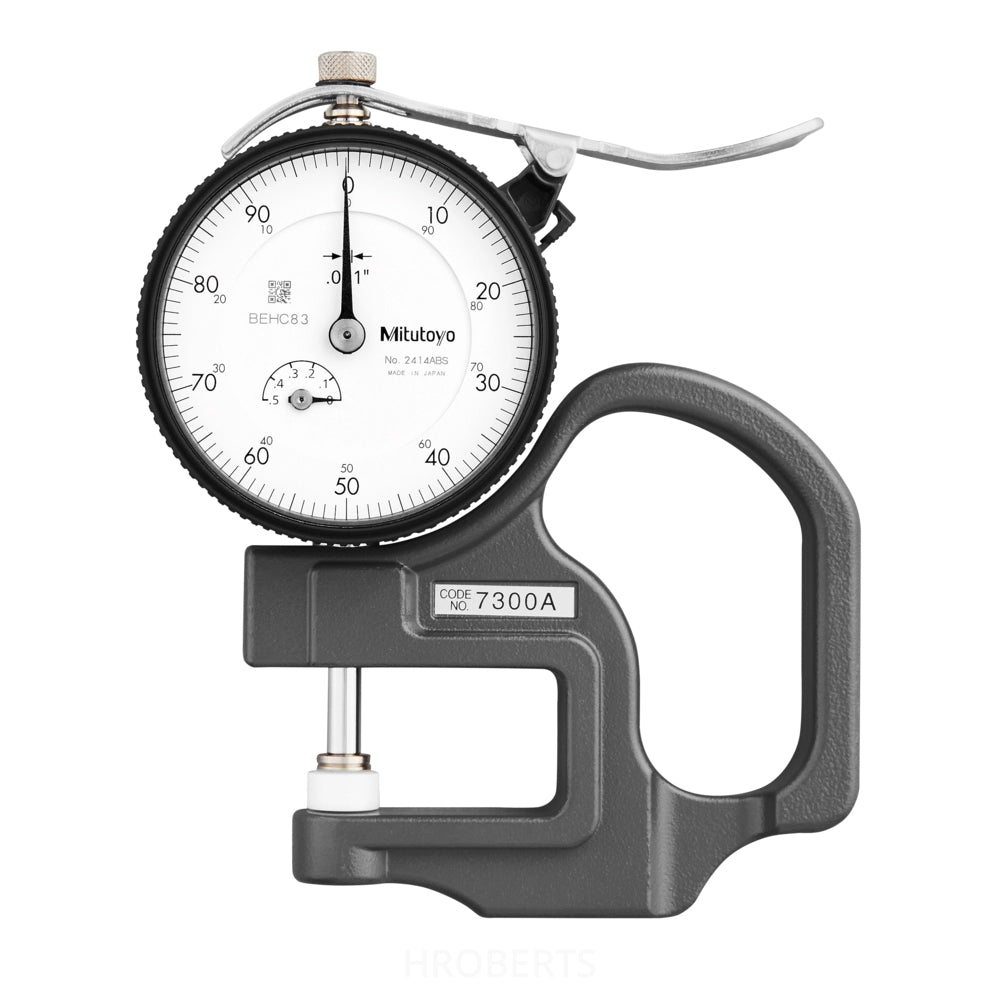

7300A Dial Thickness Gauge, Range 0-0.5", Graduation 0.001"
SKU:Code: 7300A
Sale
Sold out
Regular price
£88.50
Save: 25%
Sold out
Sale price
£88.50
Regular price
£118.00
Excl. VAT
Dial Thickness Gauges are used for measuring the thickness of a very wide range of materials
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Thickness Gauges
- range 0-0.5"
- display type Non-Digital
- graduations 0.001"
- accuracy ±0.001"
- bezel dia 2.24"
- measuring force 1.4 N or less
- measuring units Imperial
- stem dia 8mm0.375"
- throat depth 1.18"
- remarks Standard/ ceramic plunger/anvil
- contact point 0.39" Diameter
description
description
Dial thickness gauges can quickly measure the thickness of thin products. Integrated moulding of the bezel and crystal ensures protection against water and oil penetration via the front face.
