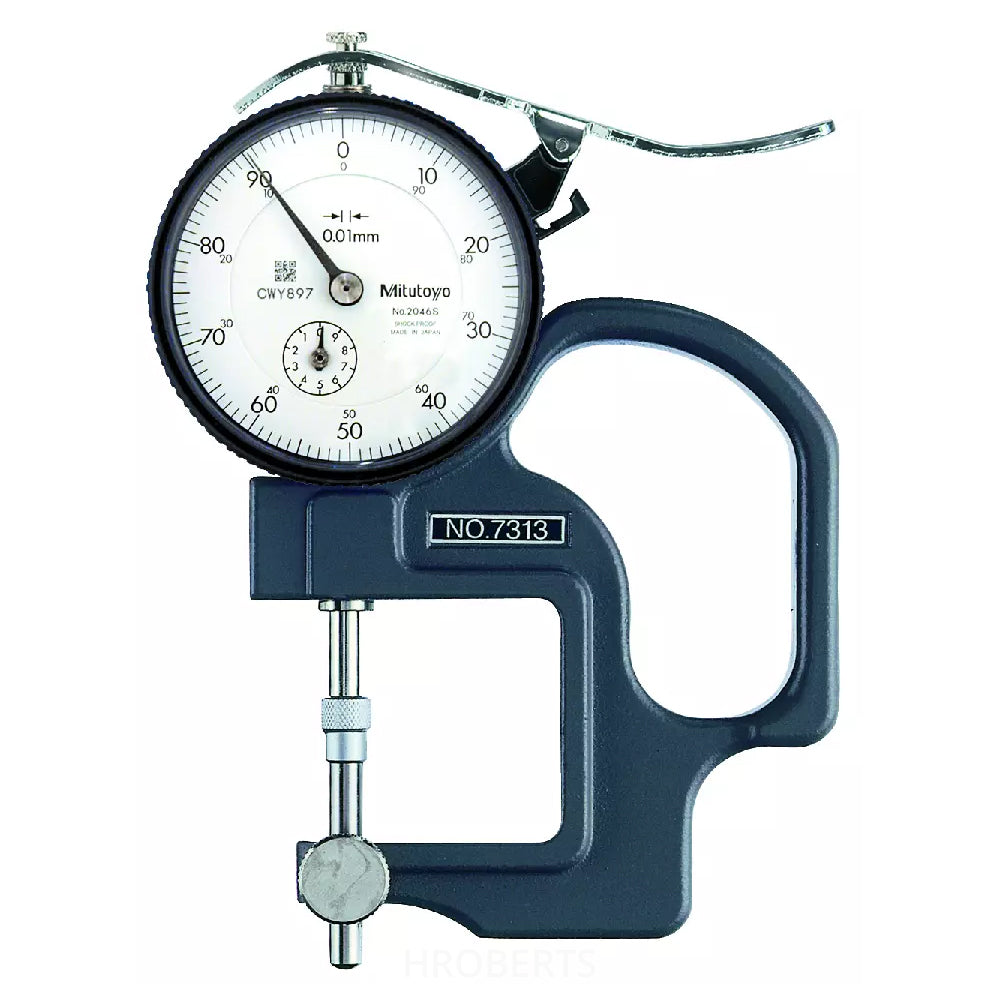

Mitutoyo 7313A Dial Thickness Gauge, Range 0-10mm, Graduation 0.01mm
SKU:Code: 7313A
Sale
Sold out
Regular price
£99.00
Save: 25%
Sold out
Sale price
£99.00
Regular price
£132.00
Excl. VAT
Lens thickness measurement type. Thickness of concave-convex lenses and surfaces can be measured. Anvils and contact points are interchangeable to enable concave surfaces to be measured. Provided with a ball point
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Thickness Gauges
- range 0-10mm
- display type Non-Digital
- graduations 0.01mm
- accuracy ±15 μm
- bezel dia 57mm
- measuring force 1.4 N or less
- measuring units Metric
- stem dia 8mm8mm
- throat depth 30mm
- remarks Lens thickness
- contact point 6mm Contact Point / 4.8mm Anvil
- brand Mitutoyo
description
description
Dial thickness gauges can quickly measure the thickness of thin products. Integrated moulding of the bezel and crystal ensures protection against water and oil penetration via the front face.
