Images are for illustration purposes only - Products may differ.
Mitutoyo

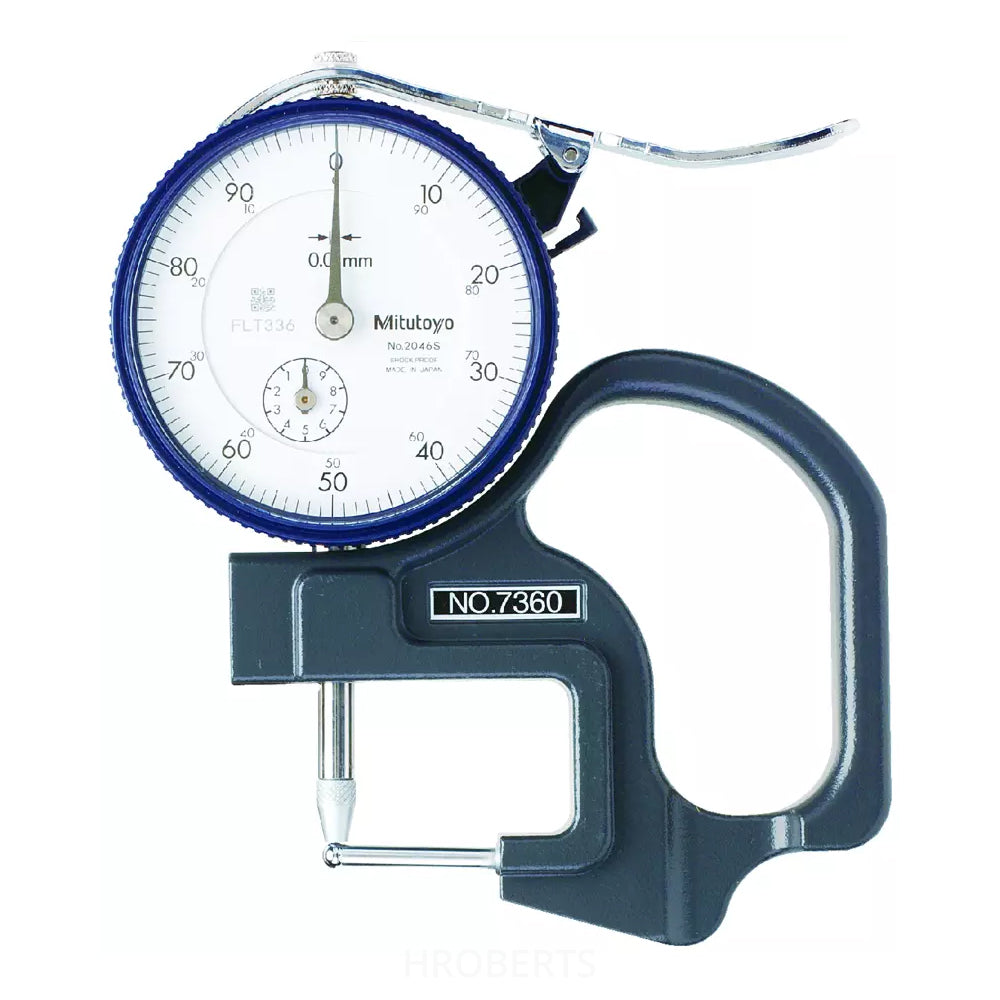

7360A Dial Thickness Gauge, Range 0-10mm, Graduation 0.01mm
SKU:Code: 7360A
Sale
Sold out
Regular price
£85.50
Save: 25%
Sold out
Sale price
£85.50
Regular price
£114.00
Excl. VAT
Tube thickness measurement type. Pipe wall thickness and the thickness of curved boards can be measured
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Thickness Gauges
- range 0-10mm
- display type Non-Digital
- graduations 0.01mm
- accuracy ±15 μm
- bezel dia 57mm
- measuring force 1.4 N or less
- measuring units Metric
- stem dia 8mm8mm
- throat depth 20mm
- remarks Tube thickness
- contact point 3mm Flat / 3.5mm Ball
description
description
Dial thickness gauges can quickly measure the thickness of thin products. Integrated moulding of the bezel and crystal ensures protection against water and oil penetration via the front face.
technical drawings
PDF downloads
accessories
