Mitutoyo

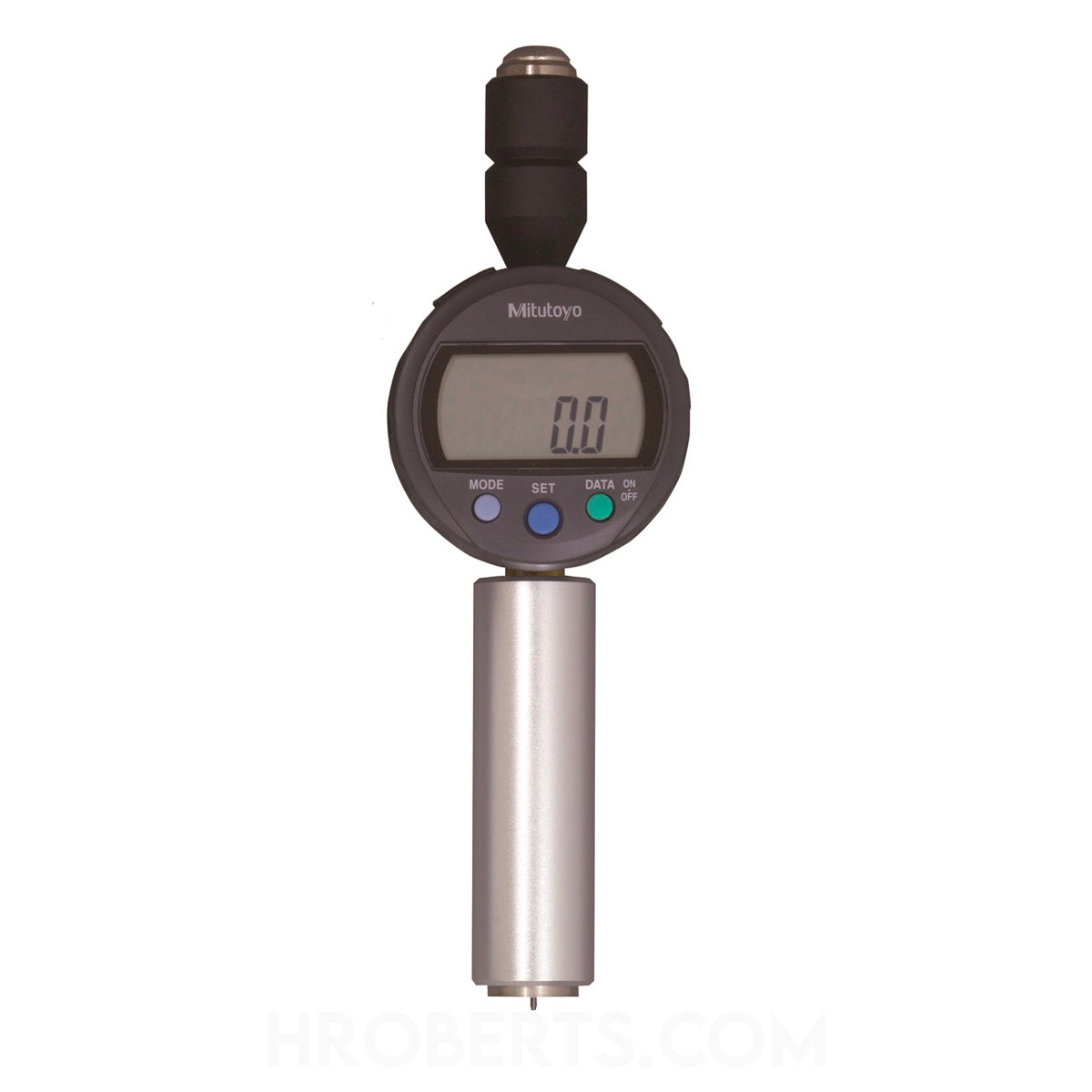

811-334-10 Digimatic Digital Readout Durometer, Model Hardmatic HH-334
SKU:Code: 811-334-10
Sale
Sold out
Regular price
£1,179.00
Save: 10%
Sold out
Sale price
£1,179.00
Regular price
£1,310.00
Excl. VAT
Durometers are essential tools for ensuring that materials meet specific hardness requirements and for quality control in industries where material hardness is a critical factor, such as automotive manufacturing.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Durometer
- range 20-90
- display type Digital
- resolution 0.5
- scale Shore D
- mass 310 g
- tip angle 30º±0.5º
- style Long-leg
- application Hard elastomers plastics hard rubber ebonite etc.
- standards JIS K 7218
- pressure foot size ø18 mm
- spring force 20-90)
- indenter 0.1±0.01 mm)
- indenter diameter 1.25 mm
- indenter protrusion 2.5 mm
- dimensions 60 x 29.5 x 193 mm
description
description
Digimatic Durometers are suitable for testing the hardness of non-metallic materials such as natural rubber, neoprene, polyesters, P.V.C., leather, Thiokol, nitrile rubber, wax, vinyl, cellulose acetates, glass, polystyrene, etc. Units are available reading both in both Shore A and Shore D scales to suit a wide variety of applications. Designed in accordance with the ASTM D 2240, ISO868, ISO 7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications. The Digimatic Durometer is provided with a data hold function for error-free reading.
