Mitutoyo

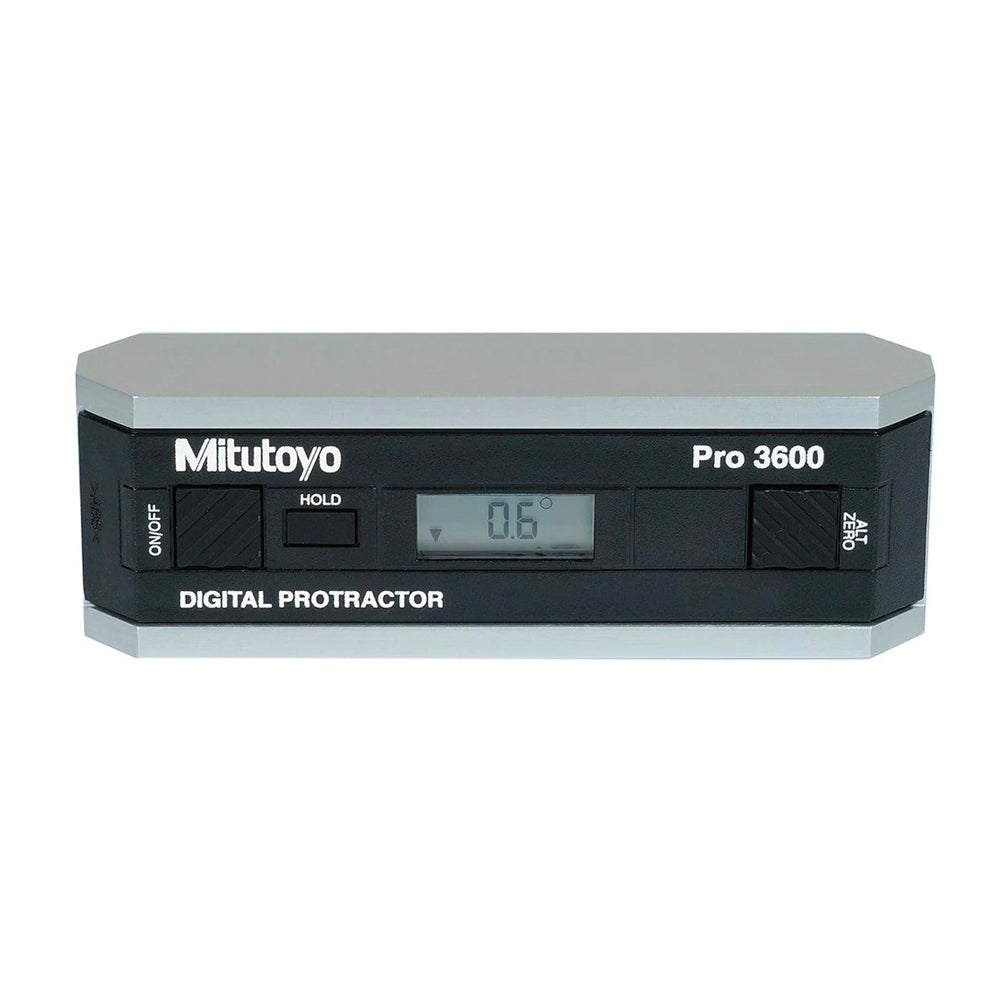

950-318 Digital Protractor 360°, with Data Output
SKU:Code: 950-318
Sale
Sold out
Regular price
£449.25
Save: 25%
Sold out
Sale price
£449.25
Regular price
£599.00
Excl. VAT
A high-resolution Mitutoyo digital protractor/level designed for making precise angle measurements in the vertical plane. The instrument can be zeroed at any angular position and directly indicates the angle between the stock and that position when in use to a resolution of 0.01 degree over a range of +/- 10 degrees (0.1 degree over the remainder of the range). When zeroed at the horizontal, readings are provided in the same manner as a spirit level, but with the advantage of a range extending all the way to the vertical.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 360° (4 x 90°)
- data output Yes
- max permissible errors 0.05 (0 to 10) / 0.1 (80 to 90) / 0.2 (10 to 80)
- repeatability 0.05 Degrees
- battery life Approx 500 Hours
- mass 300g
- battery 9 V Standard Battery
- sensitivity Sensitivity 0.01 (0 to 9.99) 0.1 (10 to 90) Degrees
description
description
Newly developed instrument for measurement of flatness, squareness and angularity.
Precision support surface in aluminum frame for high rigidity and low weight.
