Mitutoyo

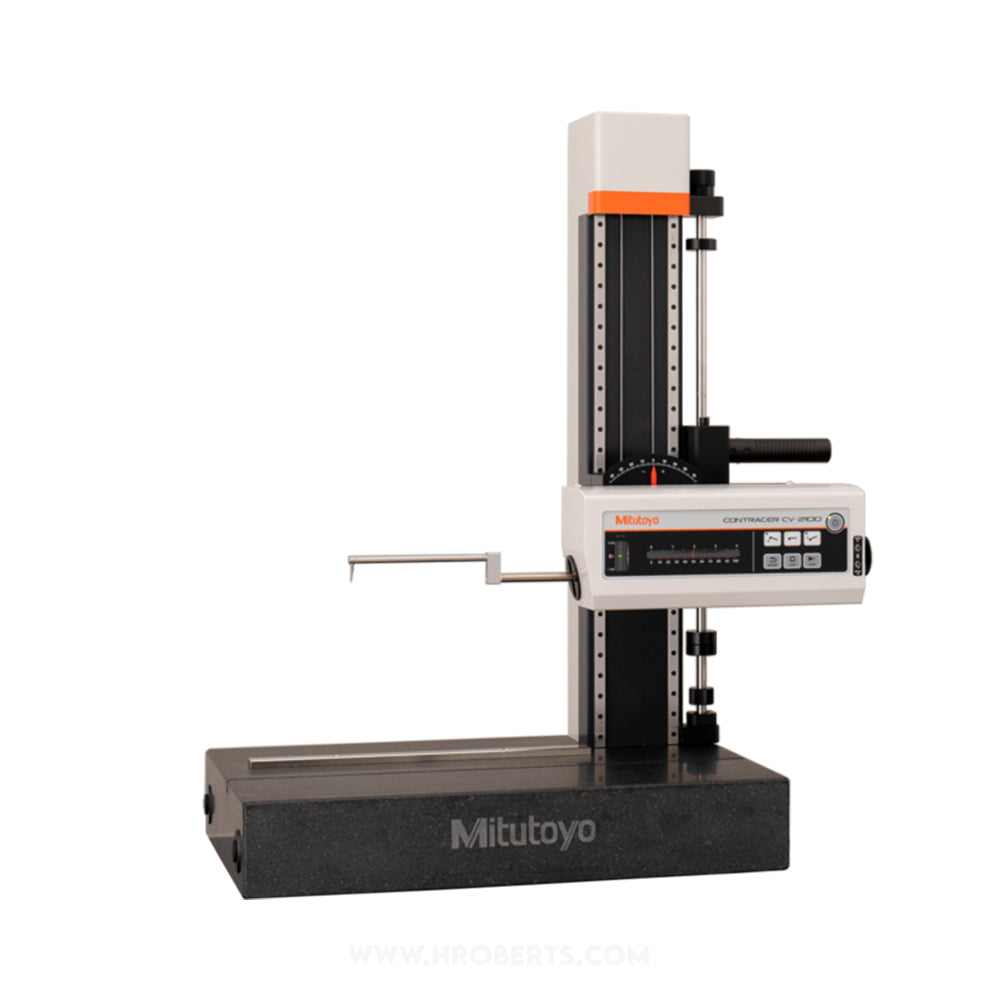

Contracer CV-2100M4
SKU:Code: 218-633-11
Item priced on application.
Request a Price
This contour measuring instrument is designed to support "easy to use" and "speedy"
measurements.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range Z1 = 50mm / X = 100mm
description
description
-
The Contracer CV-2100M4 offer you the following benefits:
- Extensive contour measurement quick and easy.
- Quick movement in Z2 because of an easy to use quick grip. [M4 type]
- Auto execution and multi point measurement with the new stylus up-and down function.
- X-axis drive up to 20 mm/s by jog shuttle.
- Easy part programming as well as single measurement with software FORMTRACEPAK.
- Automatic evaluation, best fit of contours, CAD comparison and many more features as
standard. - CV-2100 M4 mounted with quick grip stand on a granite base column.
- Centralized front control panel.
