Mitutoyo

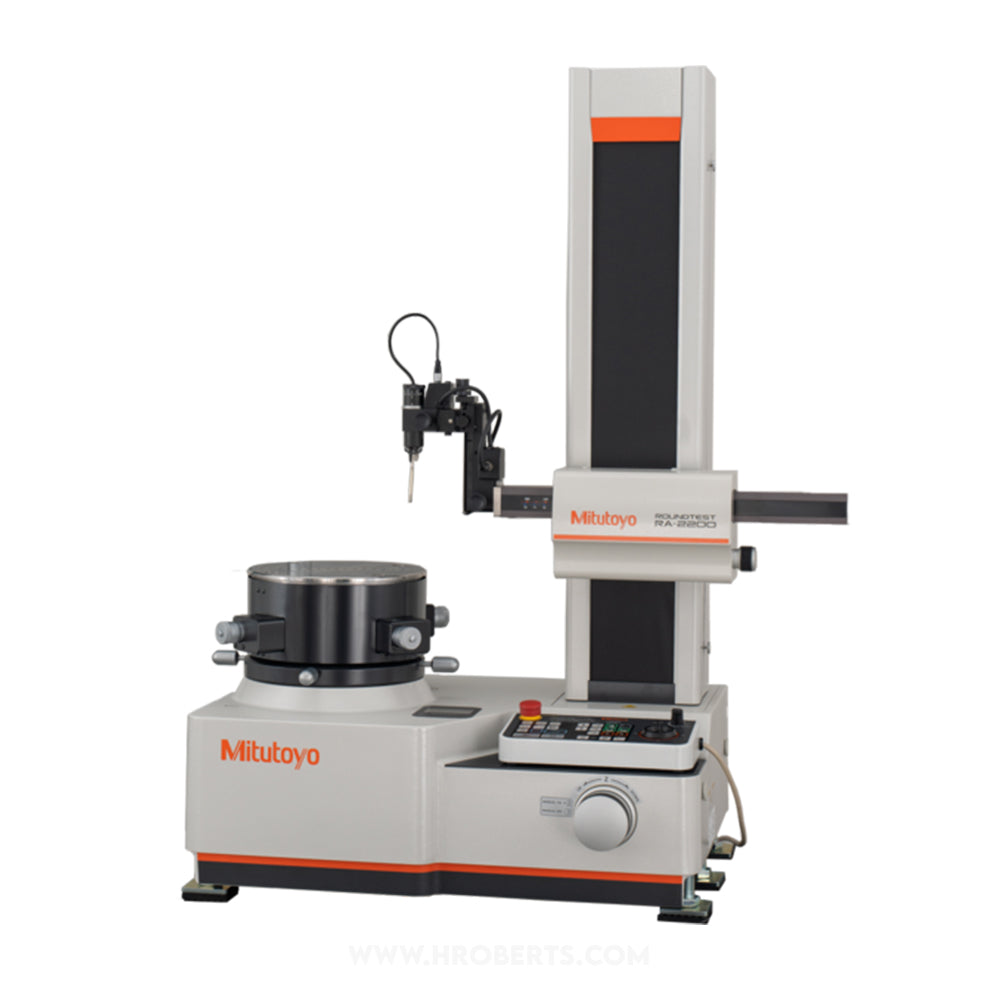

Roundtest RA-2200AH
SKU:Code: 211-512-11
Item priced on application.
Request a Price
This is a highly accurate form measuring system which allows you to measure roundform geometry like cylindricity.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- remarks Max. workpiece ø 580 mm
description
description
The Roundtest RA-2200 offers the following benefits:
It has fully motorised axes movement.
Its extremely high turntable accuracy of (0.02+0.00035H) µm gives you excellent form analysis.
The user friendly software, ROUNDPAK, gives you easy drag and drop usage and a wide range of parameters.
ROUNDPAK also has easy-to-use part programming and single measurement functions.
A huge number of styli provides you with maximum flexibility.
There is an auto follow function for easy and quick pre-centering of the workpiece.
It has fully motorised axes movement.
Its extremely high turntable accuracy of (0.02+0.00035H) µm gives you excellent form analysis.
The user friendly software, ROUNDPAK, gives you easy drag and drop usage and a wide range of parameters.
ROUNDPAK also has easy-to-use part programming and single measurement functions.
A huge number of styli provides you with maximum flexibility.
There is an auto follow function for easy and quick pre-centering of the workpiece.
