Moore & Wright

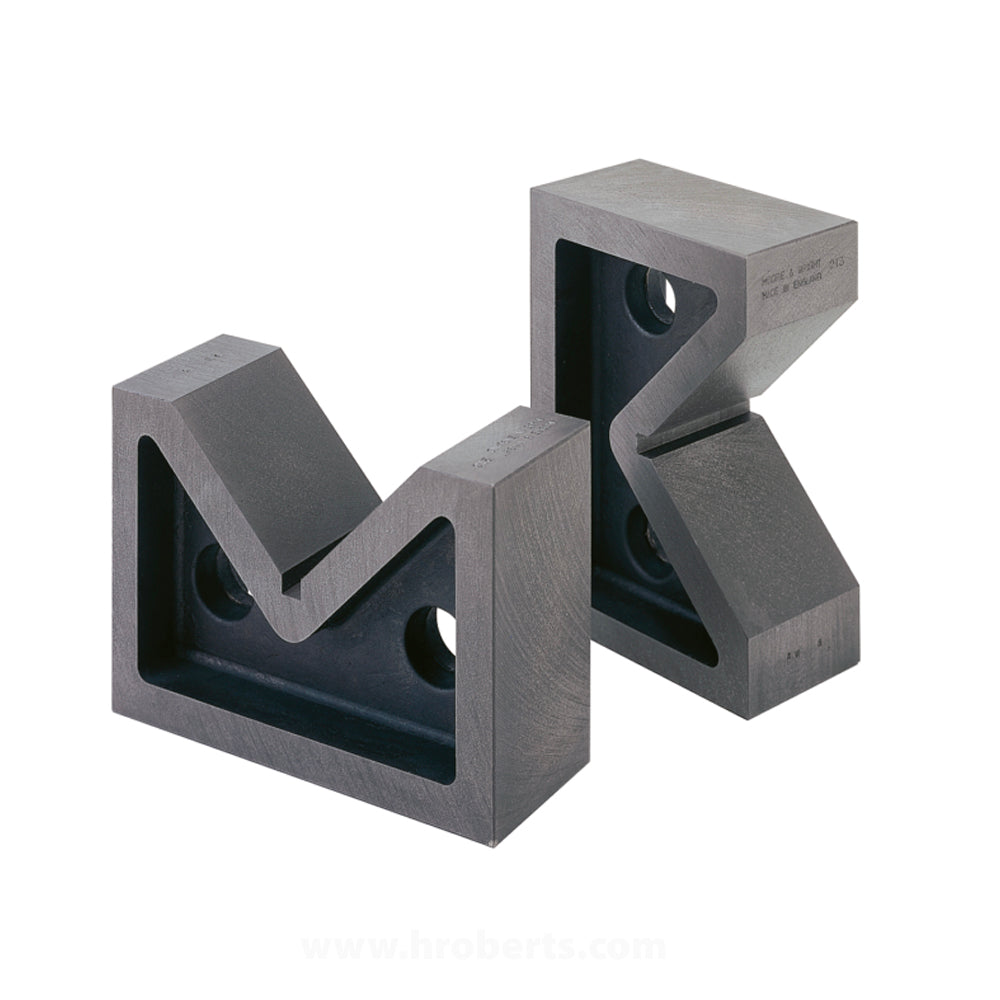

Moore & Wright 214 Vee Blocks Matched Pair, Capacity 125mm / 4.92"
SKU:Code: 214
Item priced on application.
Request a Price
Manufactured from close grained cast iron, The Moore & Wright Traditional 'V' Blocks boast ground faces and are supplied in matched and numbered pairs.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Vee Block
- accuracy 0.05mm / 0.0020"
- length 54mm / 2.15"
- measuring units Metric / Imperial
- width 154mm / 6.06"
- height 104mm / 4.09"
- capacity 125mm / 4.92"
description
description
Vee blocks, often spelled as "V-blocks," are precision tools used in various machining, inspection, and assembly applications, primarily in metalworking and engineering fields. They are designed to securely hold and support cylindrical or round workpieces in a V-shaped groove, ensuring that the workpiece is held firmly and centered during tasks like drilling, milling, grinding, or inspection. Vee blocks are an essential tool for achieving accuracy and precision in these processes.
