Moore & Wright

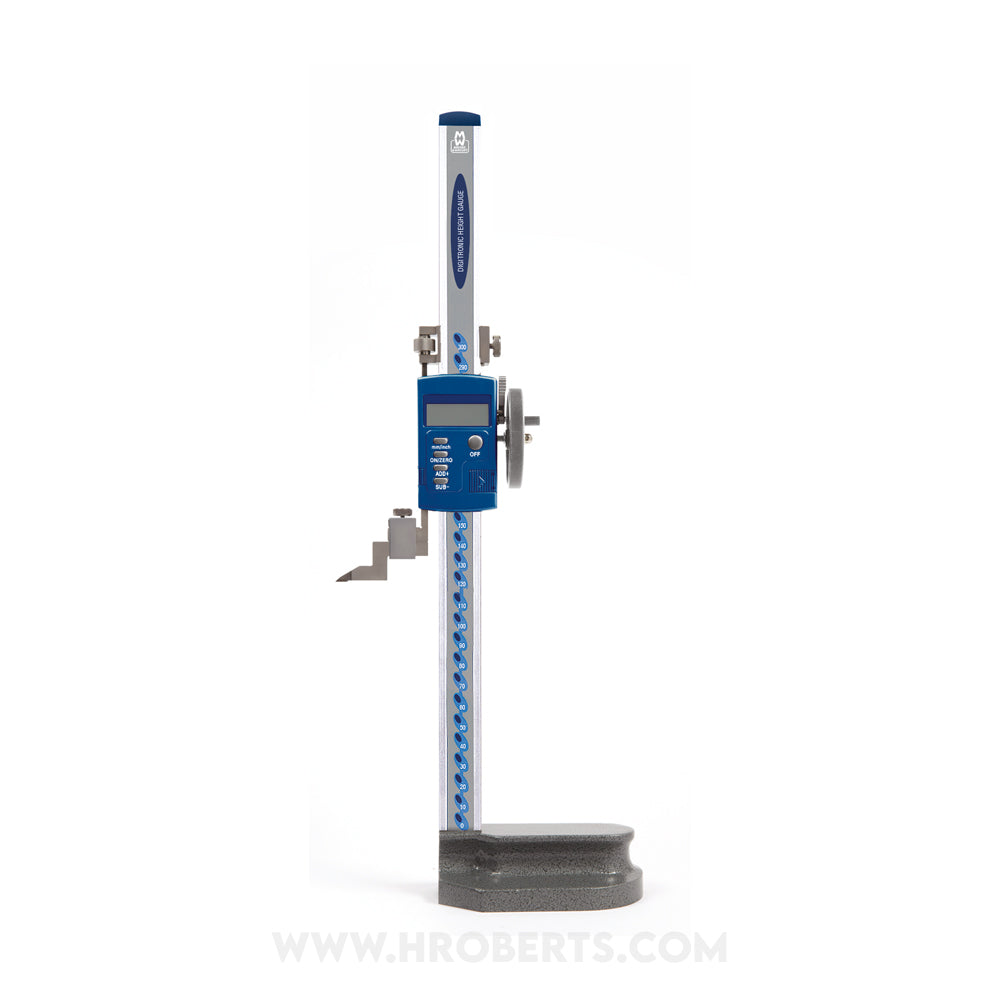

Moore & Wright MW193-30DDL Digital Height Gauge, Range 0-300mm, Resolution 0.01mm
SKU:Code: MW193-30DDL
Sale
Sold out
Regular price
£447.60
Save: 20%
Sold out
Sale price
£447.60
Regular price
£559.50
Excl. VAT
The Moore & Wright 193 series digital height gauge is a robust, easy to use height gauge featuring fine adjustment for high precision measurement.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Scribing
- range 0-300mm
- display type Digital
- resolution 0.01mm
- accuracy 0.04mm
- data output No
- measuring units Metric
- brand Moore & Wright
description
description
Easy to read LCD Display, Functions: mm/inch conversion, on/off, zero setting, battery low indication,Ground & Micro lapped measuring surfaces, Fine adjustment for high precision measurement,Hand wheel operation with positive lock, Supplied with carbide tipped scriber
