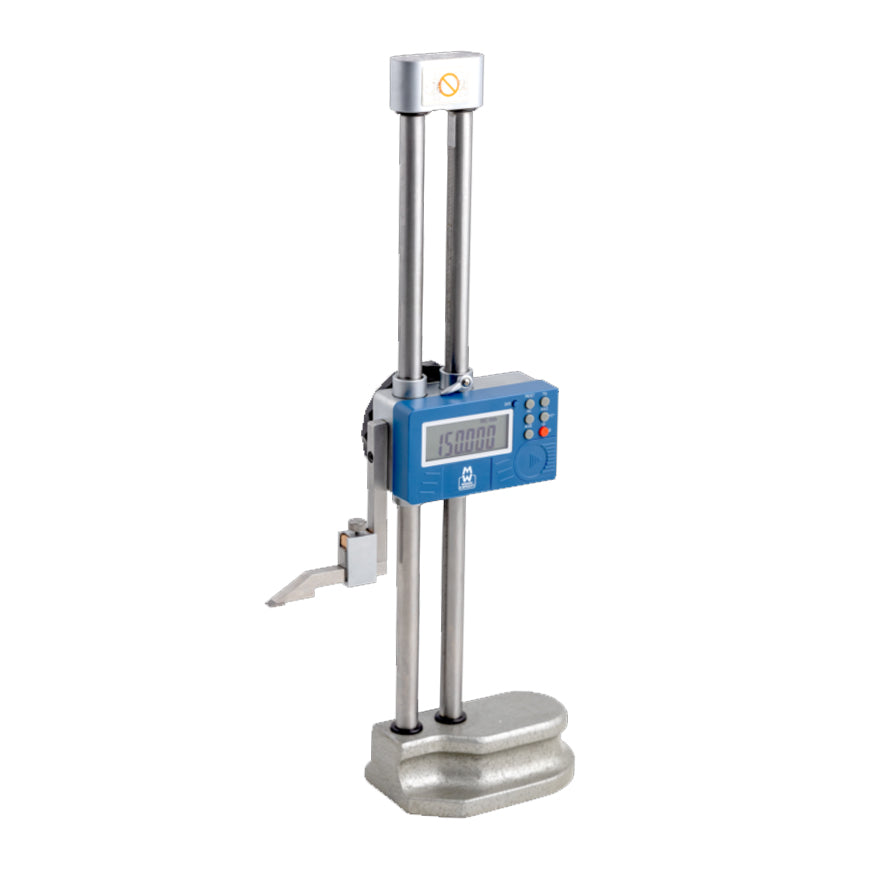

Moore & Wright MW197-30DDL Digital Height Gauge with Data output, Range 0-300mm / 0-12", Resolution 0.01mm / 0.001"
SKU:Code: MW197-30DDL
Sale
Sold out
Regular price
£297.50
Save: 30%
Sold out
Sale price
£297.50
Regular price
£425.00
Excl. VAT
The MW197 series height gauge from Moore & Wright is designed for accuracy and ease of use in any workshop. Featuring a large backlit colour LCD display and wireless data transfer capabilities, this digital height gauge includes a large handwheel for fine raising and lowering of the carbide tipped measuring scribe and boasts IP40 ingress protection. Supplied in a hard protective case.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Scribing
- range 0-300mm / 0-12"
- display type Digital
- resolution 0.01mm / 0.001"
- accuracy 0.04mm
- data output Yes
- ip rating IP40
- measuring units Metric / Imperial
- brand Moore & Wright
description
description

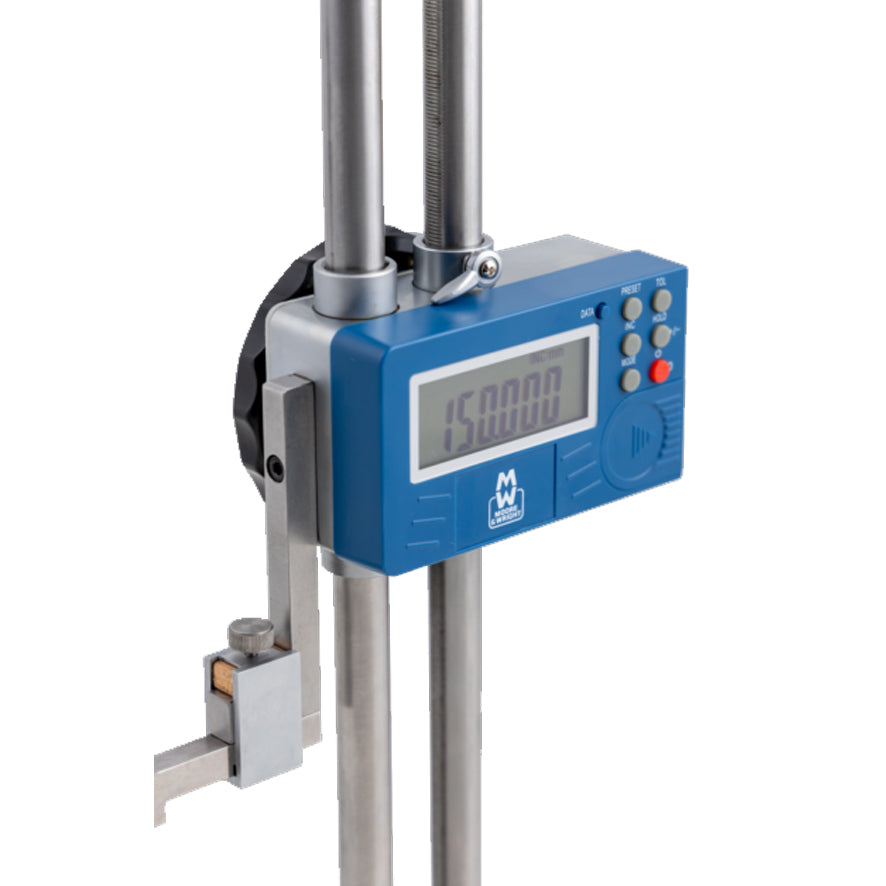

• Large backlit colour LCD display
• Built in Bluetooth for data input direct to a Windows application (Excel, Word, Notepad)
• Absolute and incremental functions with measurement hold
• Tolerance setting for Go/No Go indication
• Large handwheel for fine raising and lowering of carbide tipped measuring scribe
• 3V lithium battery CR2450, estimated battery life approximately 1 year
• IP40 ingress protection

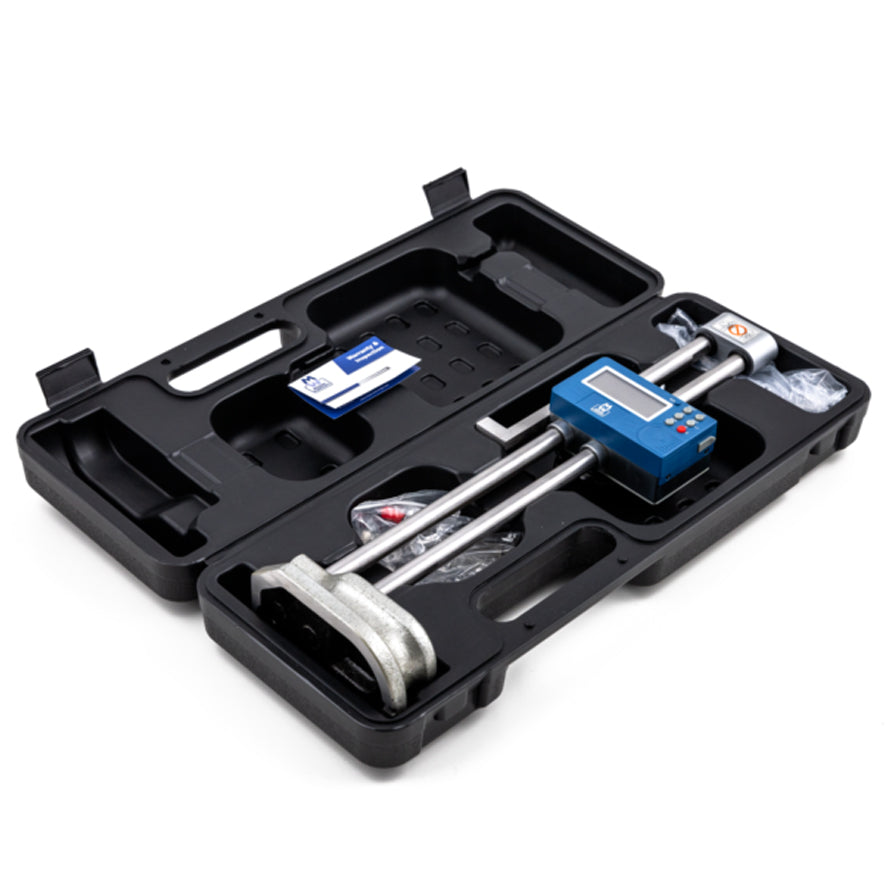

• Hard protective plastic case
