Moore & Wright

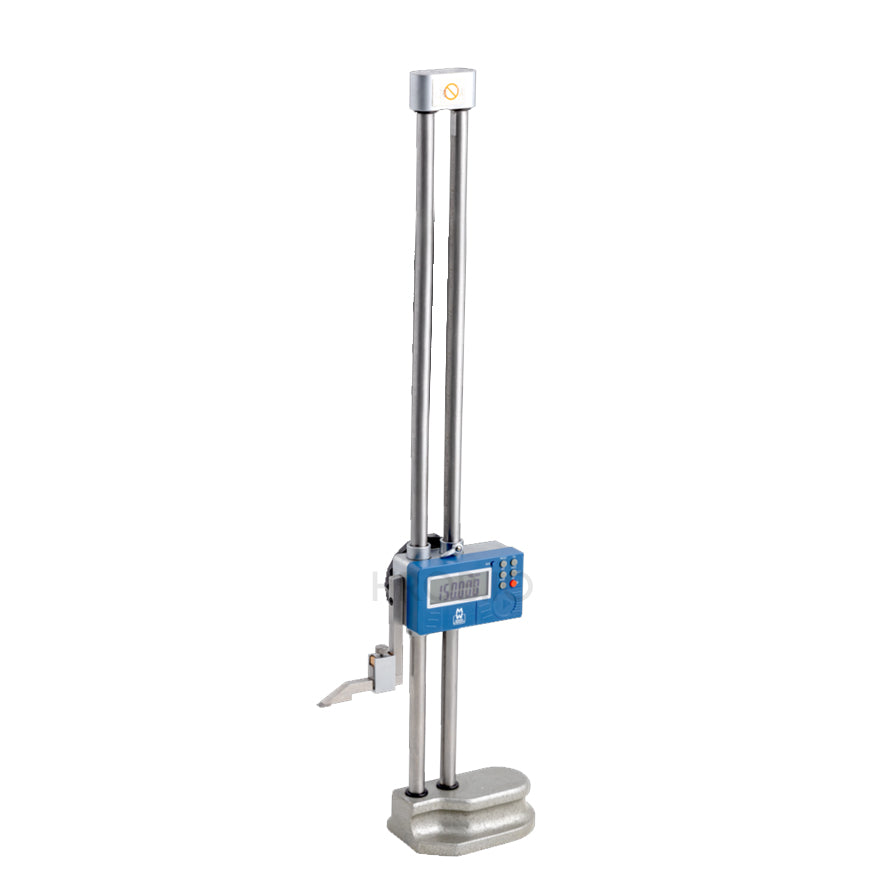

Moore & Wright MW197-60DDL Digital Height Gauge with Data Output, Range 0-600mm / 0-24", Resolution 0.01mm / 0.001"
SKU:Code: MW197-60DDL
Sale
Sold out
Regular price
£419.30
Save: 30%
Sold out
Sale price
£419.30
Regular price
£599.00
Excl. VAT
The MW197 series height gauge from Moore & Wright is designed for accuracy and ease of use in any workshop. Featuring a large backlit colour LCD display and wireless data transfer capabilities, this digital height gauge includes a large handwheel for fine raising and lowering of the carbide tipped measuring scribe and boasts IP40 ingress protection. Supplied in a hard protective case.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Scribing
- range 0-600mm / 0-24"
- display type Digital
- resolution 0.01mm / 0.001"
- accuracy 0.05mm
- data output Yes
- ip rating IP40
- measuring units Metric / Imperial
- brand Moore & Wright
description
description

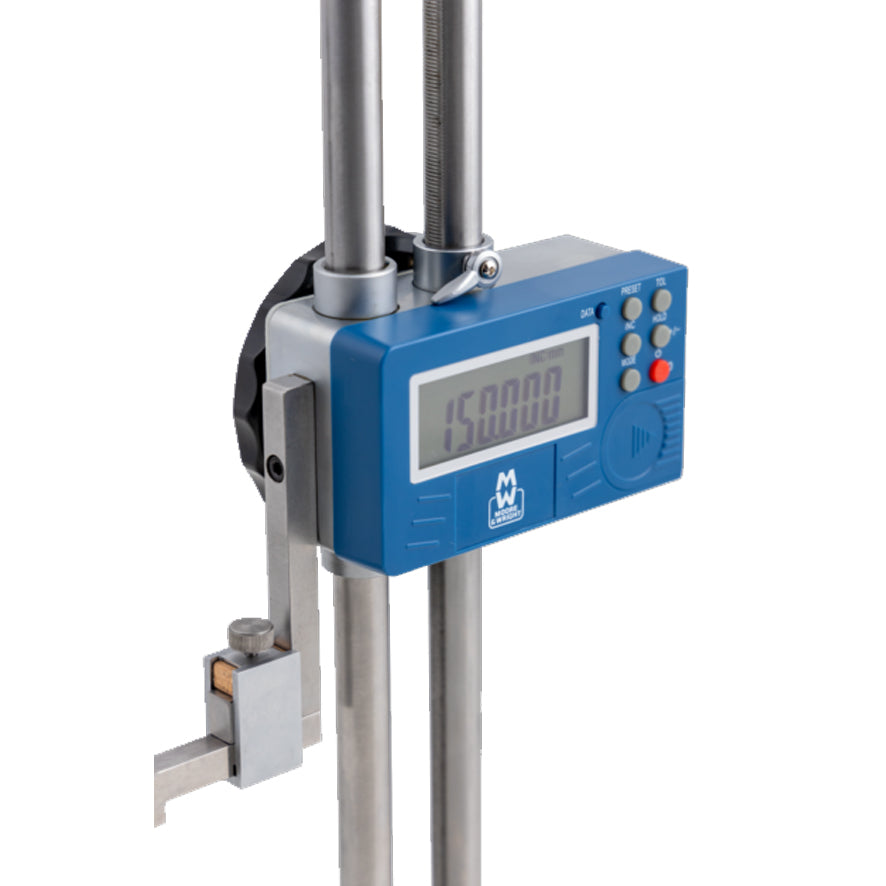

- Large backlit colour LCD display
- Built in wireless data transfer for data input directly to a Windows application (Excel, Word, Notepad)
- Absolute and incremental functions with measurement hold
- 1.6m/s response speed
- Tolerance setting for Go/No Go indication
- Large handwheel for fine raising and lowering of carbide tipped measuring scribe
- IP40 ingress protection

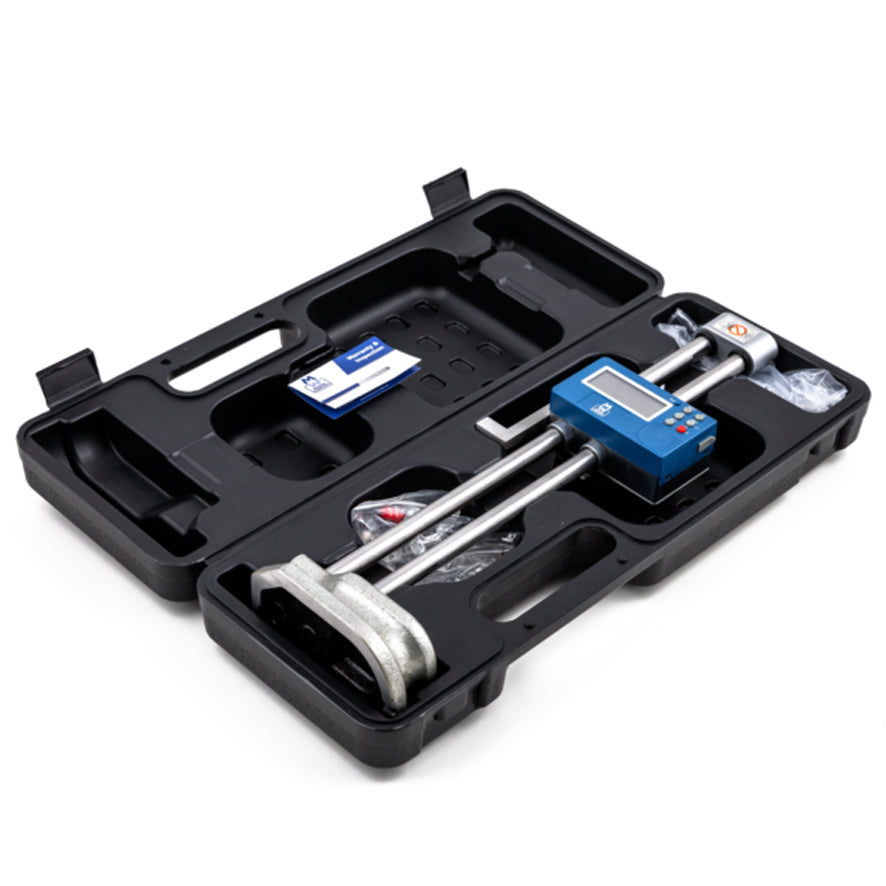

- Hard protective plastic case
- Working temperature = 0-40°C
- External Power port
- CR2450 lithium battery
- Automatic power off
