Plastiform

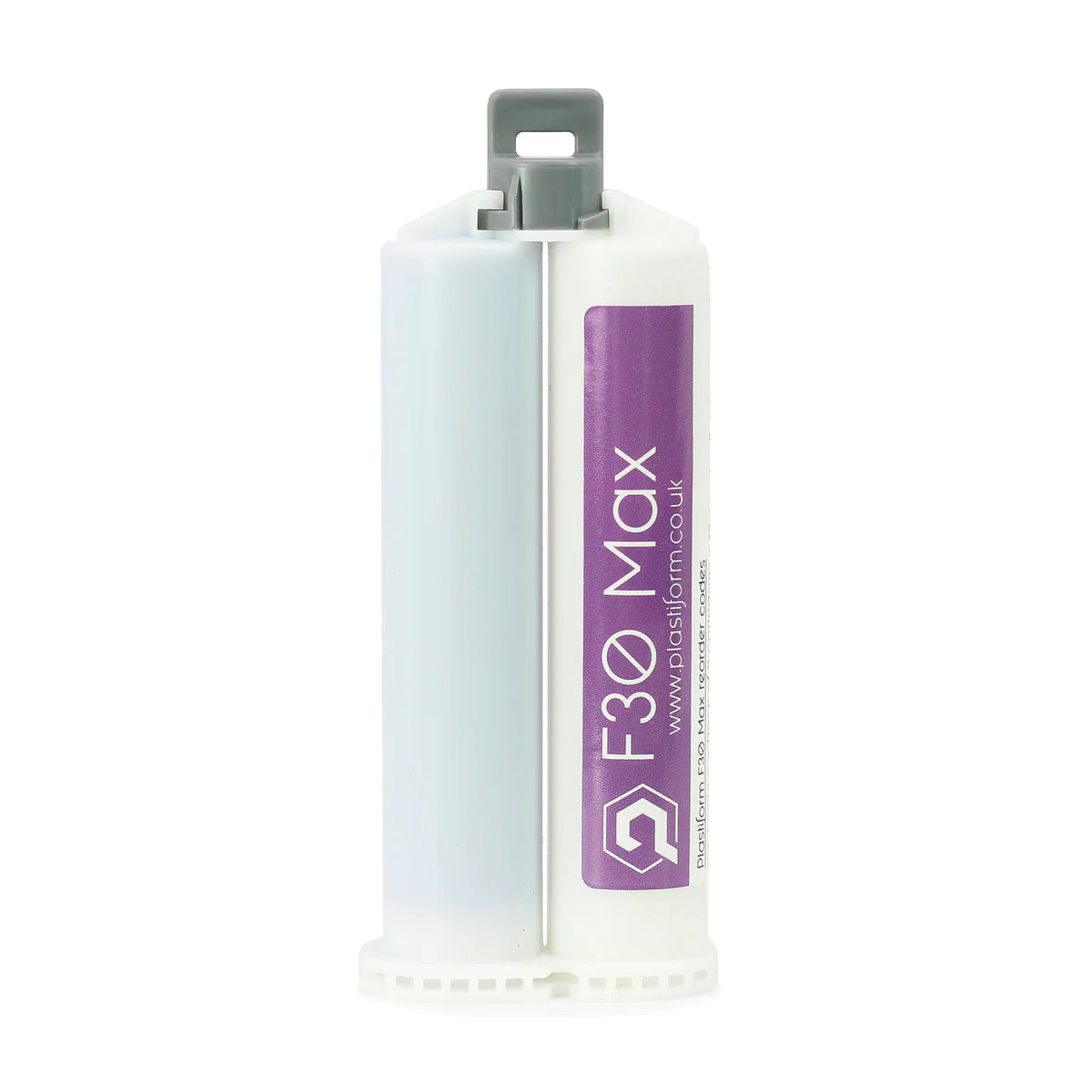

F30M Replicating Compound
SKU:Code: CA-F30M-2
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Cartridge
- accuracy 1 Micron
- colour Purple
- final consistency Flexible
- final hardness shore a 30 Shore A
- initial consistency Fluid
- size 50ml Cartrigdge
- remarks Recommend for Internal Complex forms
- working time 2 Minutes
- setting time 25 Mins (At 20 Degrees C)
- can it be cut No
F30 Max is a fluid product that can be injected into very complex parts. As long as the diameter is greater than 0.1 mm, the product easily infiltrates into parts of any size. The final impression is also very flexible and very resistant (hardness of about 30 Shore A). It withstands a very high extraction stress (up to 40%).
The F30 Max is also the most elastic and resistant product in the range. Its replica can not withstand high elongations and high stresses. On the other hand, it is a difficult product to apply. It requires special technical skills to properly remove air bubbles. Its extreme elongation capacity allows it to be used for very complex internal shape impressions (threads, grooves or internal grooves…).
As with any Plastiform, it creates very precise copies. It reproduces in great detail the dimensional characteristics, as well as all the surface details (shape, dimension, appearance, surface condition…) of the part.
It is sometimes difficult to extract the impression of F30 Max because it is usually used for very high stresses. We recommend that you contact a Plastiform expert to evaluate the application before you commit to it. In line with other Plastiforms, the impression leaves no residue behind.
