Red Range

Red Range VIPBV2 Bore Viewer Set

Code: VIPBV2

Sale Sold out £815.00
Save:  Sold out £815.00 £815.00
Excl. VAT
Visual Bore Viewer are essential tools for any industry to visually inspect internal features. Essential product for any industry involved in machining materials to security For all inspection work where your vision is obscured. Used by Anti-Bomb Squads, Drug Squads, Airport Security, Armed Services and Security Guards for searching Aircraft, Ships, Cars, Trucks, Buildings and Manufacturing of Aircraft and Car engine parts We also offer Bespoke Sets, please contact us for more info.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • remarks Recommended for Bores 3-12.5mm
description

Viewing Bore Diameters from 3mm to 12.5mm, Probe Length 50, 75, 150, 200mm, Visual Illuminated LED Cool White Bulb

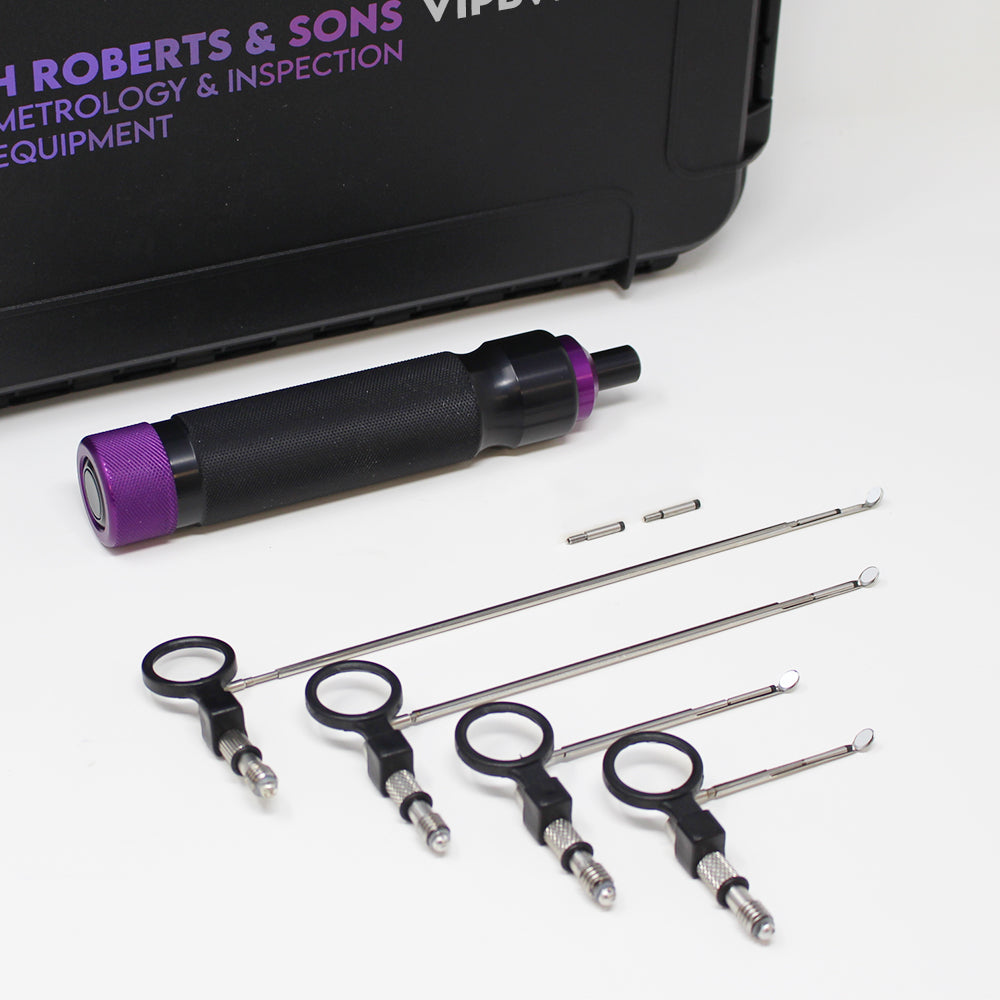

Comprising of the following:
Code BH-20 Battery Handle
Code LP2-50 Bore Viewer Probe Length 50mm, LED Cool White Bulb Magnification Lens 4x
Code LP2-75 Bore Viewer Probe Length 75mm, LED Cool White Bulb Magnification Lens 3x
Code LP2-150 Bore Viewer Probe Length 150mm, LED Cool White Bulb Magnification Lens 2x
Code LP2-200 Bore Viewer Probe Length 200mm, LED Cool White Bulb Magnification Lens 2x
Code S2-50 Side Viewing Mirror Sleeve Length 50mm
Code S2-75 Side Viewing Mirror Sleeve Length 75mm
Code S2-150 Side Viewing Mirror Sleeve Length 150mm
Code S3-200 Side Viewing Mirror Sleeve Length 200mm
Code 2W Spare LED Cool White Bulb
Code 2P Spare LED Cool White Bulb
Code 120-810 Batteries x 2
Probes are fitting with LED Cool White Bulbs
Viewing Bore Diameters from 3mm to 8mm without Mirror Sleeve
Viewing Bore Diameters from 8mm to 12.5mm with Mirror Sleeve

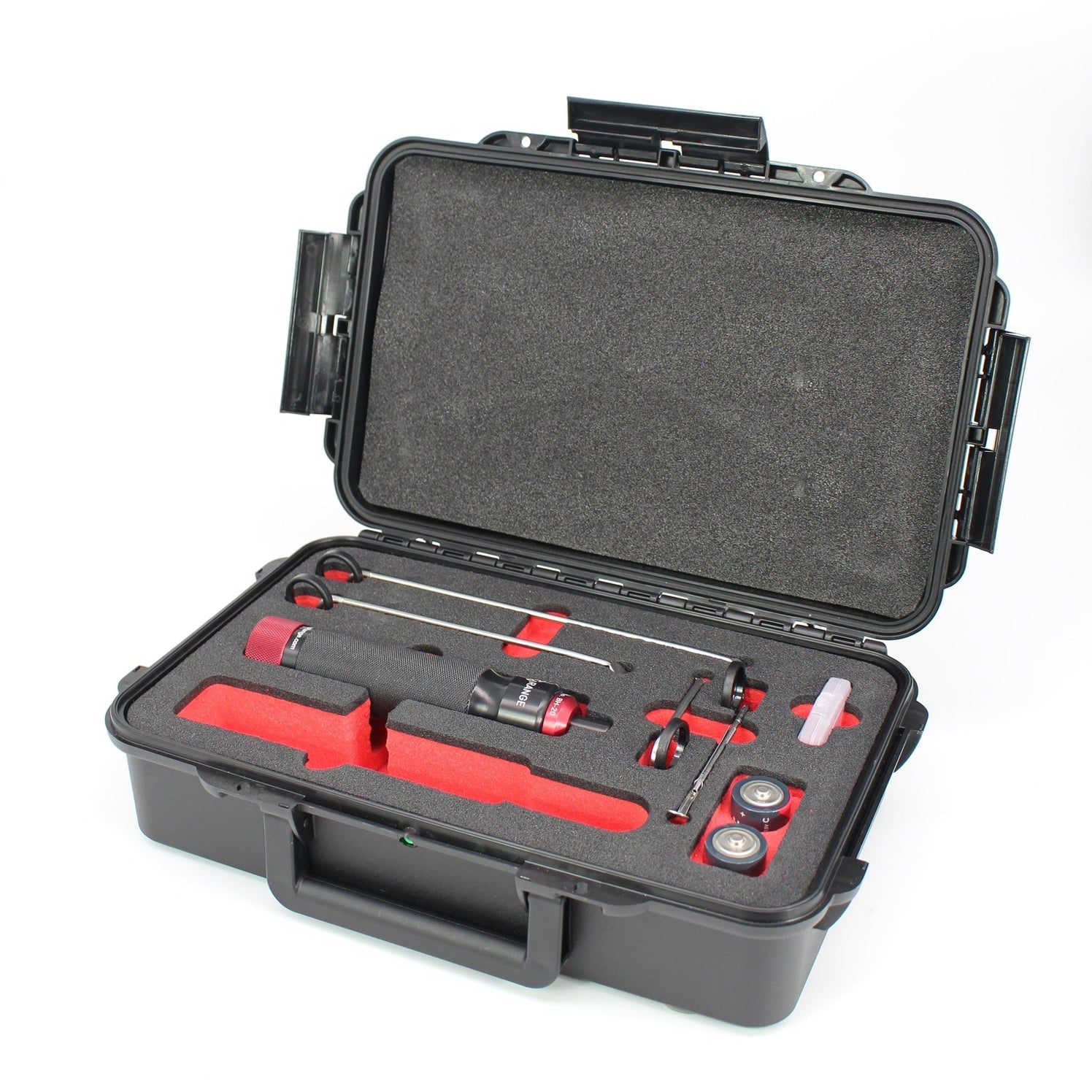

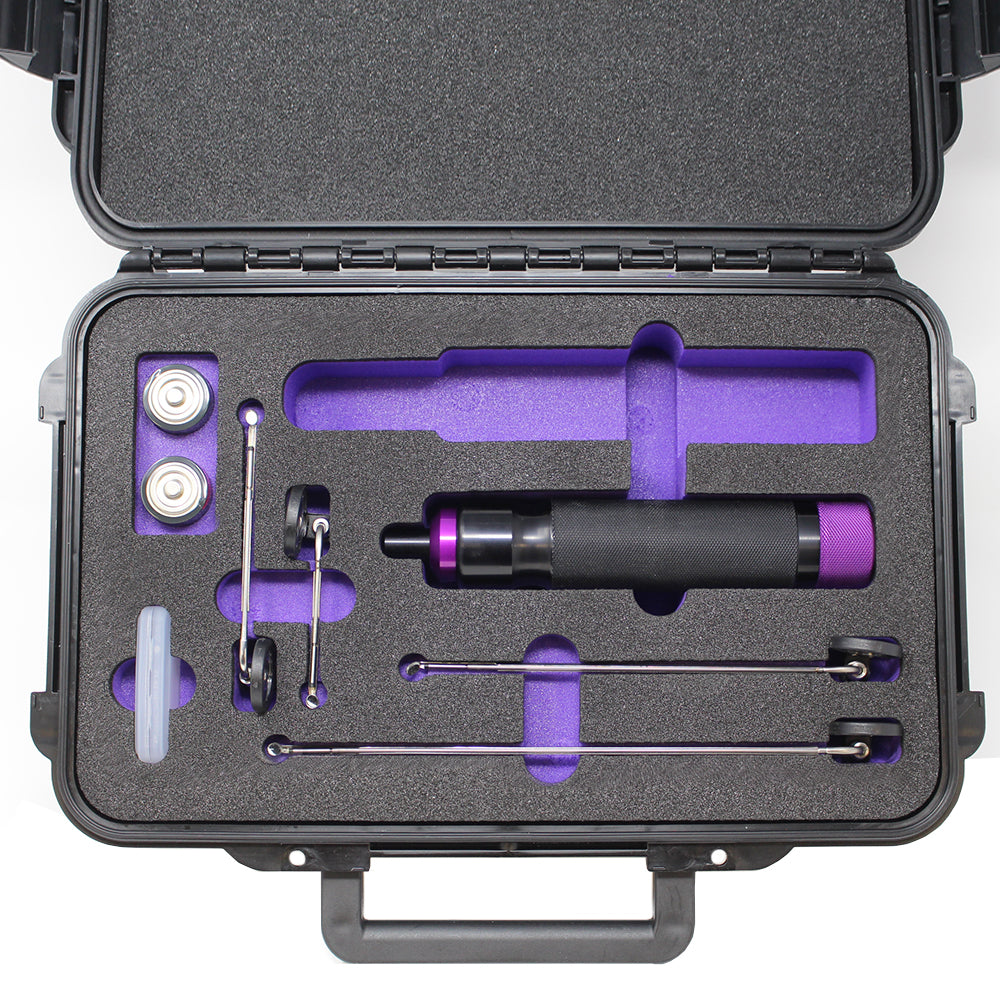

Supplied in Tough IP67 Rated Case which are watertight, airtight and shockproof, our goal is to offer maximum protection to all our products Code 120-813-10
Total Weight 1Kg
