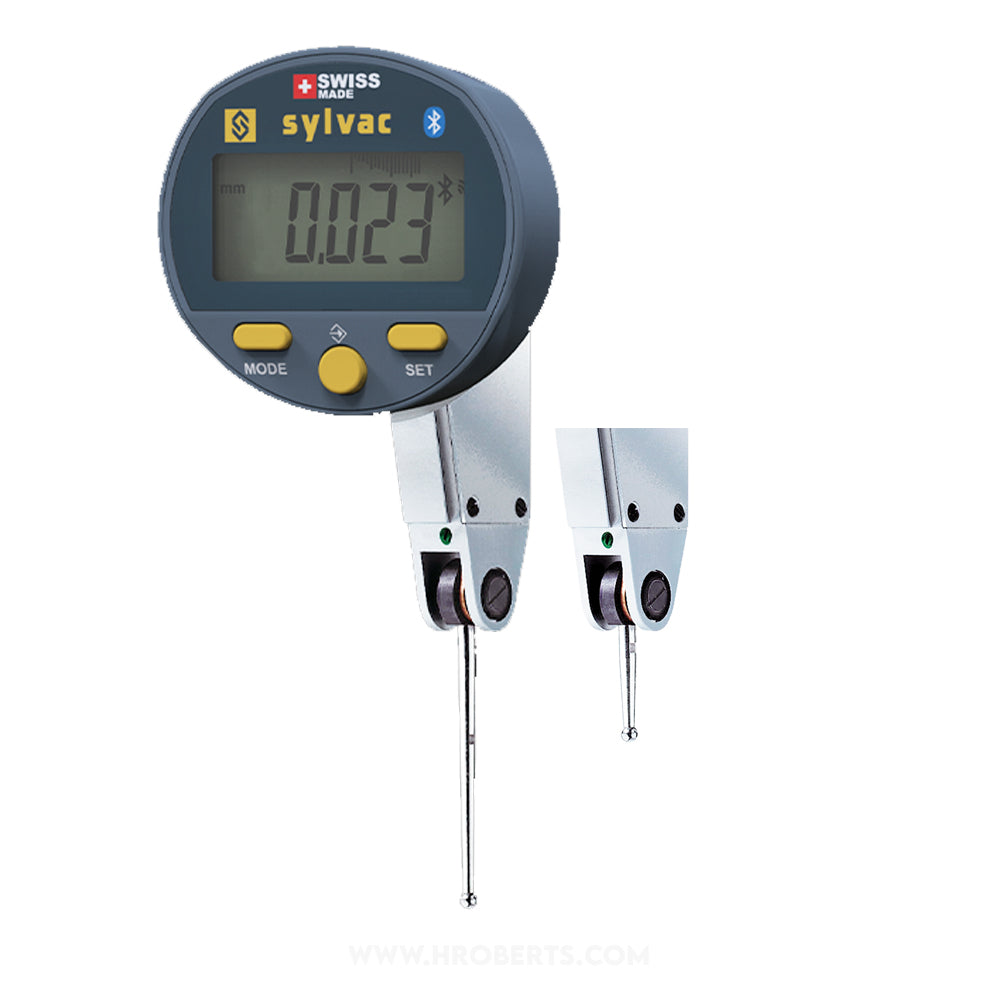

30-805-4323 Digital Lever Indicator Horizontal Type, Resolution 0.001mm / 0.00005", Range 0.8mm / 2.0mm, Stlyus Length 12.5mm / 36.5mm
SKU:Code: 30-805-4323
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Horizontal Type
- range 0.8mm / 2.0mm
- display type Digital
- resolution 0.001mm / 0.00005"
- accuracy 3 µm - 8 µm
- bezel dia 45mm
- data output Yes
- ip rating IP54
- measuring units Metric / Imperial
- bluetooth Yes
- stylus length 12.5mm / 36.5mm
- contact point Carbide
- contact point thread M1.4
- repeatability limit 1 µm
First digital test indicator with integrated Bluetooth system, Instrument for checking roundness and flatness, Data transfer by sending a request or by foot pedal, Compact housing Ø 45 mm rotatable by 270°. Revolutionary mechanical construction, without gears or gears, which eliminates hysteresis error, Digital display resolution 0.001 mm with analogue scale, M1.4 stylus with Ø 2 mm tungsten carbide ball, swivelling and interchangeable, Available in 3 versions : Model with stylus length 12 mm, measuring range 0.8 mm Model with stylus length 36 mm, measuring range 2.0 mm, Combination model for 12 and 36 mm styli (supplied with both styli), measuring range 0.8/2.0 mm, Protected against liquids IP56
