Sylvac

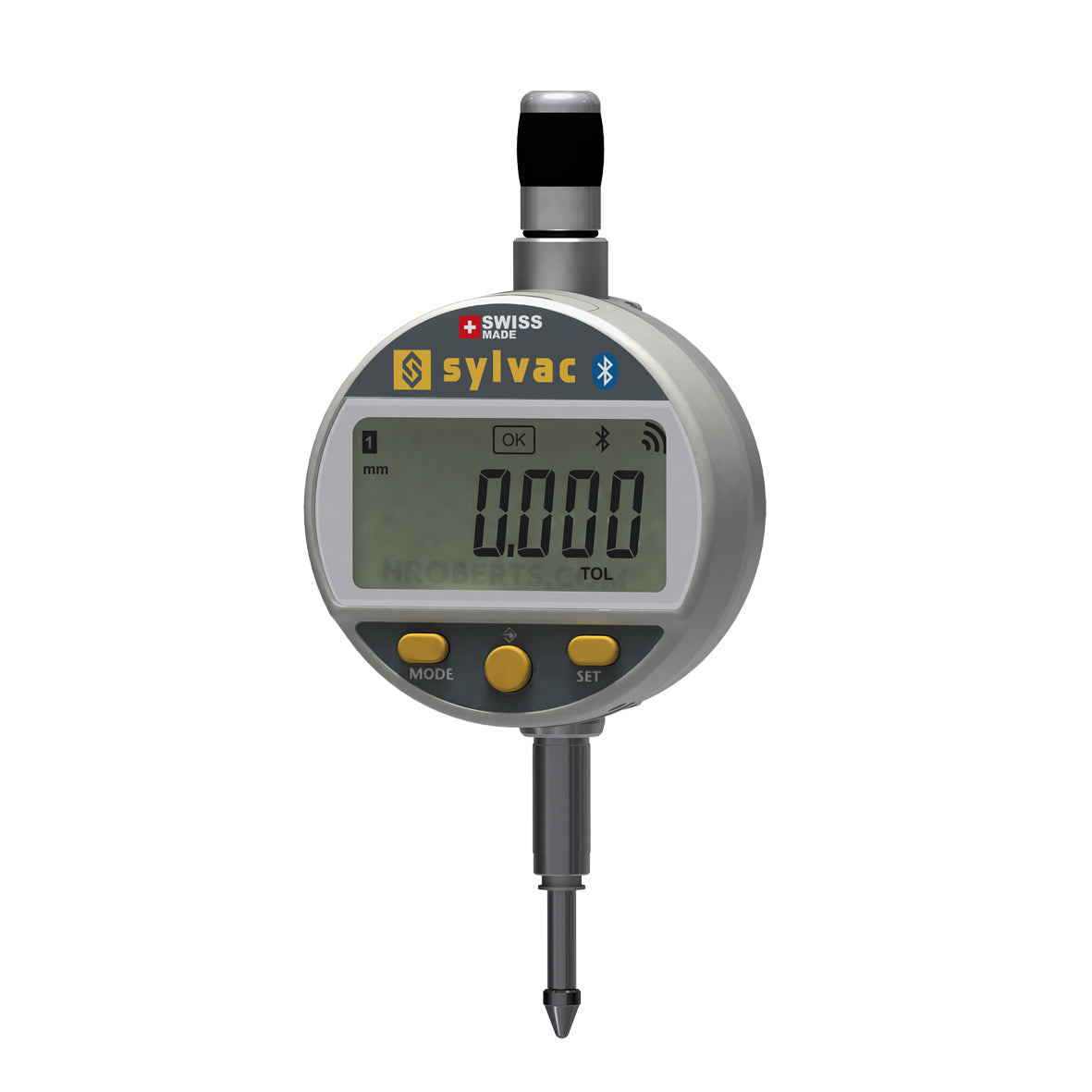

30-805-6501 Advanced Digital Indicator, Range 25mm / 1", Resolution 0.001mm / 0.00005"
SKU:Code: 30-805-6501
Sale
Sold out
Regular price
£646.00
Save: 15%
Sold out
Sale price
£646.00
Regular price
£760.00
Excl. VAT
Robust digital comparator with Ø 59.5 mm housing rotatable by 270°
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 25mm / 1"
- display type Digital
- resolution 0.001mm / 0.00005"
- bezel dia 59.5mm
- data output Yes
- ip rating IP54
- measuring units Metric / Imperial
- stem dia 8mm
- contact point thread M2.5
- back Flatback
description
description
Robust digital comparator with Ø 59.5 mm housing rotatable by 270°. Large display resolution 0.001 mm,Integrated Bluetooth® system, Large display with colour LED tolerance status indication, Three buttons, including the central button with selectable favourite function, Wide range of functions, including MIN/MAX/DELTA, Proximity» and «Power» data outputs allowing the instrument to be used without batteries when connected by this cable. Measuring range selectable: 12.5, 25, 50 and 100 mm, Protection class IP55
