Sylvac

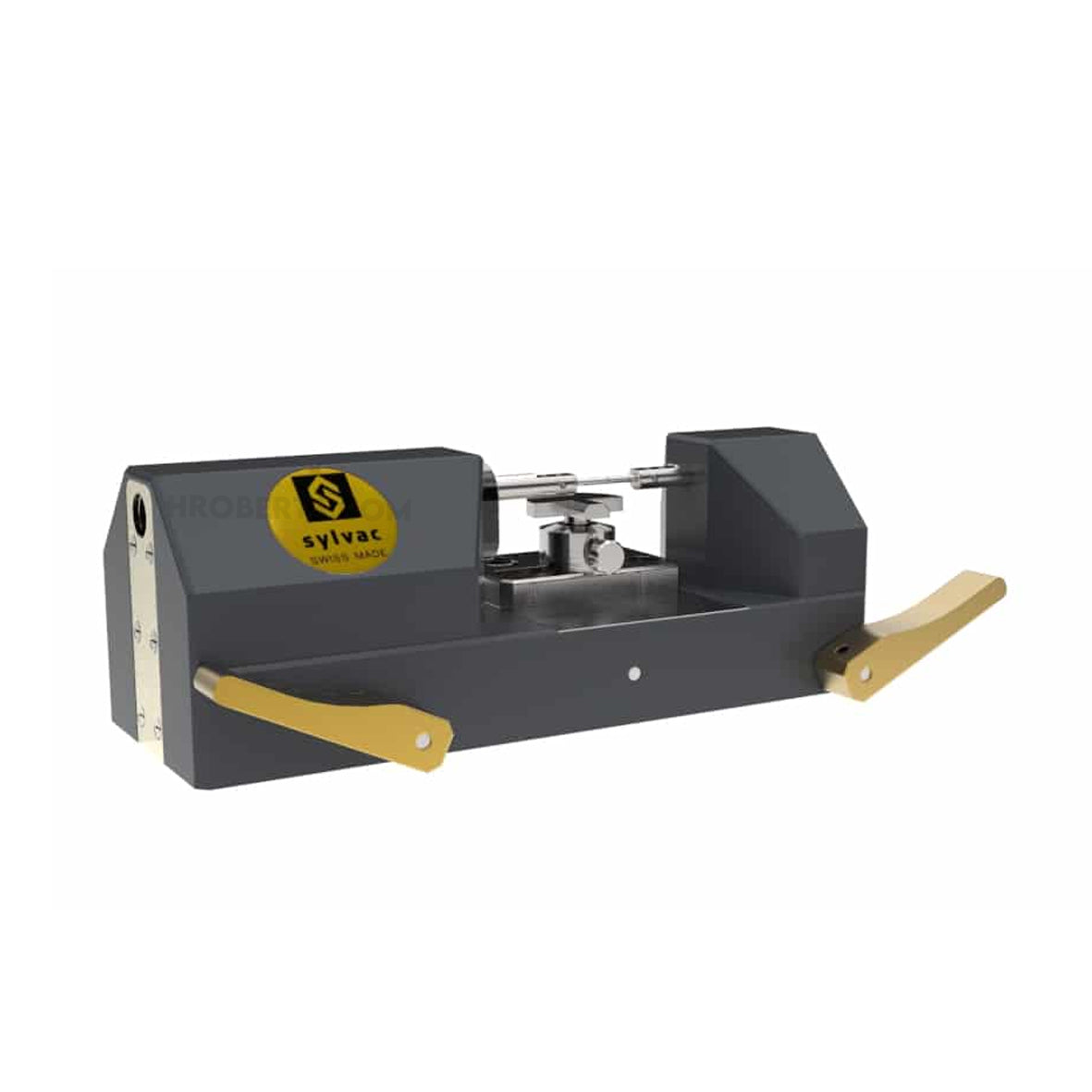

30-808-1215 PS15 Measuring Bench Stand Horizonal with Anvils 1.5mm Diameter without Support Table, Meassuring Range 10mm, Maxium Capacity 20mm
SKU:Code: 30-808-1215
Sale
Sold out
Regular price
£2,161.09
Save: 3%
Sold out
Sale price
£2,161.09
Regular price
£2,216.50
Excl. VAT
Instrument according to technical specifications. Instruction manual. Measuring anvils Ø 1.5 mm. Allen anvils 2 and 2.5 mm. Dust cover
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
description
description
Horizontal precision bench for measuring small external dimensions. Can be equipped with either a digital digital indicator or a Sylvac measuring probe. Robust cast iron construction.2 ergonomic levers for moving the movable axis with ball-bearing guide. Compatible with Sylvac Ø 1.5 mm and Cary type anvils. Supplied with hard metal measuring anvils Ø 1.5 mm. Adjustable measuring force 0.3-1.0 N. Measuring capacity 20 mm, measuring range 10 mm. Wide choice of measuring anvils and support tables
