Sylvac
30-808-1231 PS16 Digital Measuring Bench Table Horizonal, Meassuring Range 25mm, Resolution 0.0001mm
SKU:Code: 30-808-1231
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.

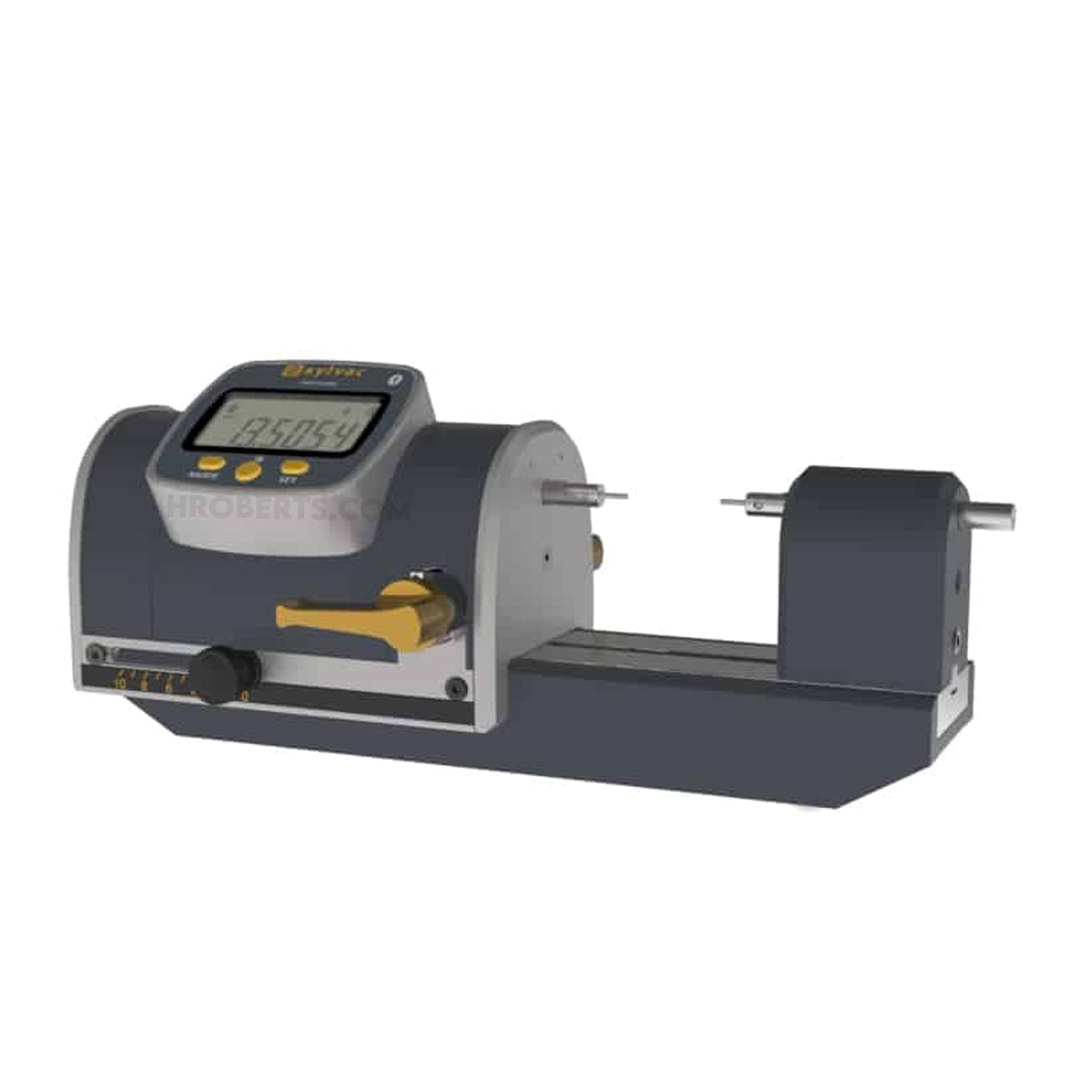

Precision horizontal measuring bench for the measurement of external dimensions. Robust cast iron construction. New design with integrated Bluetooth® system. Large display resolution 0.0001 mm (0.1 μm) with tolerance status indication by colour LEDs. Three buttons, including the central button with selectable favourite function. 2 ergonomic, position-adjustable levers for moving the movable axis with ball bearing guide. The position of the levers can be used to adjust the backward movement of the mobile axis. Compatible with Sylvac Ø 1.5 mm and Cary type anvils. Supplied with hard metal measuring anvils Ø 1.5 mm. Adjustable measuring force 0.1-0.6 N. Measuring range 25mm. Additional data outputs Power and Proximity. Protection class IP67
