Sylvac

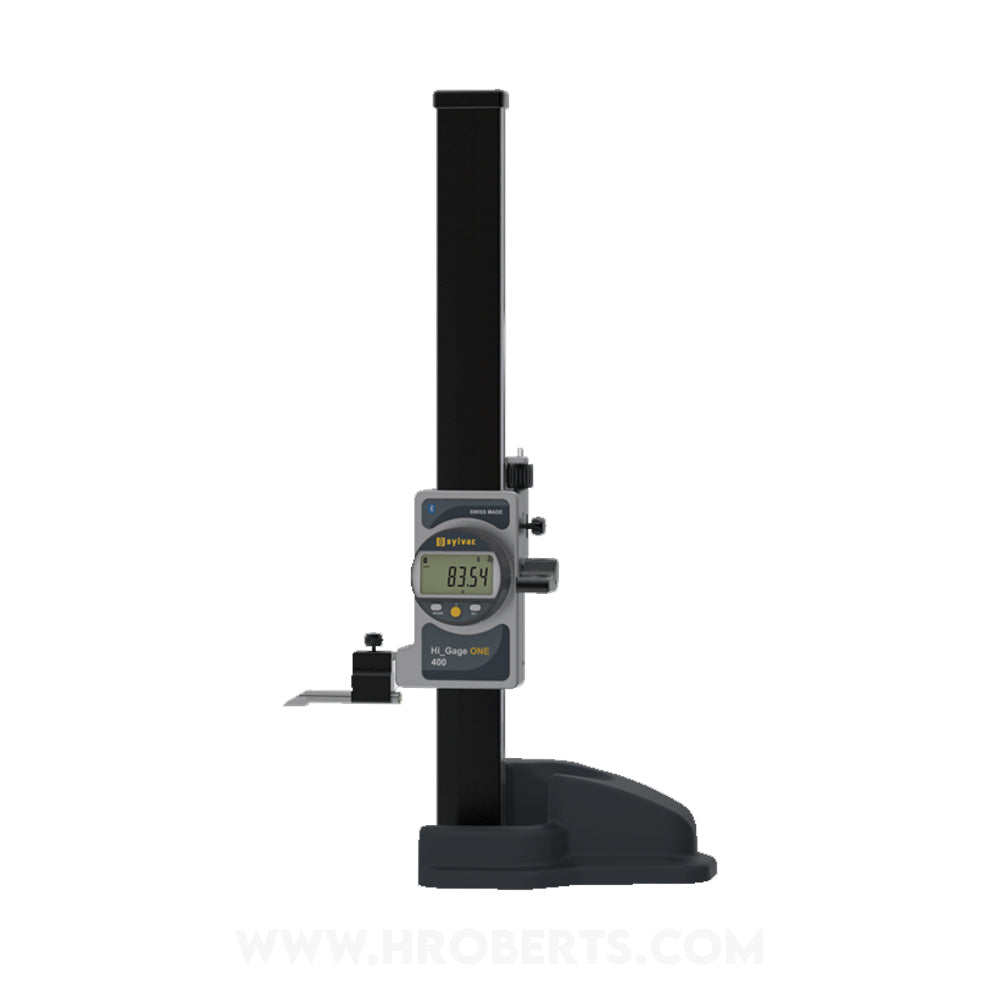

30-840-0406 Digital Height Gauge, Range 0-400mm, Resolution 0.01mm
SKU:Code: 30-840-0406
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Scribing
- range 0-400mm
- display type Digital
- resolution 0.01mm
- data output Yes
- measuring units Metric
- max permissible errors 40µm
- repeatability 10µm
- fine and coarse height adjustment Yes
Measuring and tracing column with integrated Bluetooth® system, Ergonomic cast iron base for good sitting posture, Self-locking rapid transfer system and fine adjustment screws, New, very robust double guide system, Case Ø 59.5 mm with display resolution 0.01 mm, Three buttons, including the central button with selectable favourite function, Wide range of functions, including MIN/MAX/DELTA, Possibility to enter the key constant for measuring diameters, Additional data outputs Power and Proximity, Measuring range 400 and 600 mm, Supplied with tracing probe, ball probe Ø 8 mm and clamping stem for lever indicator
