Sylvac

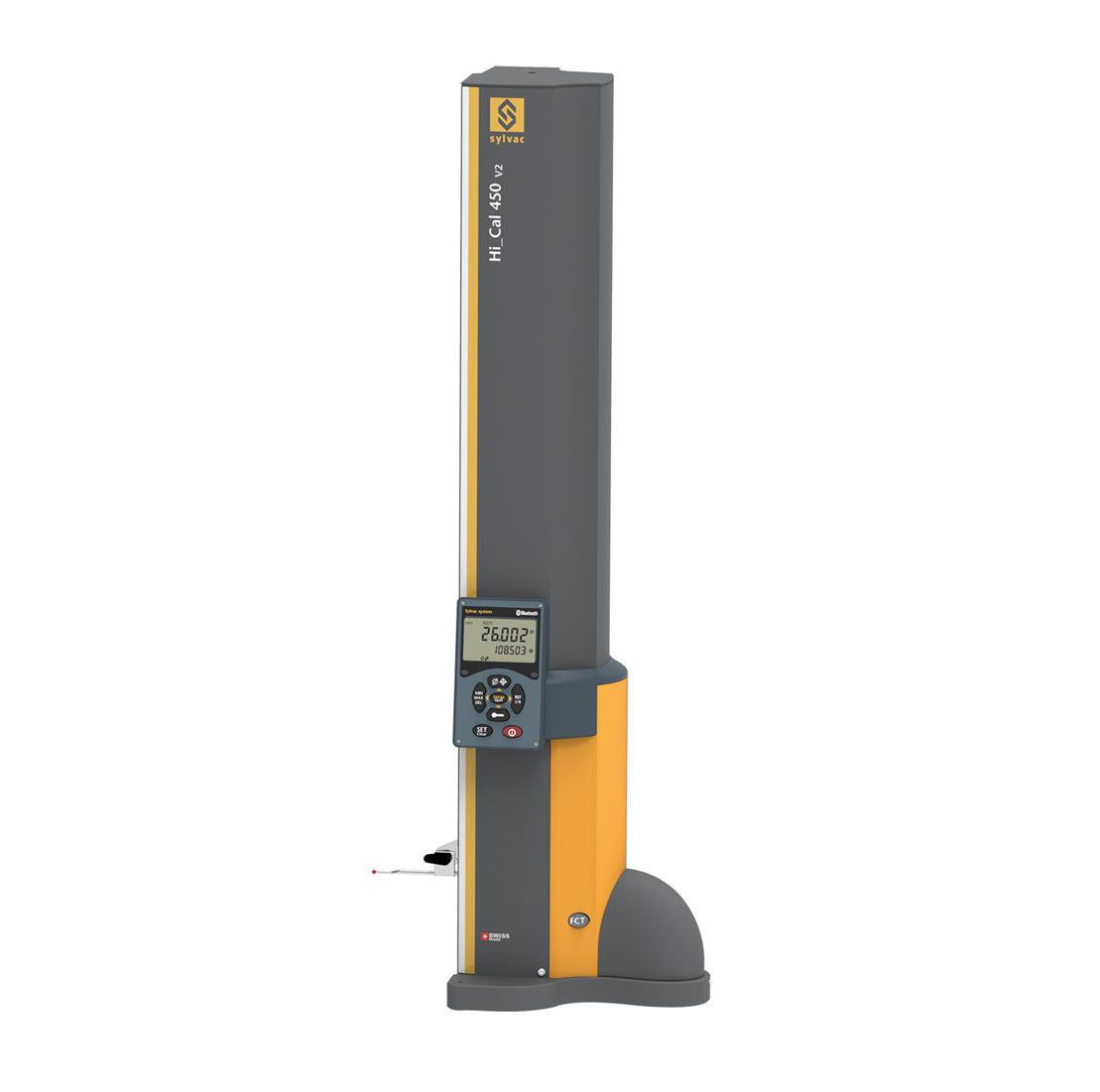

30-830-0456 Hi_Cal 0-450mm / 0-18" Height Gauge
SKU:Code: 30-830-0456
Sale
Sold out
Regular price
£4,010.18
Save: 3%
Sold out
Sale price
£4,010.18
Regular price
£4,113.00
Excl. VAT
Motorised, high accuracy height gauge with a small foot print for small applications
The Sylvac Hi_Cal Digital Motorised Height Gauge is perfect for a variety of measuring tasks including step heights, internal/external diameters and centre-line distances.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Measuring
- range 0-450mm / 0-18"
- display type Digital
- resolution 0.001mm / 0.00005"
- data output Yes
- measuring force 0.25-0.35N
- measuring units Metric / Imperial
- mass 4.7Kg
- mass 6.8Kg
description
description
- Precision Measuring Made Easy: Measure various geometries with ease thanks to our intuitive motorized displacement paddle and simplified guidance system.
- Seamless data acquisition: The device features data outputs for PROXIMITY, POWER, and Bluetooth® that make it easy to integrate into any setup. It also has an integrated Bluetooth® system that allows for wireless data transfer.
- Streamline your workflow : Benefit from our MIN/MAX/DELTA functions, selectable favorite function, and light and sound indication to validate the probing process.
- Maximum Accuracy : Our measuring system offers unmatched accuracy, with display resolutions of 0.01 / 0.001 / 0.0005mm, and measuring range of 150, 300, and 450 mm.
- Durability and Reliability: Our measuring system boasts a fixed clamping probe holder, interchangeable ruby tips, and automatic pre-positioning, ensuring reliable and fast measurements every time.
- Operator-Independent Measurements: Our system features extremely low and adjustable measuring force according to the probe, and the probe constant value is memorised even when switched off, ensuring operator-independent measurements every time.
