Tesa

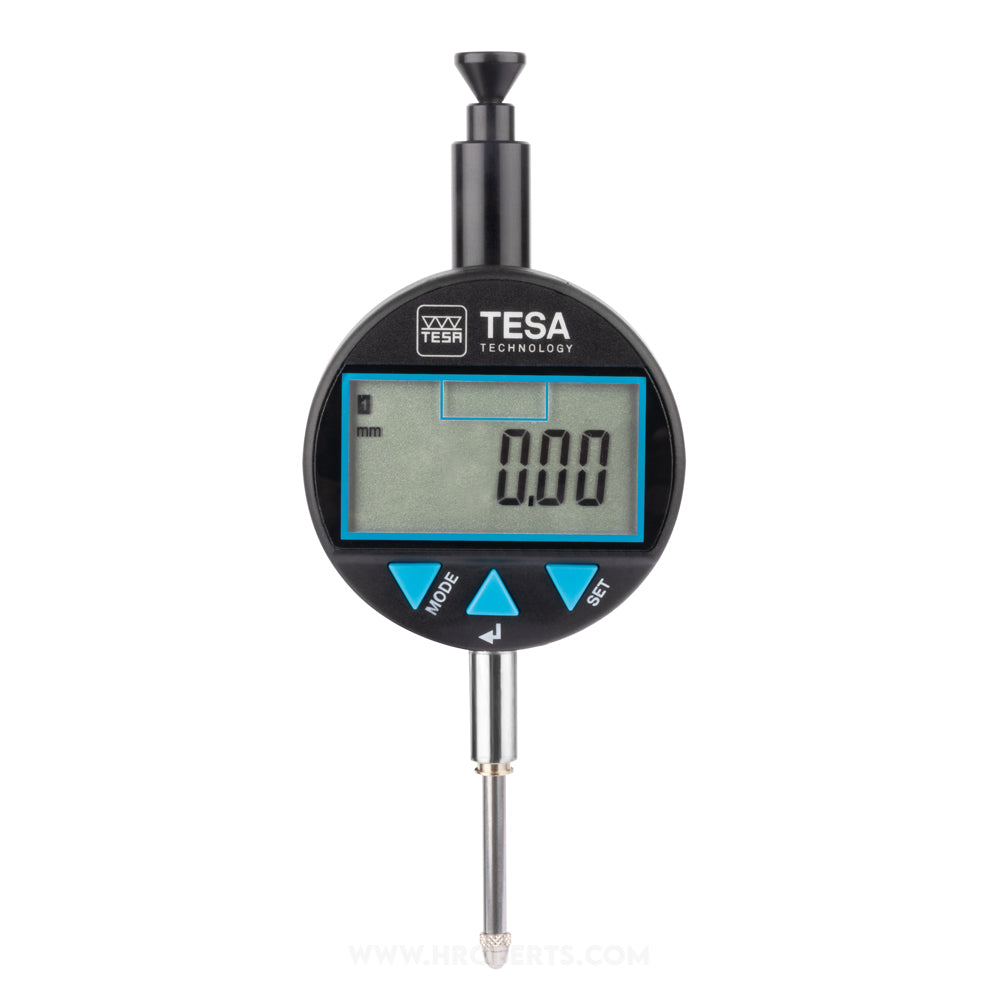

01930304 Dialtronic Digital Indicator, Range 25mm / 1", Resolution 0.01mm / 0.0005"

Code: TESA-01930304

Sale Sold out £500.80
Save: 20% Sold out £500.80 £626.00
Excl. VAT

Request a Quote

Add to Compare

FUNCTIONS - Switching of the counting direction - Automatic sleep mode - RS232 data output - PRESET mode - 2 storable references - MAX, MIN, MAX-MIN (TIR) - Change of resolution - Multiplication factor - Locking of the keys - Storage of the measured value - Reset of the value - Button for recall of PRESET value - Setting of tolerances

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • range 25mm / 1"
  • display type Digital
  • resolution 0.01mm / 0.0005"
  • bezel dia 60mm
  • ip rating IP54
  • measuring units Metric / Imperial
  • stem dia 8mm
  • contact point thread M2.5
  • back Flatback
description

The DIALTRONIC and DIALTRONIC EASY models complete the range of DIALTRONIC digital dial gages. These new models replace the former range to integrate new technical improvements in an ergonomic and intuitive design. The complete DIALTRONIC range covers all the needs of users. The operator can easily switch from standard features (EASY model) to advanced features, with a measuring range up to 150 mm. Traceability is guaranteed with a connection to the DATA VIEWER software. The tolerance results are displayed
by colored LEDs for clear and visible production control. Versions with IP67 bellows protection are also available for use in harsh environments.
