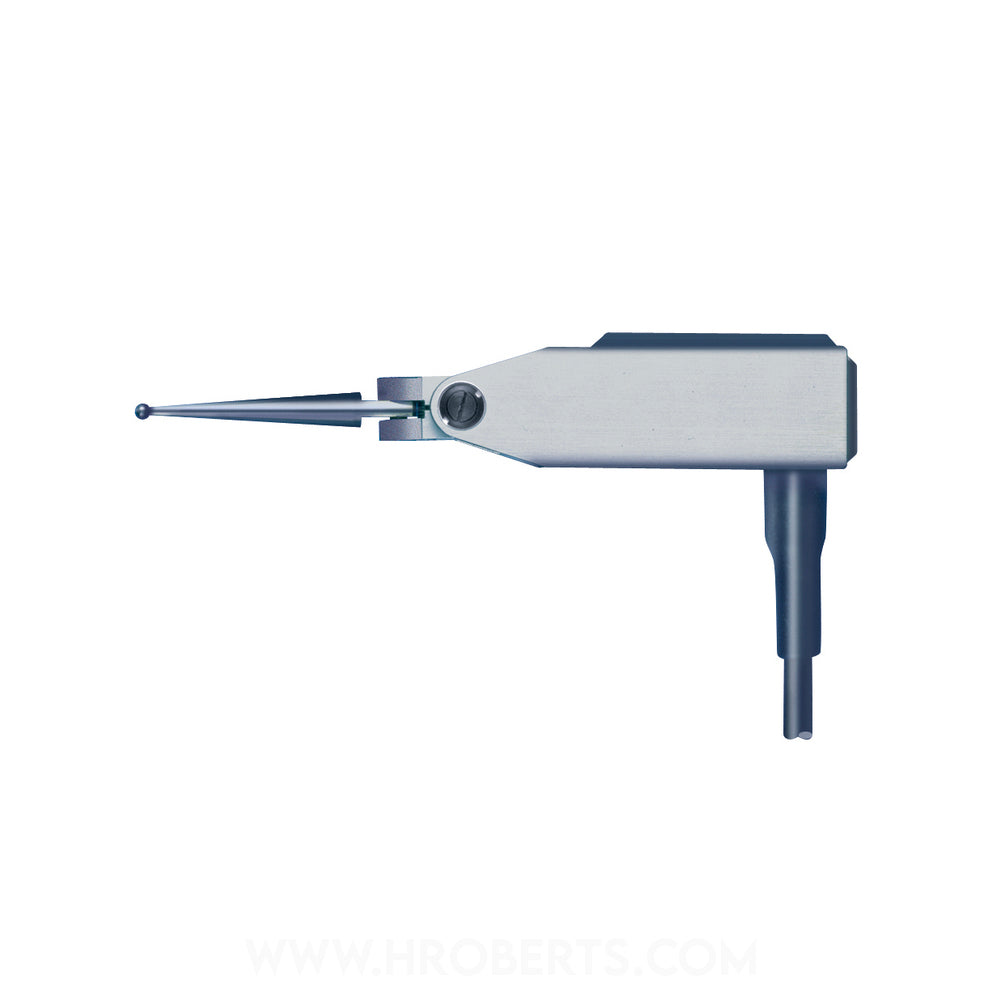

Tesa 03210801 GT31 Lever Transducer Probe, Measuring Range +/- 0.3mm, Nominal Measuring Force 0.02 N
SKU:Code: TESA-03210801
Sale
Sold out
Regular price
£672.80
Save: 20%
Sold out
Sale price
£672.80
Regular price
£841.00
Excl. VAT
Well suited for use where probes with axial movement measuring bolts are inconvenient for measurements. Inclinable lever for measuring in two directions. Balanced lever system on ball bearing. Interchangeable measuring inserts with carbide ball tip, inclinable through to 180 degrees. Automatic reversal of the probing direction while the indication remains unchanged. protected against shocks br 2 safety clutches. One piece housing provided with 2 dovetails. Level of protection: IP40 as per IEC 60529
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Lever Probe
- range +/- 0.3mm
- ip rating IP40
- travel 0.3mm
- brand Tesa
description
description
• PROBE
- Execution with inclinable lever
- Ball-bearing balanced lever
- One-piece housing provided with 2 dovetails
- Inclinable probe insert through to 180°.
• MEASUREMENT
- Well suited for use where probes with measuring bolt moving lengthwise can not be conveniently operated
- Inclinable probe insert for measuring in two directions
- Interchangeable probe insert
- Automatic reversal of the probing direction while that of the indication remains unchanged
- Protected against shocks by 2 safety clutches
