Images are for illustration purposes only - Products may differ.
Tesa

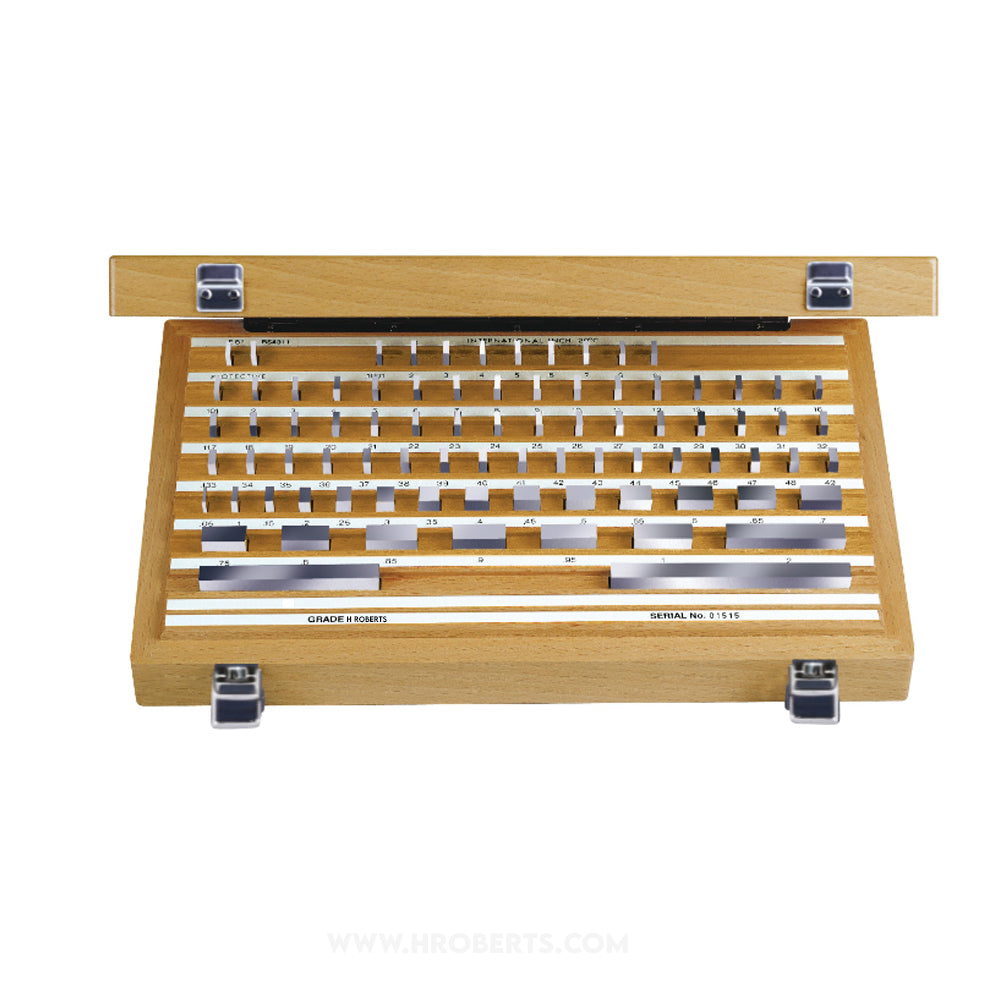

0651516012 Gauge Block Set, Metric M112, Grade K, Steel
SKU:Code: TESA-0651516012
Sale
Sold out
Regular price
£13,251.04
Save: 12%
Sold out
Sale price
£13,251.04
Regular price
£15,058.00
Excl. VAT
Gauge blocks are a system for producing precision lengths. The individual gauge block that has been precision ground and lapped to a specific thickness. Gauge blocks come in sets of blocks with a range of standard lengths. In use, the blocks are stacked to make up a desired length.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Gauge Block Set
- accuracy ISO3650
- material Steel
- measuring units Metric
- Includes Inspection Certificate
- grade K
- blocks per set 112
- set configuration 1.0005mm 1.001-1.0099mm by 0.001 step 1.01 1.49mm by step 0.01mm 0.5-24.5mm by 0.5 step 25-100mm by 25 step
description
description
They must me cleaned carefully after use, stored in a dry environment and be protected against corrosion
technical drawings
PDF downloads
accessories
